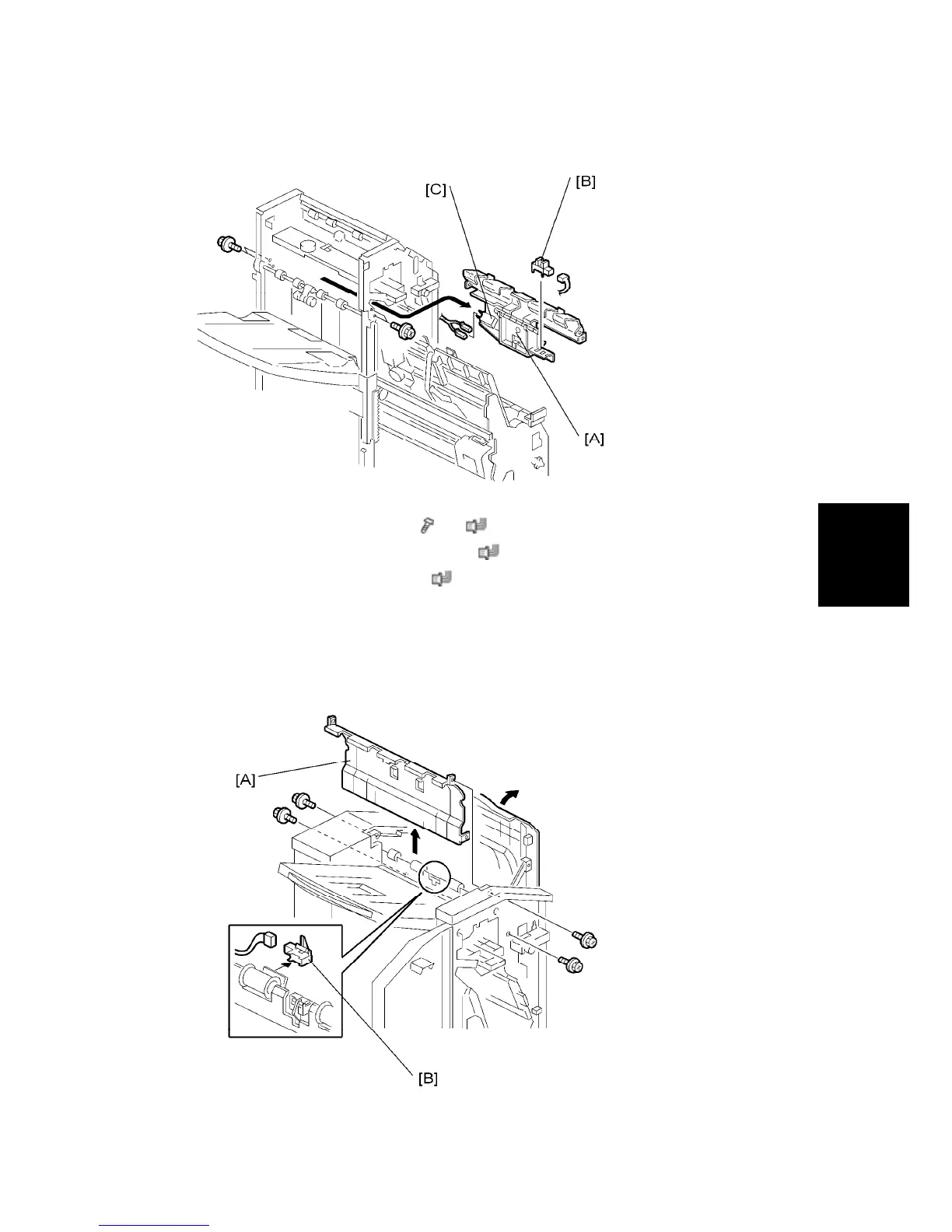

2. Remove the lower guide unit [A] (
x 4, x 2).
3. Remove the shift tray position sensor [B] (
x 1).
4. Remove the upper limit switch [C] (
x 2). (Pull it out from the assembly.)
1.2.3 PROOF TRAY EXIT / FULL SENSOR
1. Remove the front cover, rear cover and proof tray.
2. Open the upper cover.
