Chapter 6 Configure and Start the Kinetix 5500 Drive System
Fan/Pump Volts/Hertz Method

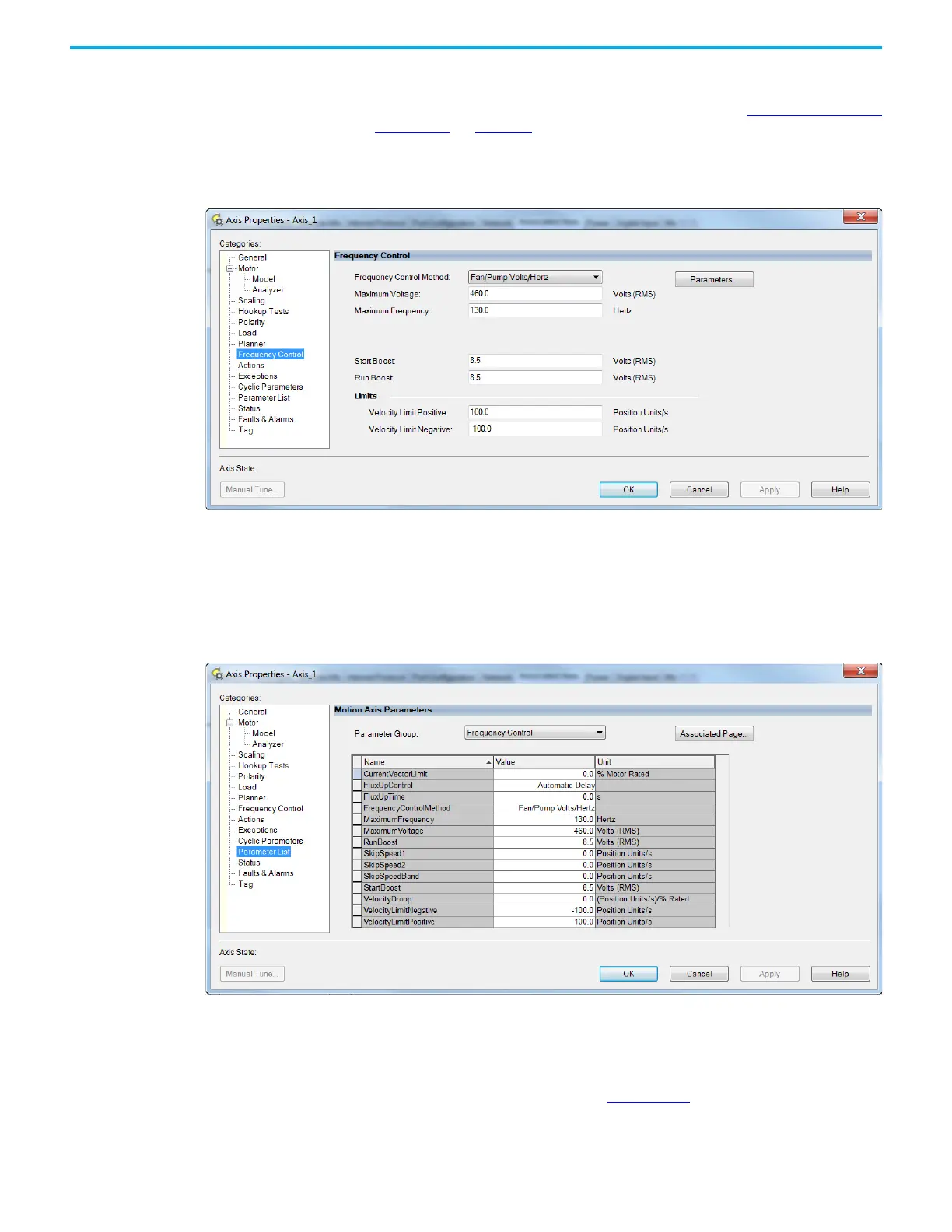

1. Configure the General tab and Motor tab as shown in General and Motor
Categories on page 121.
2. Select the Frequency Control category.
3. From the Frequency Control Method pull-down menu, select Fan/Pump
Volts/Hertz.
4. Enter the Basic Volts/Hertz attribute values appropriate for your
application.
Default values are shown.
5. Click Apply.
6. Select the Parameter List category.
The Motion Axis Parameters dialog box appears.
7. From the Parameter Group pull-down menu, choose Frequency Control.
8. Set the FluxUp, SkipSpeed, VelocityDroop, RunBoost,
MaximumFrequency, MaximumVoltage, and CurrentVectorLimit
attributes appropriate for your application.
See the corresponding section in Appendix D
for information and
configuration examples regarding all of these topics.
9. Click OK.
