146 Rockwell Automation Publication 2198-UM001M-EN-P - November 2022
Chapter 7 Troubleshoot the Kinetix 5500 Drive System

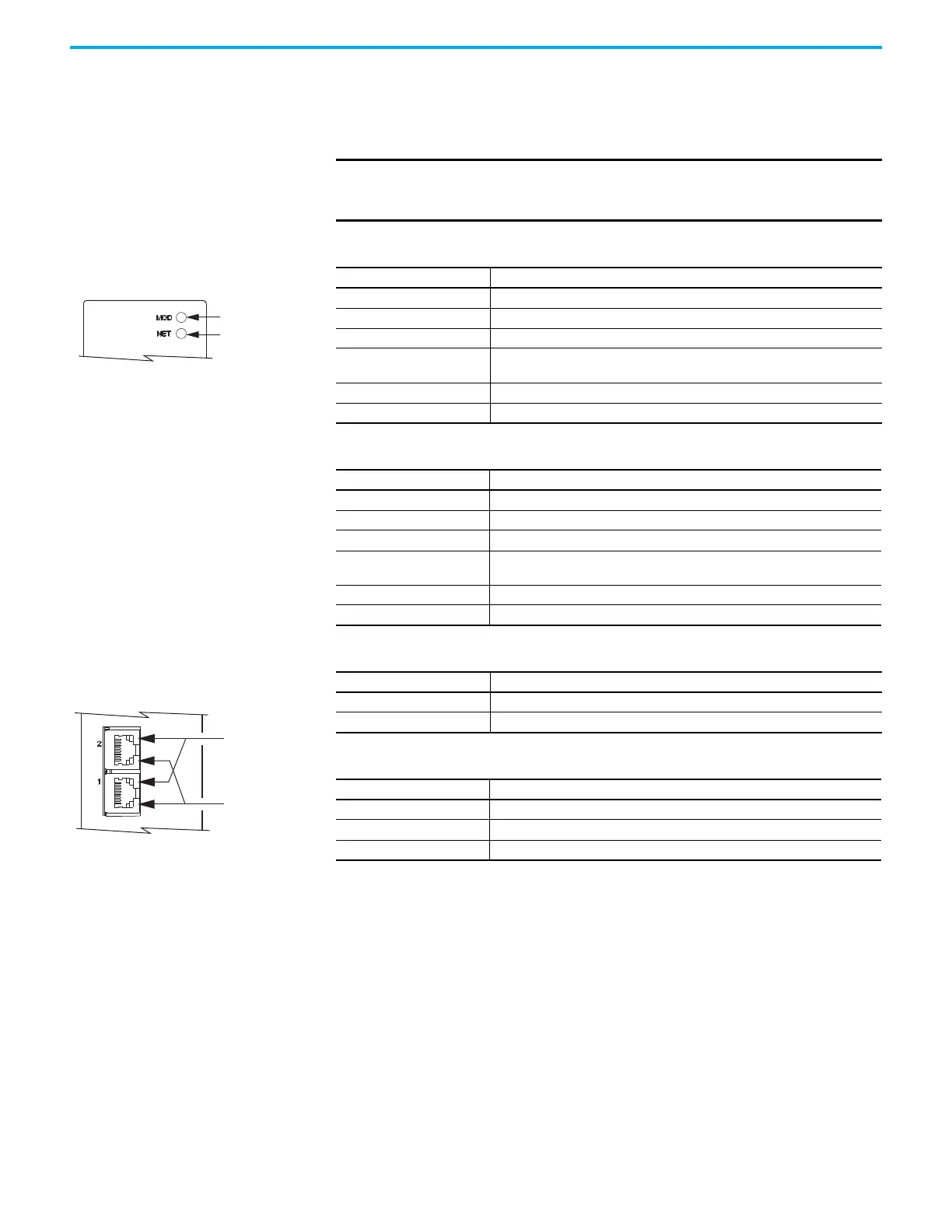

Kinetix 5500 Drive Status Indicators
The module status and network status indicators are just above the LCD status
display.
IMPORTANT Status indicators are not reliable for safety functions. Use them only for
general diagnostics during commissioning or troubleshooting. Do not
attempt to use status indicators to determine operational status.
Table 61 - Module Status Indicator
Condition Status
Steady Off No power is being applied to the drive.
Steady Green Drive is operational. No faults or failures.
Flashing Green Standby (drive not configured).
Flashing Red
Major recoverable fault. The drive detected a recoverable fault, for example, an
incorrect or inconsistent configuration.
Steady Red Major fault. The drive detected a nonrecoverable fault.
Flashing Green/Red Self-test. The drive performs self-test during powerup.
Table 62 - Network Status Indicator
Condition Status
Steady Off No power applied to the drive or IP address is not configured.
Flashing Green Drive connection is not established, but has obtained an IP address.
Steady Green Drive connection is established. Normal operation.
Flashing Red
Connection timeout. One or more of the connections, for which this drive is the
target, has timed out.
Steady Red Duplicate IP address. IP address specified is already in use.
Flashing Green/Red Self-test. The drive performs self-test during powerup.
Table 63 - Ethernet Link Speed Status Indicator
Condition Status
Steady Off 10 Mbit
Steady On 100 Mbit
Table 64 - Ethernet Link/Activity Status Indicator
Condition Status
Steady Off No link
Steady On Link established
Blinking Network activity
Module Status
Network Status
Kinetix 5500 Servo Drive
Link Speed
Status Indicators
Ethernet RJ45 Connectors
Link/Activity
Status Indicators
