226 Rockwell Automation Publication 2198-UM001M-EN-P - November 2022
Appendix D Motor Control Feature Support
Motor Category From the Motor category, you can enter motor nameplate or datasheet values
(phase-to-phase parameters) for rotary induction motors.
In this example, the Motor category > Nameplate / Datasheet parameters, were
taken from a typical motor performance datasheet. Max Speed and Peak
Current values are typically application-dependent.

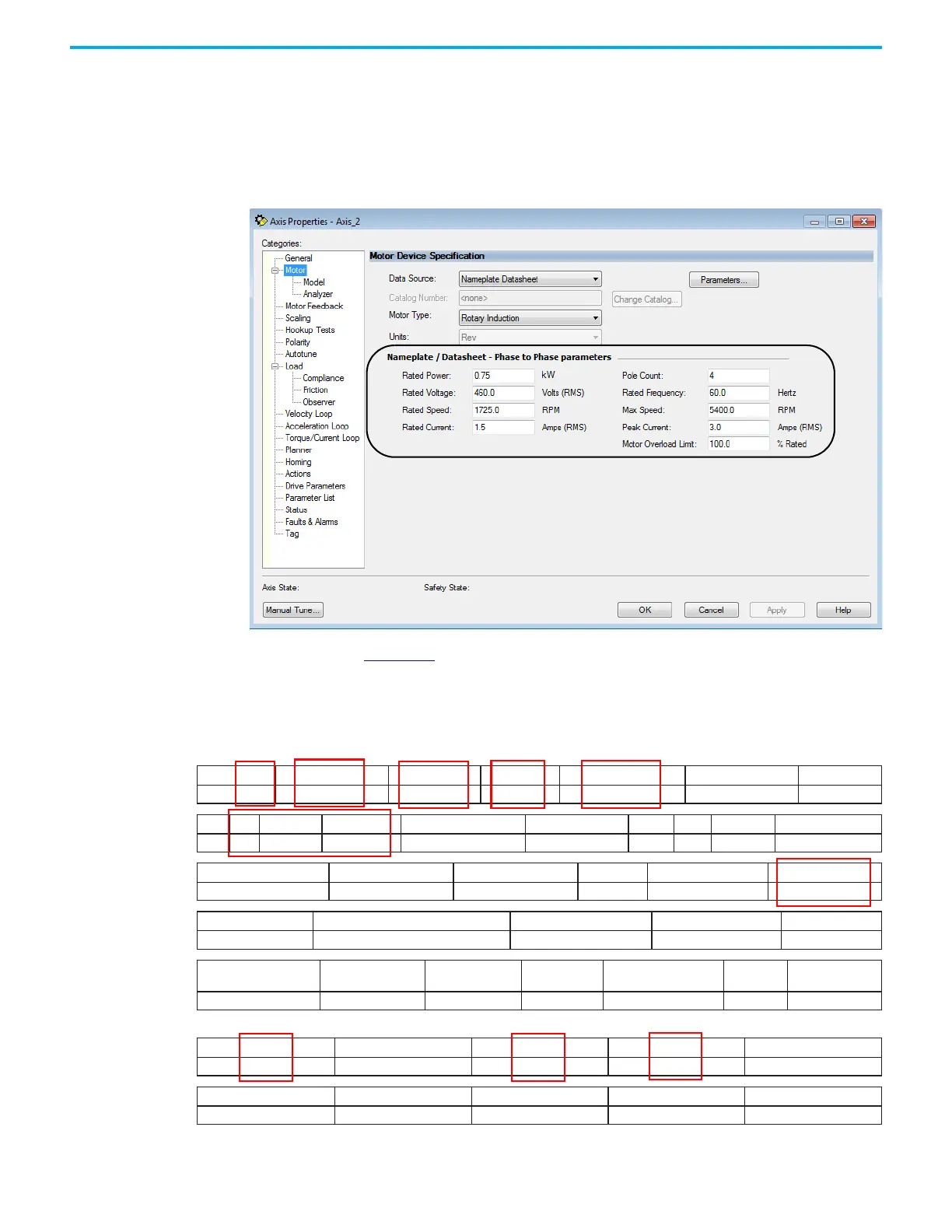

Figure 129 - Motor Nameplate / Datasheet Example
See Figure 130 for an example of a motor manufacturer performance data
sheet.
Figure 130 - Motor Manufacturer Performance Data Sheet Example
CERTIFICATION DATA SHEET
TYPICAL MOTOR PERFORMANCE DATA
HP kW SYNC. RPM F.L. RPM FRAME ENCLOSURE K VA CODE DESIGN
1 .75 1800 1725 56C T E NV P A
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F. AMB°C ELEVATION
3 60 230/ 3/ 1. 5 INV E R T E R ONL Y C ONT I NUOUS F 3 1.0 40 3300
FUL L L OAD E FF: 84 3/4 L OAD EFF: 82.5 1/2 L OAD E FF: 78.5
GTD. EFF ELEC. TYPE NO LOAD AMPS
FUL L L OAD PF: 75 3/4 L OAD PF: 65.5 1/2 L OAD PF: 51 81.5 SQ CAGE INV DUTY 2 / 1
F.L. TORQUE LOCK ED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
3 L B -F T 30 / 15 10. 8 L B -F T 360% 15 L B -F T 500% 65
SOUND PR ESSUR E
@ 3 FT.
SOUND POWER ROTOR WK ^2 MAX. WK ^2 SAFE STALL TIME
STAR TS /
HOUR
APPROX.
MOTOR WGT
62 dBA 72 dBA 0.11 L B-FT ^2 0 L B-FT ^2 0 SE C. 0 42 L BS.
EQUIVALENT WYE CKT.PARAMETERS (OHMS PER PHASE)
R1 R2 X1 X2 XM
8. 378 5.6232 10.7068 9.9116 278. 036
RM ZREF XR TD TD0
11132. 8 284 1. 7 0. 0071 0.136
460
