204 Rockwell Automation Publication 2198-UM001M-EN-P - November 2022
Appendix C Size Multi-axis Shared-bus Configurations
Shared AC/DC Configurations
In a shared AC/DC configuration, the first (leftmost) drive receives AC input
voltage. The shared-bus connection system extends the AC and DC bus to all
downstream drives:
• All drives are configured in the project file as Shared AC/DC drives.
• Drives must be of the same power rating (catalog number).
• Shared AC/DC configurations support Bulletin 2198 capacitor modules
• Total available converter power is derated by 30%.
• The maximum number of drives configured as Shared AC/DC is
described in Table 84
.

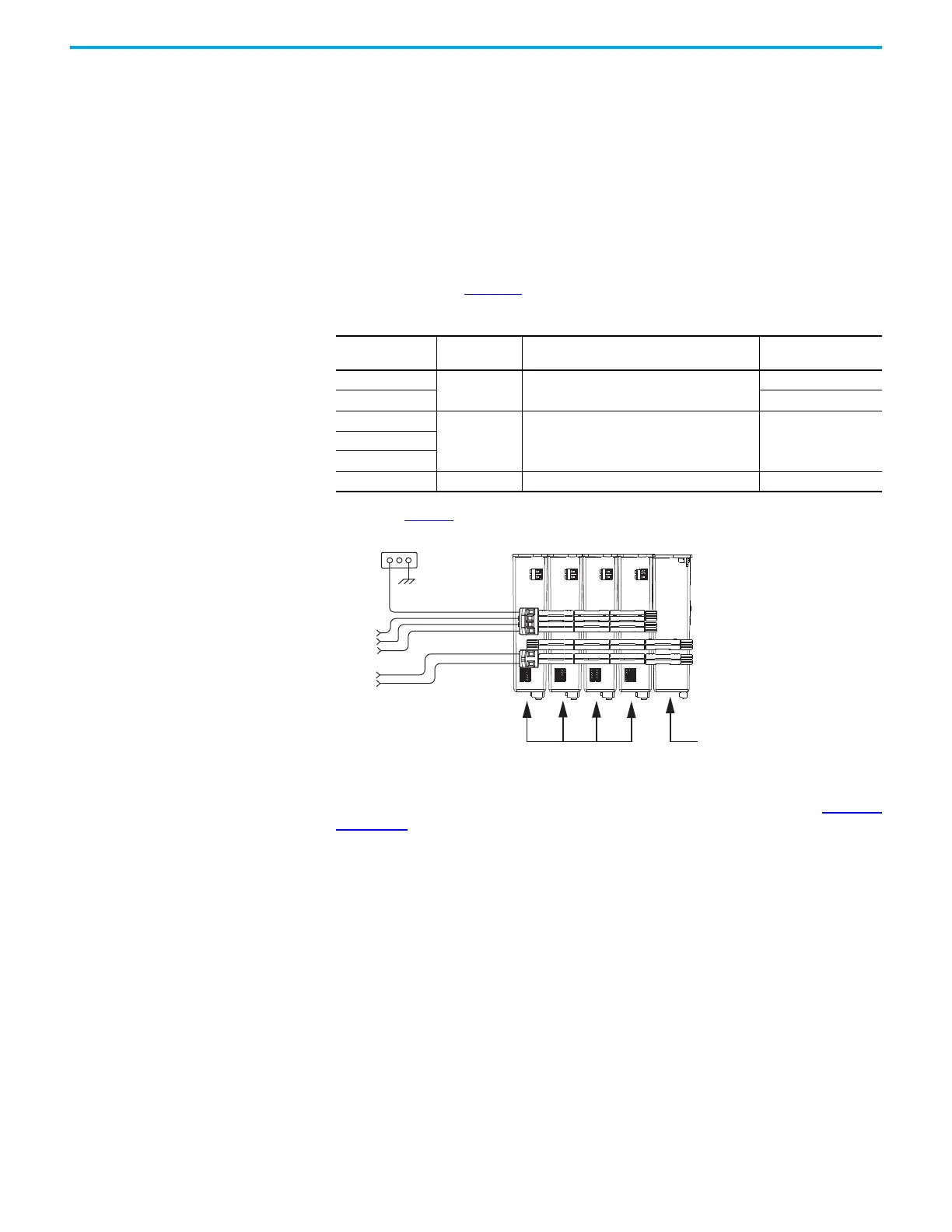

Figure 108 - Typical Shared AC/DC Configuration
For an example shared AC/DC installation with additional details, see Figure 3
on page 17.
Table 84 - Shared AC/DC Panel Layout
Drive Cat. No. Frame Size
Drives Configured as Shared AC/DC, Max
(1)
(1) For Bulletin 2198 capacitor module maximum values, refer to the Kinetix 5500 Capacitor Module Installation Instructions,
publication 2198-IN004.
Number of Capacitor
Modules, Max
2198-H003-ERSx
18
0
2198-H008-ERSx 1
2198-H015-ERSx
24 42198-H025-ERSx
2198-H040-ERSx
2198-H070-ERSx 32 4
Bonded Cabinet
Ground
Three-phase
Input Power
Kinetix 5500 Servo Drives
(top view)
24V Input
Control Power
DC Bus Connections
2198-CAPMOD-1300 Capacitor Module
(optional component)
To Next Page
