Precondition
You interconnect the signal of the sensor with the digital input of your choice.
Function description

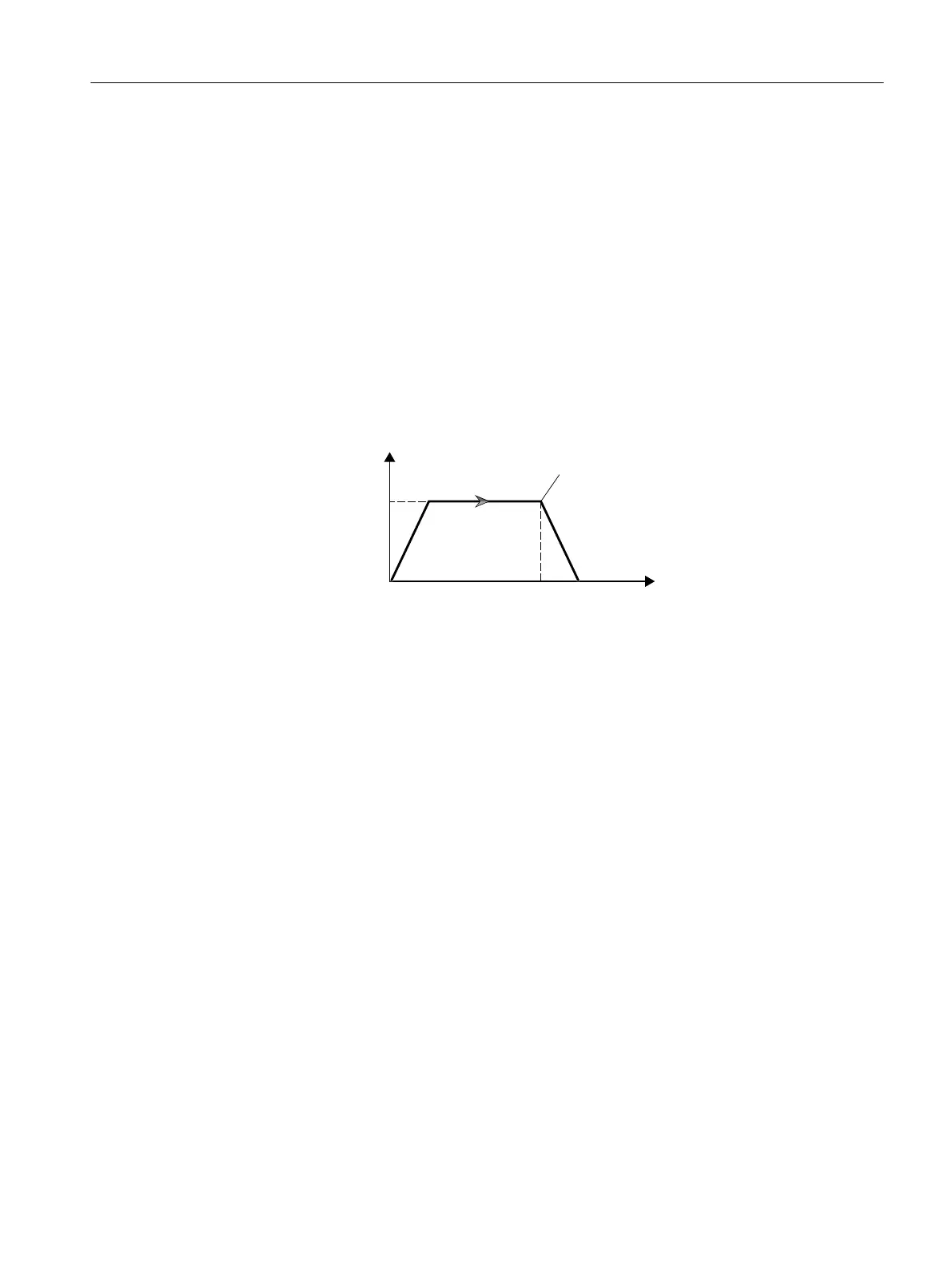

• With the ON command, the motor accelerates to its speed setpoint (p1070). The direction of
the movement depends on the setpoint inversion (p1113):
– p1113 = 0: positive direction
– p1113 = 1: negative direction
• The motor stops with OFF1 ramp when the stop sensor positive direction (p3384) is triggered
(level/edge triggered depending on p3394).
• Setting the sensor bypass signal (p3390) to 1 overrides the stop sensor signal p3384.
6SHHGVHWSRLQWS
6WRSVHQVRUSRVLWLYH
S
Q
Advanced commissioning
7.9Conveyor technology control functions (for G115D PROFINET and AS-i variants only)
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 187
