• The "Speed limitation" function protects the motor and the driven load against excessively
high speeds.
• The "Ramp-function generator" function prevents the setpoint from suddenly changing. As
a consequence, the motor accelerates and brakes with a reduced torque.



[
\
[
\
W
\\[[
,QKLELW
GLUHFWLRQRI
URWDWLRQ
,QYHUW
6NLSIUHTXHQF\
EDQGV
6HWSRLQWIRU
PRWRUFRQWURO
)URP
VHWSRLQW
VRXUFH
6SHHG
OLPLWDWLRQ
5DPS
IXQFWLRQ
JHQHUDWRU

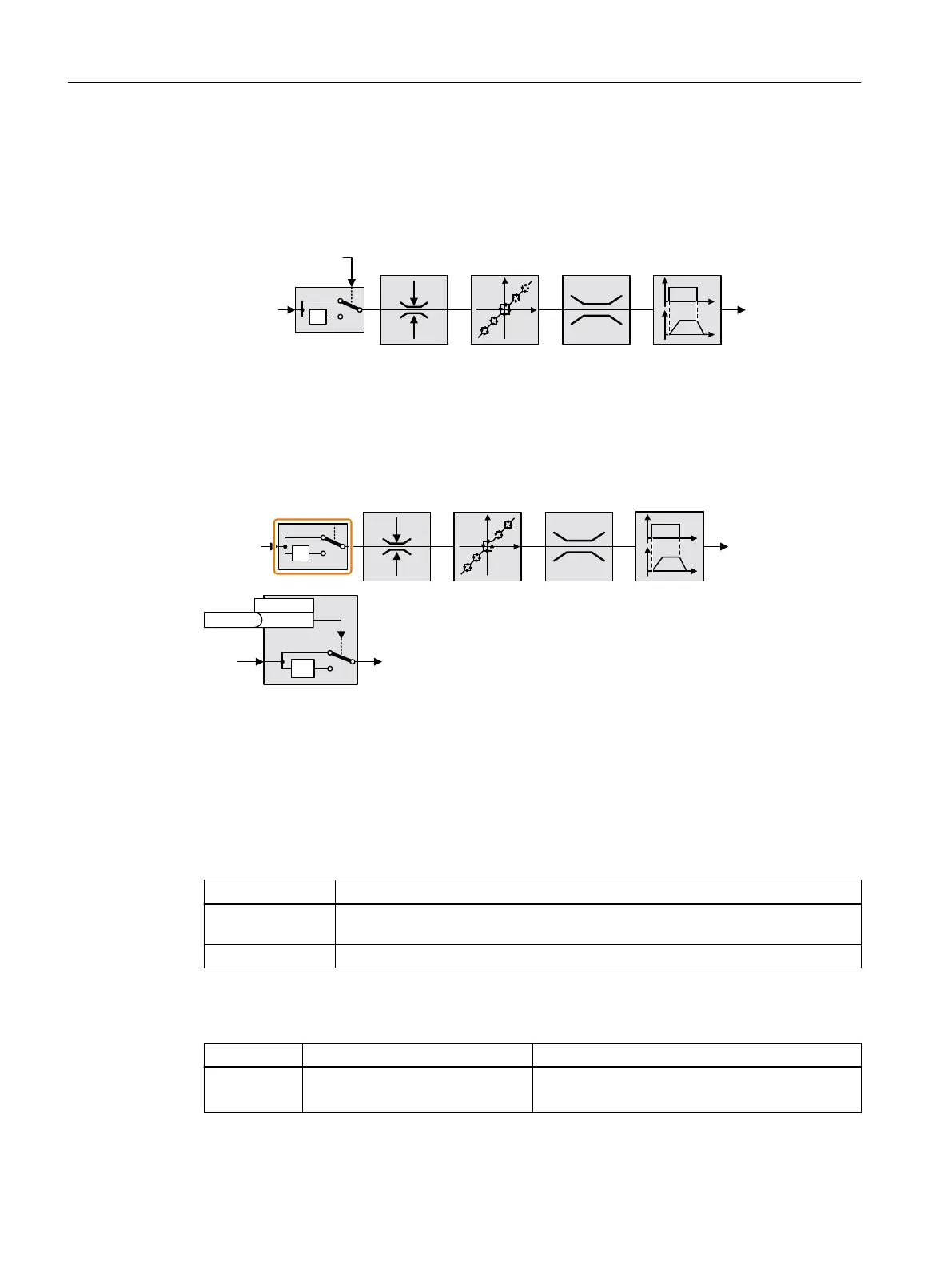

7.18.2 Invert setpoint
Function description



S



[
\
[
\
W
\\[[

The function inverts the sign of the setpoint using a binary signal.
Example
To invert the setpoint via an external signal, interconnect parameter p1113 with a binary signal
of your choice.
Table 7-6 Application examples showing how a setpoint is inverted
Parameter Description
p1113 = 722.1 Digital input1 = 0: Setpoint remains unchanged.
Digital input1 = 1: Converter inverts the setpoint.
p1113 = 2090.11 Inverts the setpoint via the 󹪝eldbus (control word 1, bit11).
Parameters
Parameter Description Setting
p1113[0…n] BI: Setpoint inversion Sets the signal source to invert the setpoint.
Factory setting: dependent upon the converter
Advanced commissioning
7.18Setpoint processing
SINAMICS G115D Wall Mounted distributed drive
266 Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA
