Procedure

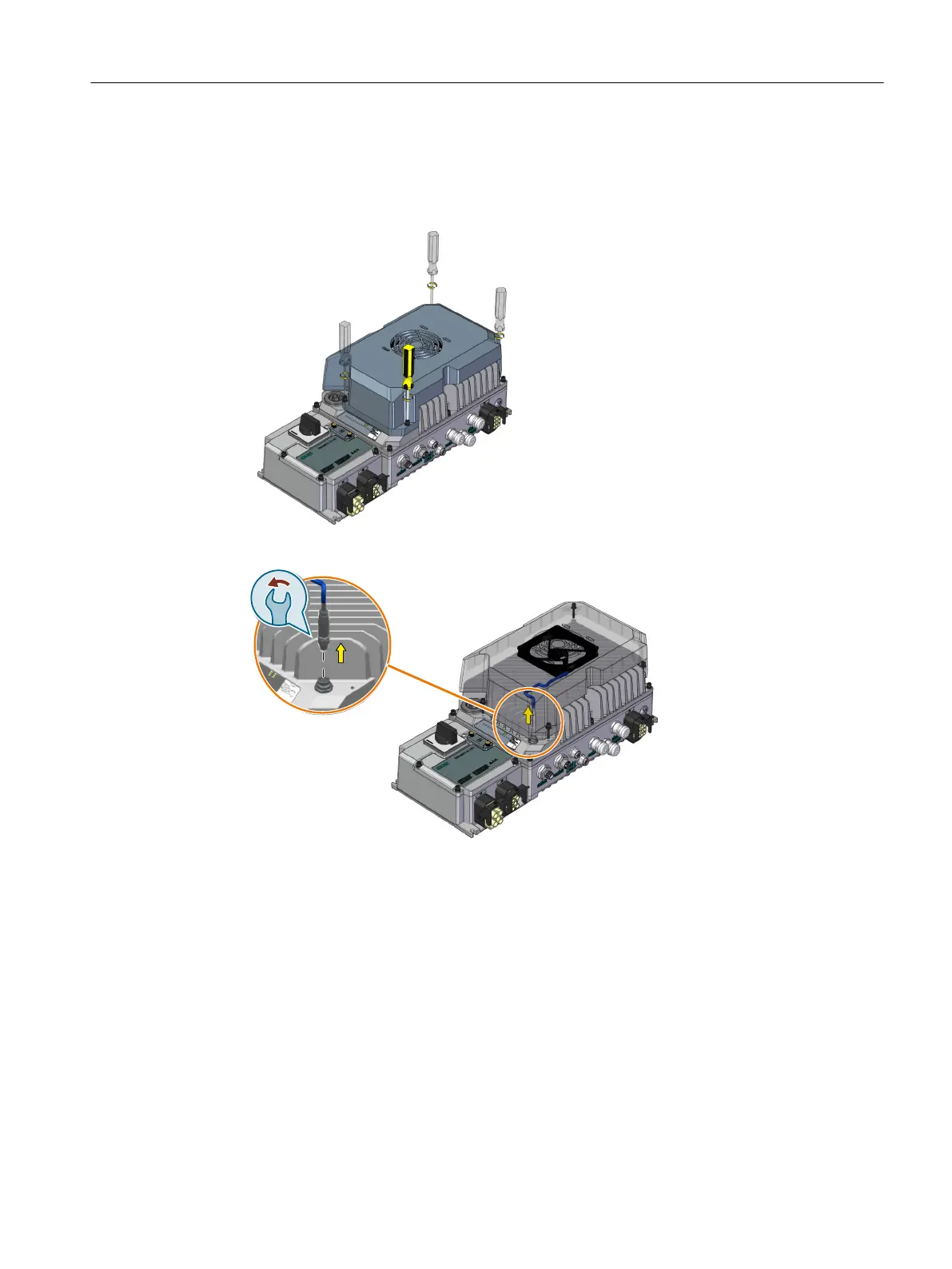

1. Switch o all power supplies (line supply and external 24 V power supply) to the converter.
2. Release the 4 retaining screws on the fan cover.
3. Release the M8 connector on the Electronic Module.
Corrective maintenance
10.3Replacing the spare parts
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 397
