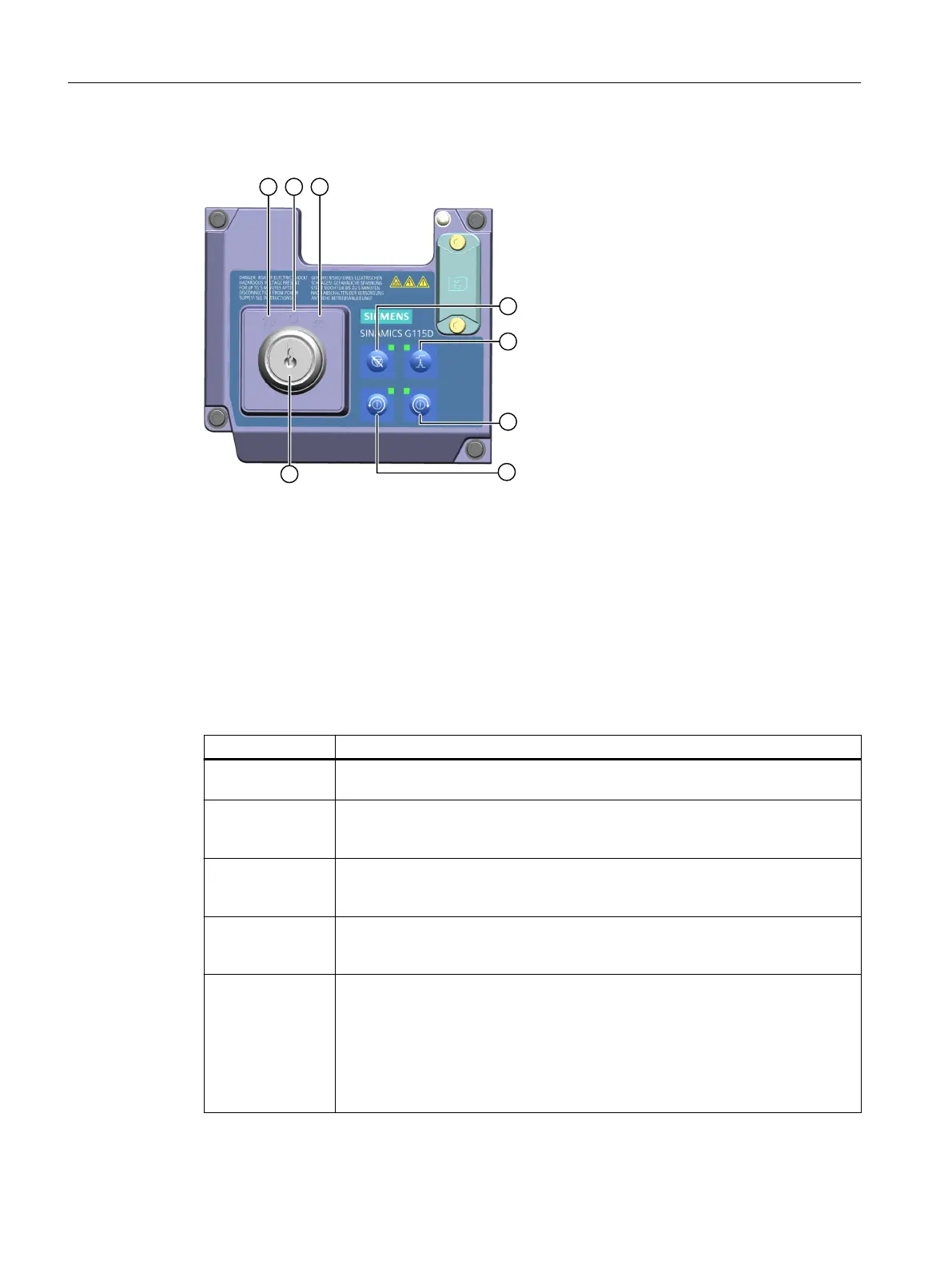

The layout of the local/remote control panel is shown in the gure below.
① Remote control mode ⑤ Inching/continuous
1)
② O/fault reset ⑥ Jog right
1)
③ Local control mode ⑦ Jog left
1)
④ Quick stop override
1)
⑧ Keyswitch
2)
1)
Only eective in local control mode. When the buttons are pressed, the corresponding LEDs light up.
2)
Key number: SB30
Function description
The functions of the various buttons and keyswitch positions are given in the table below.
Key/button Description
Remote If the converter is controlled via macro settings, Startdrive or G120 Smart Access,
the key must be switched to the remote position.
O/fault reset When the key is switched to the o position, the converter will be in standby with
pulses disabled and will ignore any command source inputs. As the keyswitch is
moved from this position a fault reset will occur.
Local When the key is switched to the local position, the converter ignores the command
source and setpoint source from macro settings, Startdrive or G120 Smart Access.
The converter only reacts to the local buttons on the LRC panel.
Quick stop override The quick stop function enables the converter to react to sensors on a conveyor
segment when items move past the sensor. The quick stop override button disables
the converters reaction to the sensor signals.
Inching/continu‐
ous
This button toggles between inching and continuous movement of the motor. The
movement of the motor is determined by the values set in parameters p1058 and
p1059.
Inching: Press and hold the Jog button to run the motor, and release the button to
stop the motor.
Continuous: Press the Jog button to run the motor, and press the Jog button again
to stop the motor.
Corrective maintenance
10.5Local/Remote control panel
SINAMICS G115D Wall Mounted distributed drive
400 Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA
