Performance and operation with reduced clearance distances require veri󹪝cation in the
individual application.

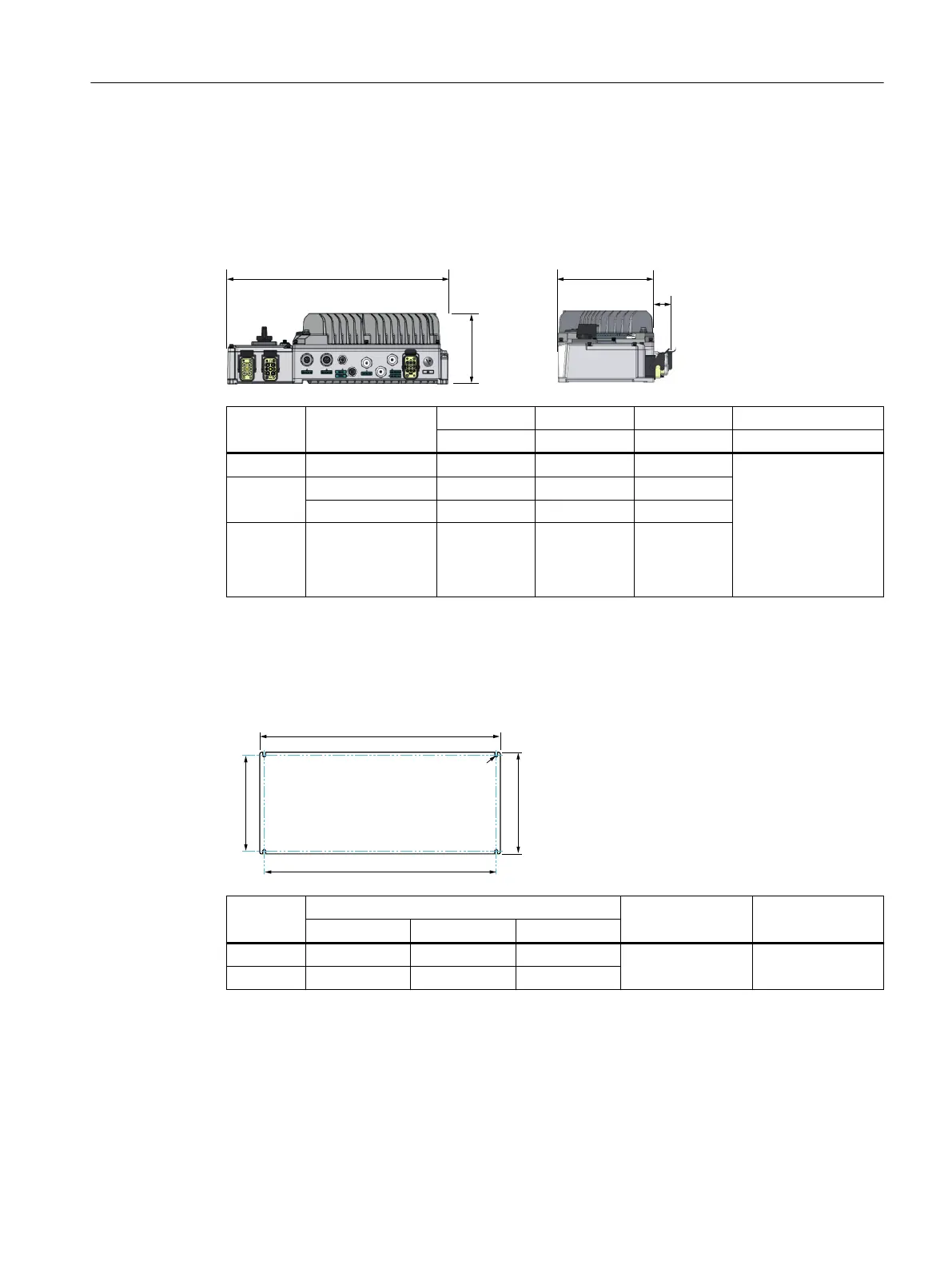

Mounting dimensions
All dimensions are speci󹪝ed in millimeters (inches).
'
:
+
&
Frame
size
Rated power Width Height Depth Additional height
1)
W H D C
FSA 0.37kWto1.5kW 380 (15.0) 156 (6.1) 129 (5.1) Connector variant:
+30 (1.18)
Glanded variant and
Q8/0 variant:
+30 (1.18)
Converter with
24VPSU: +60 (2.36)
FSB

2.2 kWto3 kW 425 (16.7) 180 (7.1) 134 (5.3)
4 kW 425 (16.7) 180 (7.1) 169 (6.7)
2)
FSC 5.5 kWto7.5 kW 425 (16.7) 180 (7.1) 169 (6.7)
2)
1)
The glanded variant of the converter provides no cable gland when delivered. The dimension data of
glanded variant applies to the converter installed with the optional glanded installation kit.
2)
For FSB (4 kW) and FSC, the depth D includes the depth of the integrated fan.
Drill patterns

+
&
:
&
Frame
size
Drilling dimensions - mm (in) Fixings Tightening tor‐
que
C1 C2 Ø
FSA 145 (5.7) 364.5 (14.4) 5.5 (0.2) 4 × M5 bolts, wash‐
ers, nuts
2.5Nm
(22.1lbf.in)
FSB/FSC 168 (6.6) 410 (16.1) 5.5 (0.2)
Mounting the motor
The SINAMICS G115D wall-mounted converter supports SIMOGEAR geared motors, SIMOTICS
motors, or third-party motors.
Mounting
4.1Mounting the G115D Wall Mounted drive
SINAMICS G115D Wall Mounted distributed drive
Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA 41
