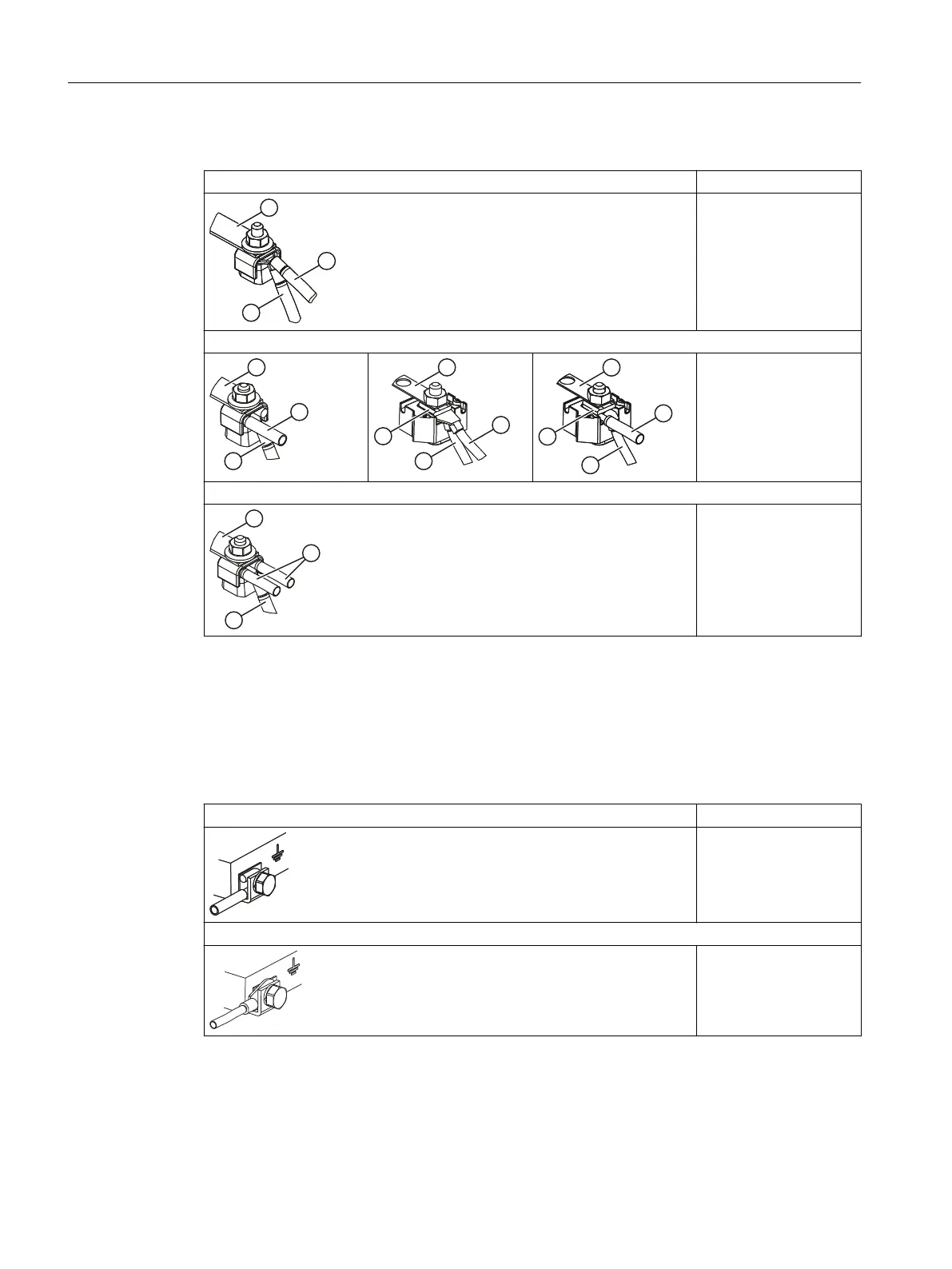

Type of conductor connection
Angle DIN cable lug down for connection. DIN46234 Conductor cross-section
... 25mm
2
Connection of an individual conductor with the terminal clamp.
... 10mm
2
Connecting 2 conductors with approximately the same thickness using a terminal clamp.
... 25mm
2
① Link rail
② Line connecting cable
③ Motor connecting cable
④ Cover washer
Grounding connection type
Connection of an individual conductor under the external grounding bracket. Conductor cross-section
... 10mm
2
Connect with the DIN cable lug under the external grounding bracket DIN46234.
... 25mm
2
Additional information on the SIMOGEAR geared motor
12.2Specic data motor
SINAMICS G115D Wall Mounted distributed drive
458 Operating Instructions, 07/2023, FW V4.7 SP14, A5E52808211A AA
