Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
138 01/2017

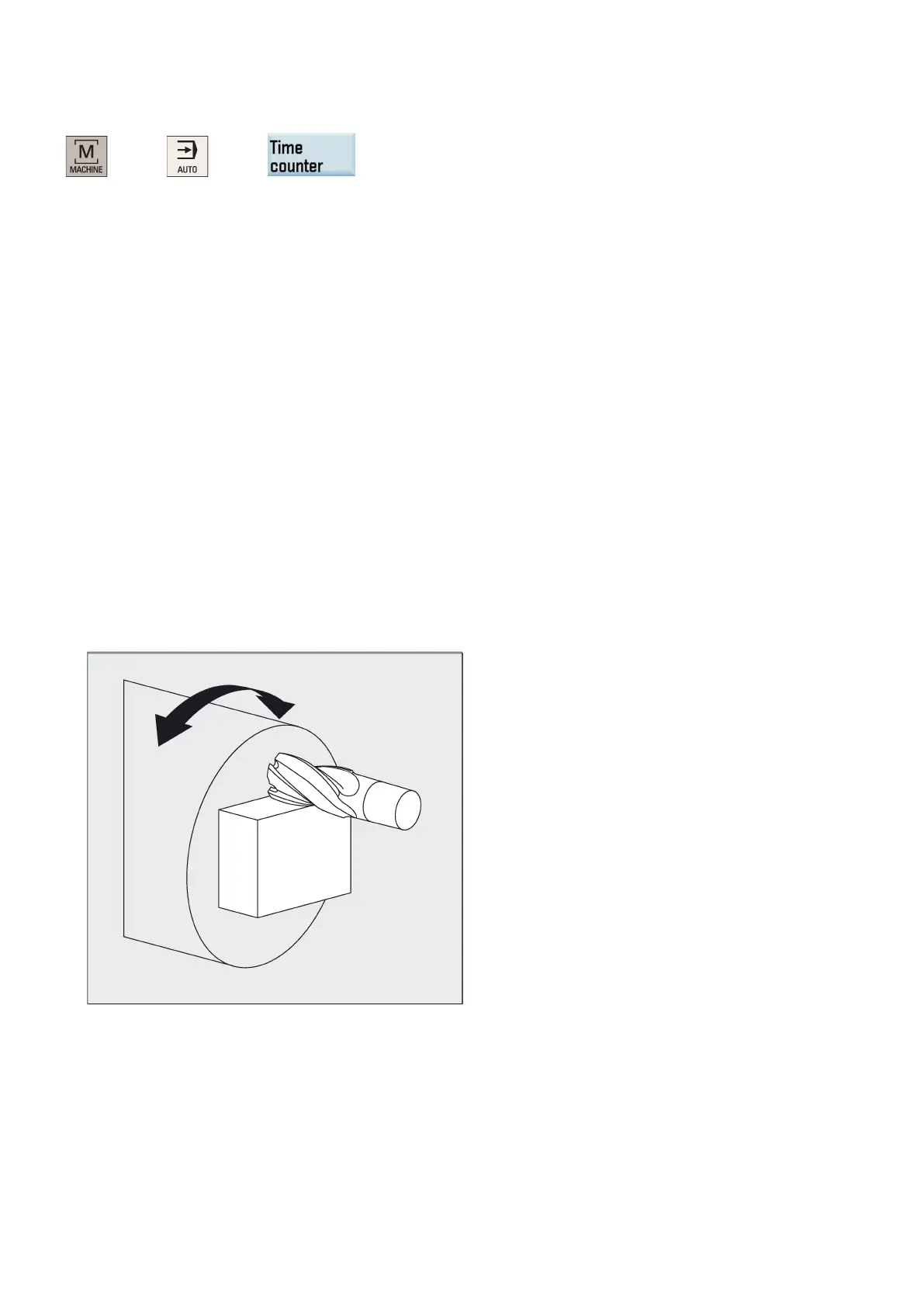

You can also select whether to activate the workpiece counter function through the following key operations:
→
→
11.18
Kinematic transformation
11.18.1
Face milling on turned parts (TRANSMIT)
Function
The TRANSMIT function enables the following:
● Face machining on turned parts in the turning clamp (drill-holes, contours).
● A cartesian coordinate system can be used to program these machining operations.
● The controller maps the programmed traversing movements of the Cartesian coordinate system onto the traversing
movements of real machine axes (standard situation):
– Rotary axis:
The main spindle functions here as the machine rotary axis.
– Infeed axis perpendicular to rotary axis
– Longitudinal axis parallel to rotary axis
– The linear axes are positioned perpendicular to one another.
● A tool center offset relative to the turning center is permitted.
● The velocity control makes allowance for the limits defined for the rotations.
● In addition to the tool length compensation, it is also possible to work with the tool radius compensation (G41, G42).
TRANSMIT transformation type
TRANSMIT in the standard case with (TRAFO_TYPE_n = 256)
Syntax
TRANSMIT
TRAFOOF
