Programming and Operating Manual (Turning)
84 01/2017

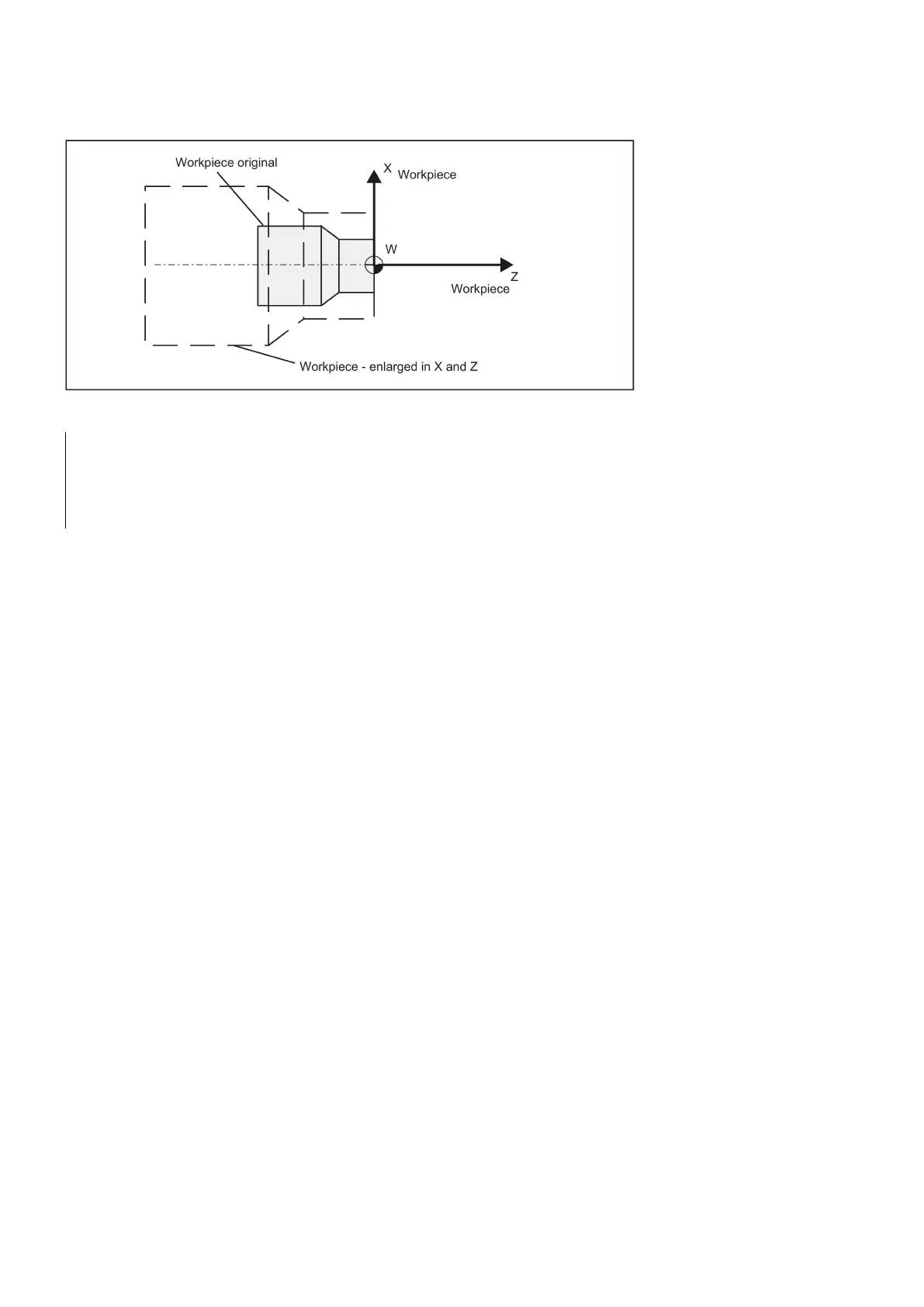

See the following example of a programmable scale factor:
Programming example
N10 L10
; Programmed contour original
N20 SCALE X2 Z2
; contour in X and Z enlarged 2 times
N30 L10
N40 ATRANS X2.5 Z1.8
N50 L10
N60 M30
Subroutine call - see Section "Subroutine technique (Page 131)".
Information
In addition to the programmable offset and the scale factor, the following functions exist:
● Programmable rotation ROT, AROT and
● programmable mirroring, MIRROR, AMIRROR.
These functions are primarily used in milling.
Examples of rotation and mirroring: see Section "List of instructions (Page 288)".
11.2.7
Workpiece coordinate system- settable work offset: G54 to G59, G500, G53, G153
Functionality
The adjustable work offset specifies the position of the workpiece zero on the machine (offset of the workpiece zero with
respect to the machine zero point). This offset is determined upon clamping of the workpiece into the machine and must be
entered in the corresponding data field by the operator. The value is activated by the program by selection from six possible
groupings: G54 to G59.
Programming
G54 to G59
; 1. to 6th settable work offset
G500
; Settable work offset OFF - modal
G53
; settable work offset OFF non-modal, also suppresses programmable offset
G153
; As with G53; additionally suppresses base frame
