Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
01/2017
81
11.2.5
Programmable work offset: TRANS, ATRANS
Functionality
The programmable work offset can be used:
● for recurring shapes/arrangements in various positions on the workpiece
● when selecting a new reference point for the dimensioning
● as a stock allowance when roughing
This results in the
current workpiece coordinate system
. The rewritten dimensions use this as a reference.
The offset is possible in all axes.
Note
In the X axis, the workpiece
zero should be in the turning center due to the functions of diameter programming (DIAMON)
and constant cutting speed (G96). For this reason, use no offset or only a small offset (e.g. as allowance) in the X axis.

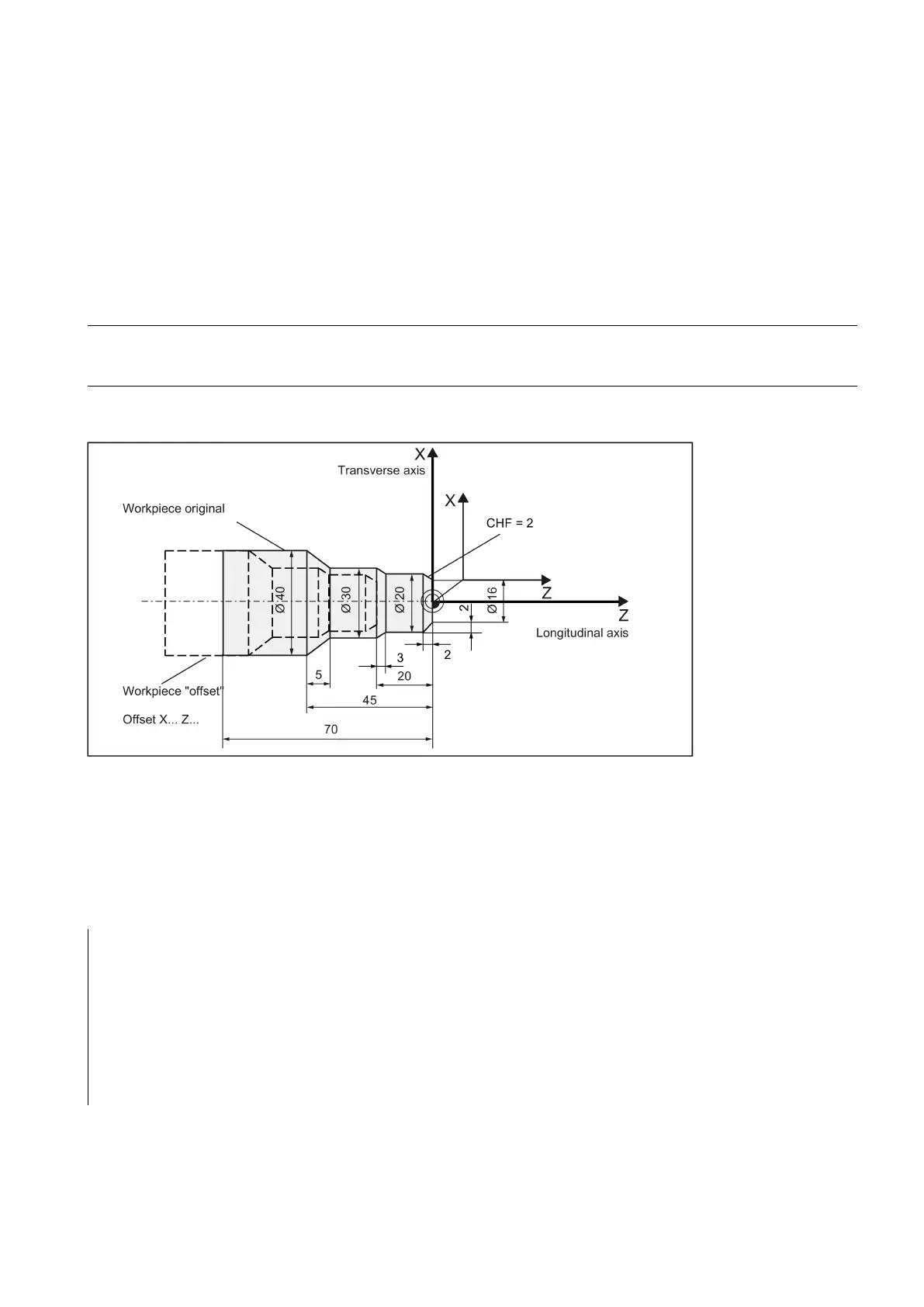

See the following effect of the programmable offset:
Programming
TRANS Z...
; programmable offset, deletes old instructions for offsetting, rotation, scaling factor, mirroring
ATRANS Z...
; programmable offset, additive to existing instructions
TRANS
; without values: clears old instructions for offset, rotation, scaling factor, mirroring
The instructions that contain TRANS or ATRANS each require a separate block.
Programming example 1
DIAMON
; Diameter dimensions active
TRANS Z-20
; Programmable offset, 5 mm in the Z axis
G1 X0 Z0 F0.2
; Traverse to diameter position X0 and Z0
X16
X20 Z-3
Z-17
X30 Z-20
Z-40
X40 Z-45
Z-70
M30
; End of program
Subroutine call: see Section "Subroutine technique (Page 131)".
