Programming and Operating Manual (Turning)
01/2017
203
N10 D3 T1 S300 M3 G95 F0.3
; Specification of technology values
; Selection of starting position

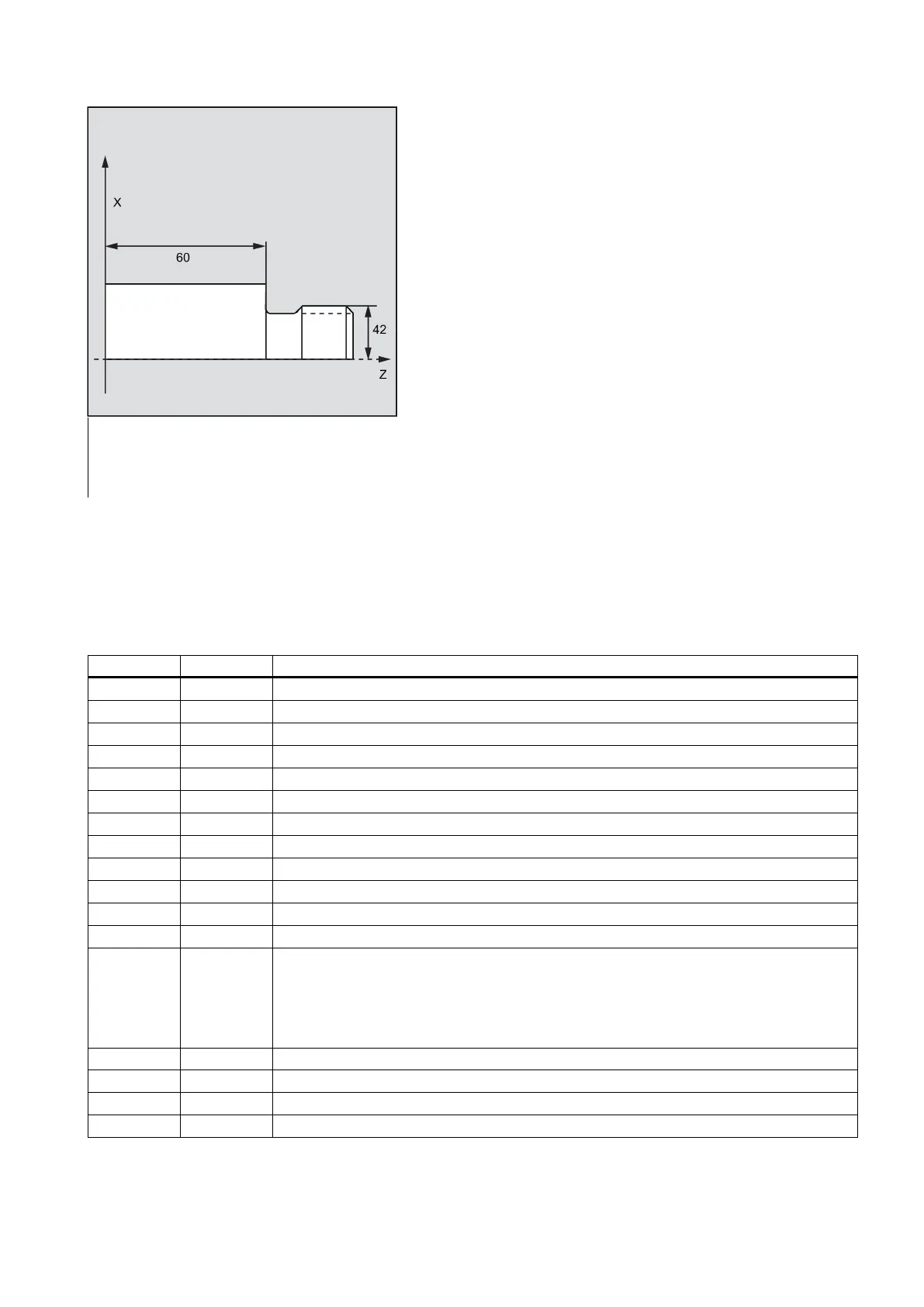

N30 CYCLE96 (42, 60, "A",)
Thread chaining - CYCLE98
Programming
CYCLE98 (PO1, DM1, PO2, DM2, PO3, DM3, PO4, DM4, APP, ROP, TDEP, FAL, IANG, NSP, NRC, NID, PP1, PP2, PP3,
VARI, NUMTH, _VRT)
Thread starting point in the longitudinal axis
Thread diameter at the starting point
First intermediate point in the longitudinal axis
Diameter at the first intermediate point
PO3 REAL Second intermediate point
Diameter at the second intermediate point
Thread end point in the longitudinal axis
Diameter at the end point
Run-in path (enter without sign)
Run-out path (enter without sign)
TDEP REAL Thread depth (enter without sign)
Finishing allowance (enter without sign)
IANG REAL Infeed angle
Range of values:
>0: Infeed along the rear flank
<0: Infeed along the front flank
=0: Infeed at a right angle to the cutting direction
Starting point offset for the first thread turn (enter without sign)
Number of roughing cuts (enter without sign)
Number of idle passes (enter without sign)
Thread lead 1 as a value (enter without sign)
