10.7.3
Executing/transferring through the RS232 interface (PPU160.2 only)
10.7.3.1
Configuring RS232 communication
Note
The RS232 interface is available on the PPU160.2 only.
Communication tool - SinuComPCIN
To enable the RS232 communication between a control system and a computer, you must have the RS232 communication
tool SinuComPCIN installed on your computer. This tool is available in the SINUMERIK 808D/SINUMERIK 808D
ADVANCED Toolbox.
RS232 communication settings

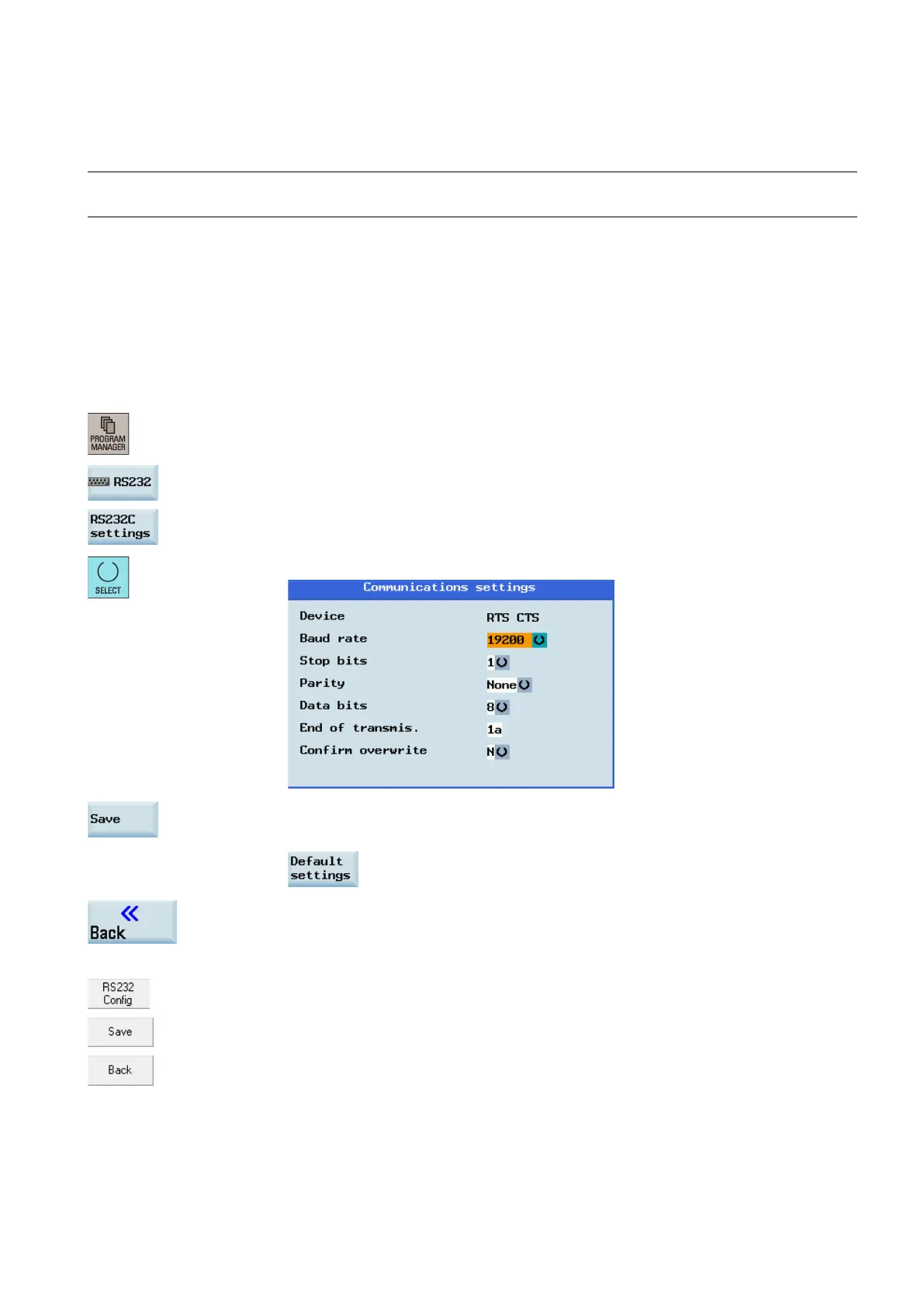

Proceed as follows to configure the communication settings for the RS232 interface:
1.
Connect the control system with the computer using an RS232 cable.
2.
Select the program management operating area.
3.
Press this softkey to go to the RS232 directory.
4.
Press this softkey to open the window for RS232 communication settings.
5.
Use this key to set the values in the following window as required:
6.
Press this softkey to save your settings. If desired, you can press the following softkey to
reset the settings to defaults:
7.
Return to the RS232 main screen.
8.
Start the SinuComPCIN on your computer.
9.
Press this button on the main screen and then select the desired baudrate from the list.
Note that this baudrate must be the same as that you have selected on the NC side.
10.
Save the s
ettings with this button.
11.
Return to the main
screen of SinuComPCIN.
