Programming and Operating Manual (Turning)
236 01/2017
Programming for roughing and finishing (Example 4)

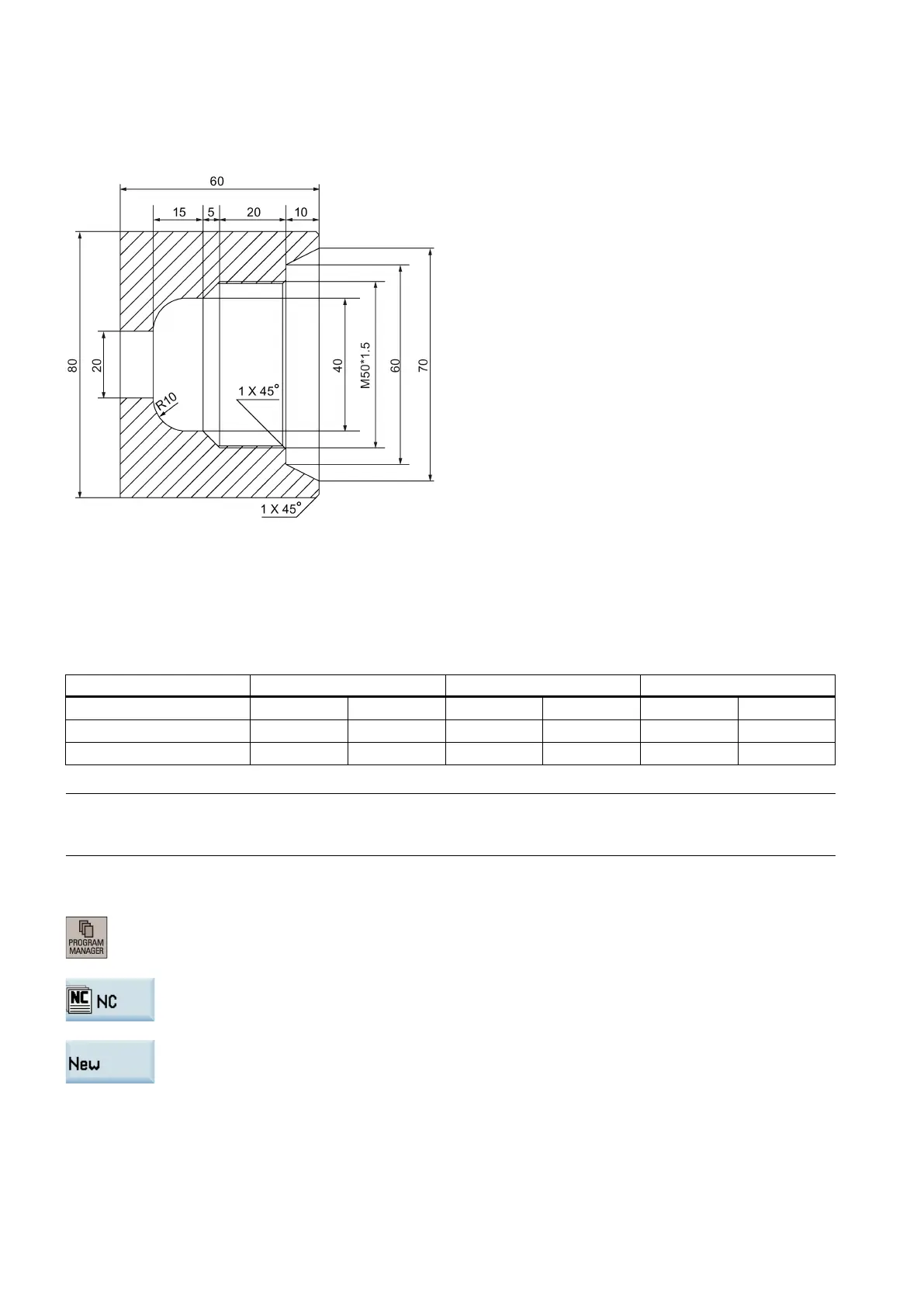

Workpiece drawing (unit: mm)
Blank material: aluminum bar
Blank diameter: 45 mm
Diameter of the bottom hole: 18 mm
Blank length: 150 mm (machining limit along the Z axis: Z-95; three-jaw chuck clamping length: 40 mm)
When programming in ISO mode, you need to set the H numbers of T1 and T2 to 1 and 2 respectively;
• Cut the workpiece manually after machining is over.
Operating sequence for programming in Siemens mode
Select the program management operating area.
Press this softkey to enter the system directory for storing part programs.
Press this softkey and enter the name of the new program.
To Next Page
