Programming and Operating Manual (Turning)
244 01/2017
Opens the program simulation window to check the programming results bef
ore machining
Recompiles the current cycle or contour selected with cursor by reopening the previous programming window
Executes the current program
Automatically assigns block numbers (Nxx) to all blocks
Opens the block search dialog box
serts a marker at the cursor position for copying/deleting the program blocks selected with the cursor
Copies the selected program blocks to the buffer memory
Pastes the copied program blocks at the current cursor position

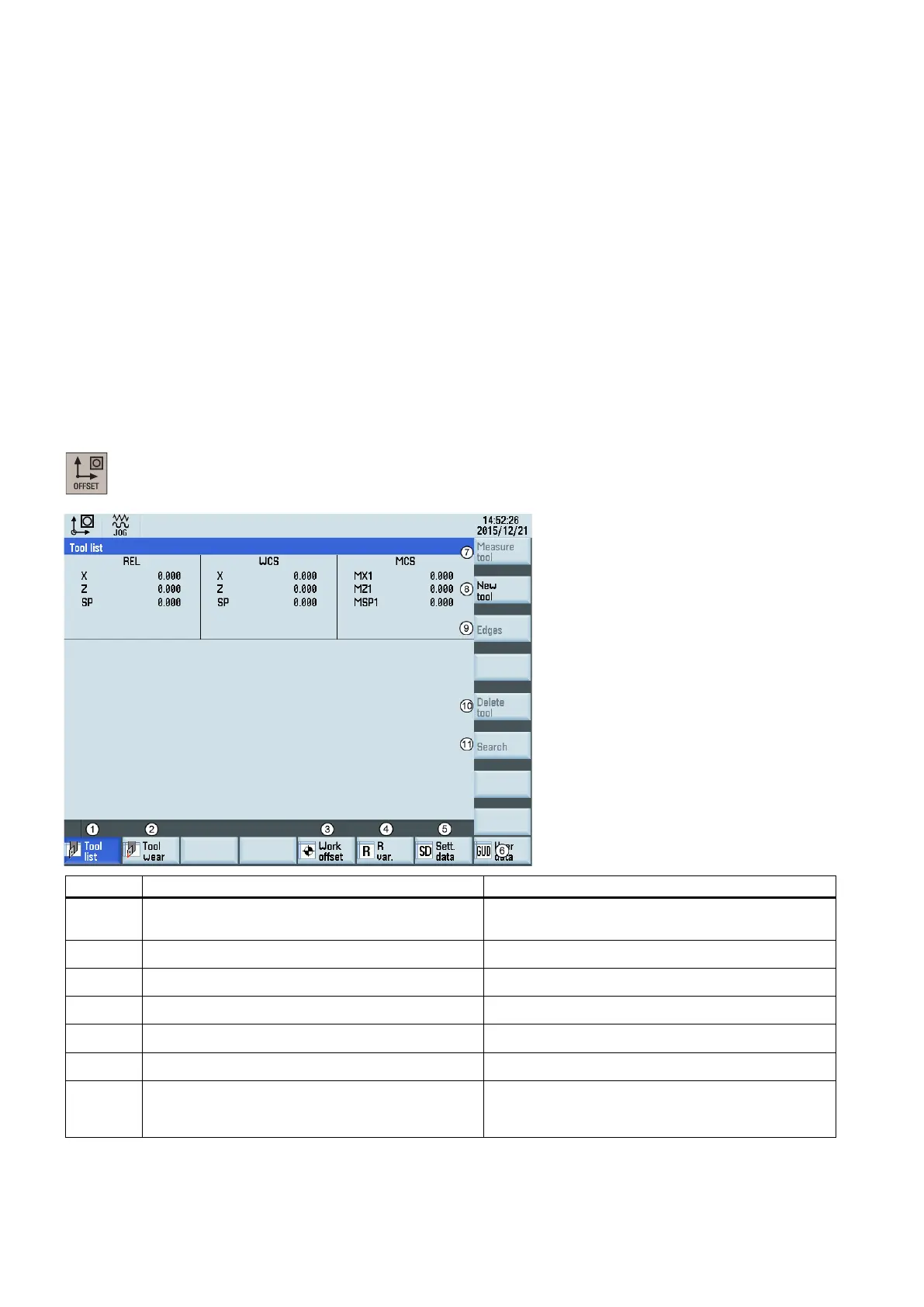

Offset operating area
Softkey functions
Pressing this key on the PPU allows
you to open the following window:
â‘
Displays and modifies the tool offsets
• "Creating a tool (Page 20)"
•
"Creating/changing a cutting edge (Page 22)"
Displays and modifies the tool wear data "Entering the tool wear offsets (Page 48)"
Displays and modifies the workpiece offsets "Entering/modifying workpiece offsets (Page 54)"
Displays and modifies the R variables "Setting R parameters (Page 58)"
Configures and displays lists of setting data "Entering/modifying the setting data (Page 55)"
â‘¥
Displays the defined user data "Setting user data (Page 58)"
⑦
Measures the tool manually (active only in "JOG"
mode and when the cursor is on the input field for
"Measuring the tool manually (with the Y axis)
(Page 28)"
To Next Page
