; Specification of technology values
; Approach starting position

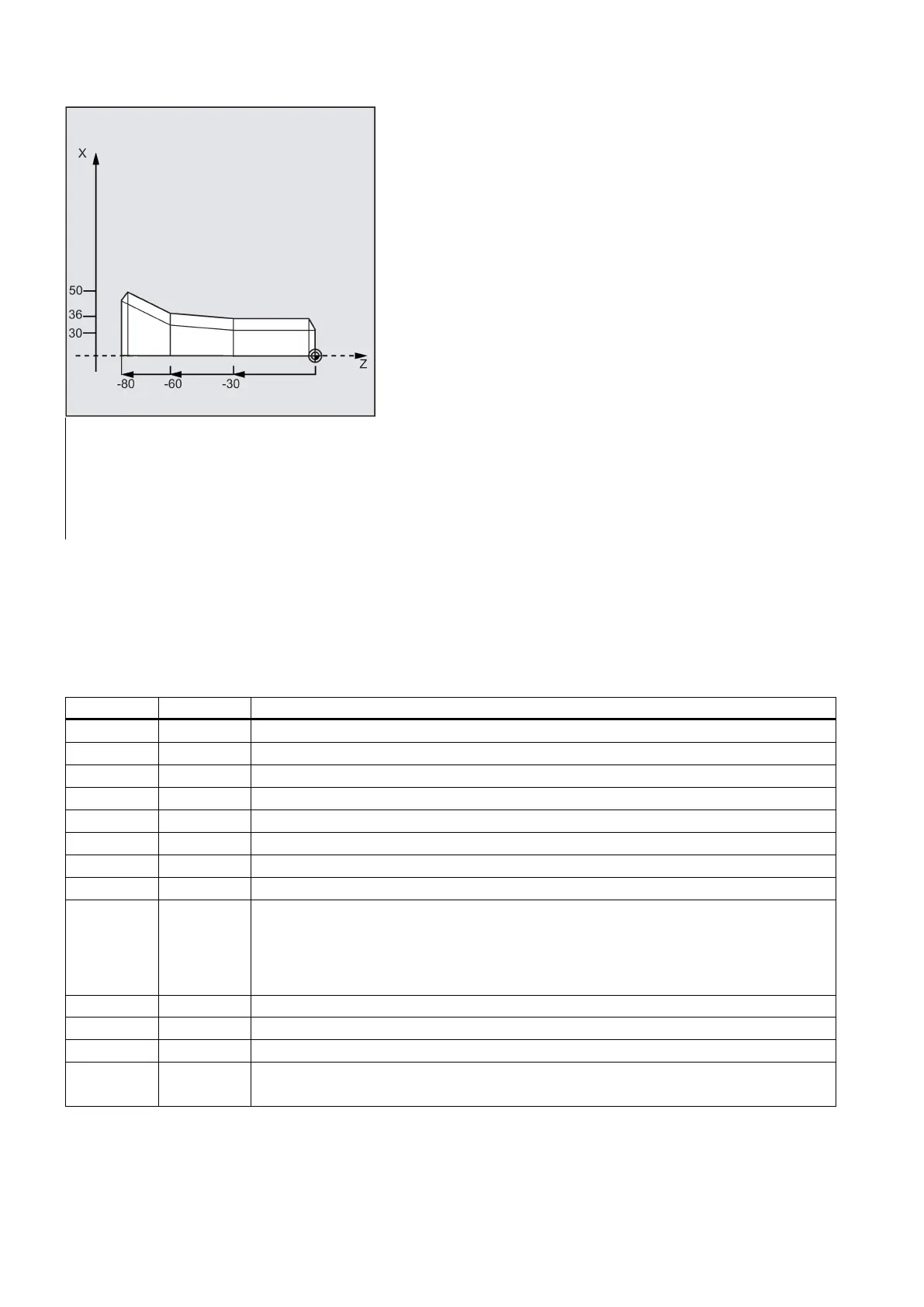

N30 CYCLE98 (0, 30, -30, 30, -60, 36, -80, 50, 10, 10,
0.92, , , , 5, 1, 1.5, 2, 2, 3, 1,)
N50 Z10
Thread cutting - CYCLE99
Programming
CYCLE99 (SPL, DM1, FPL, DM2, APP, ROP, TDEP, FAL, IANG, NSP, NRC, NID, PIT, VARI, NUMTH, _VRT, 0, 0, 0, 0, 0,
0, 0, PITA, 0, 0, 0, PSYS)
Thread starting point in the longitudinal axis
Thread diameter at the starting point
FPL REAL Thread end point in the longitudinal axis
Thread diameter at the end point
Run-in path (enter without sign)
Run-out path (enter without sign)
Thread depth (enter without sign)
Finishing allowance (enter without sign)
IANG REAL Infeed angle
Range of values:
>0: Infeed along the rear flank
<0: Infeed along the front flank
=0: Infeed at a right angle to the cutting direction
Starting point offset for the first thread turn (enter without sign)
Number of roughing cuts (enter without sign)
Number of idle passes (enter without sign)
PIT REAL Thread pitch value (enter without sign)
Unit defined in parameter PITA
