Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
01/2017
31
6.

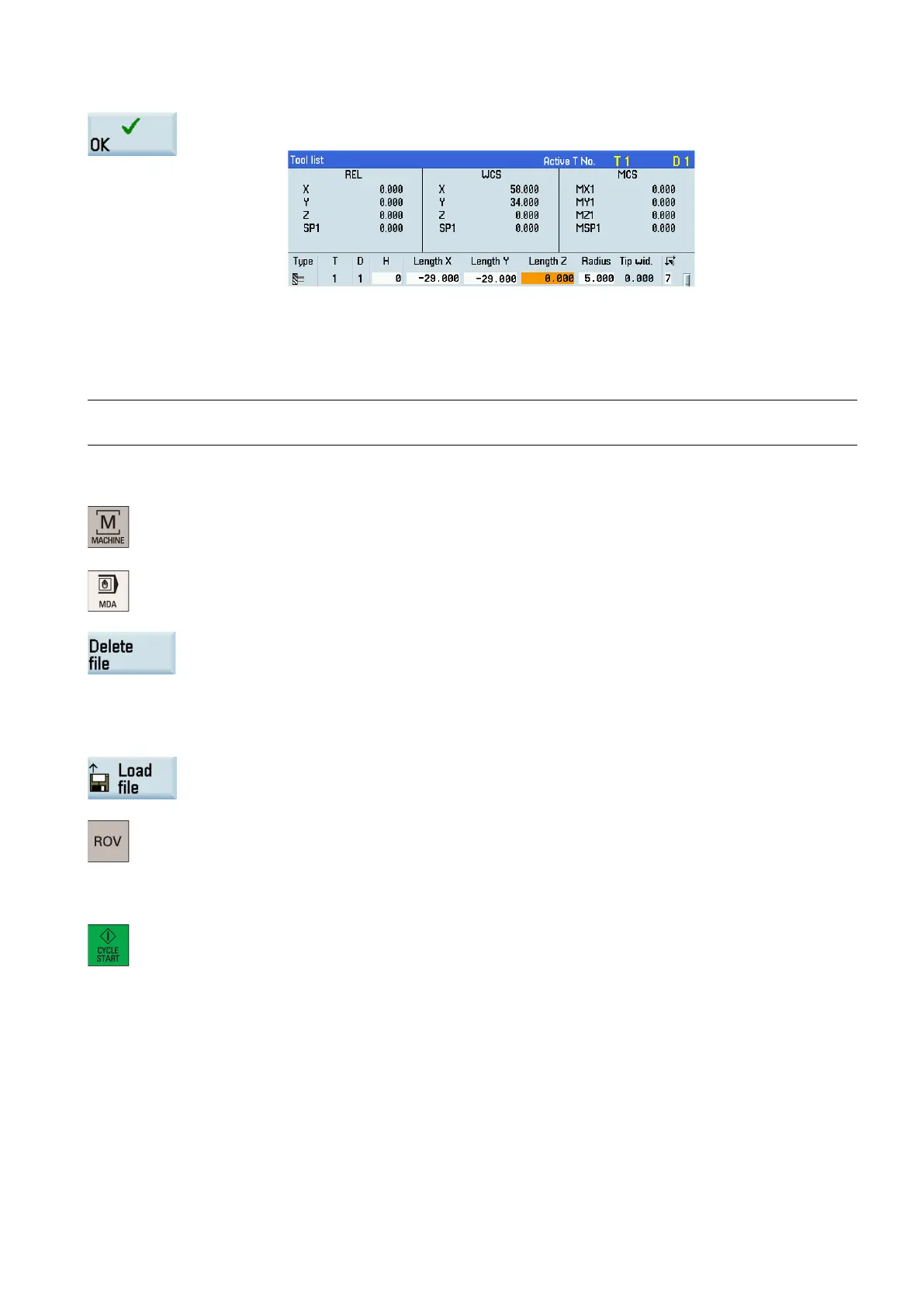

Press this softkey to confirm your input. The system calculates the offset and e
n
ters it in the
geometry input field of the currently active tool automatically.
7.
Repeat the above steps to finish measuring all the tools.
6.6
Verifying the tool offset result
To guarantee the safety and correctness of machining, you must verify the tool setup result.
Note
Before verifying the tool setup result, you must have finished all tool setup work as mentioned before.
Operating sequence
1.
Select the machining operating area.
2.
Switch to "MDA" mode.
3.
Press this softkey on the PPU.
4.
Enter the following test program (or you
can create your own program):
T1 D1
G00 X0 Z5
Alternatively, you can press this softkey to load an existing part program from a system
directory.
5.
Press this key to activate the "ROV" function (indicator on: this function is active).
Note:
After the "ROV" function is active, the feedrate override switch can also control the speed of
G00.
6.
Rotate the feedrate override switch to 0%.
7.
Pres
s this key on the MCP.
Increase the feedrate override gradually to avoid accidents caused by fast axis movement.
Observe whether the axis moves to the specified position.
For more information on the further softkey functions in "MDA" mode, see Section ""MDA" mode (Page 257)".
