Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
01/2017
55
10.3
Entering/modifying the setting data
Entering/modifying the setting data
Operating sequence
1.
Select the offset operating area.
2.
Open the setting data window.
3.
Open the window for setting the general data.
4.
Position the cursor bar in the input fields to be modifie
d and enter the values (see table
below for the parameter descriptions).
5.
Use this key or move the cursor to confirm your entries.

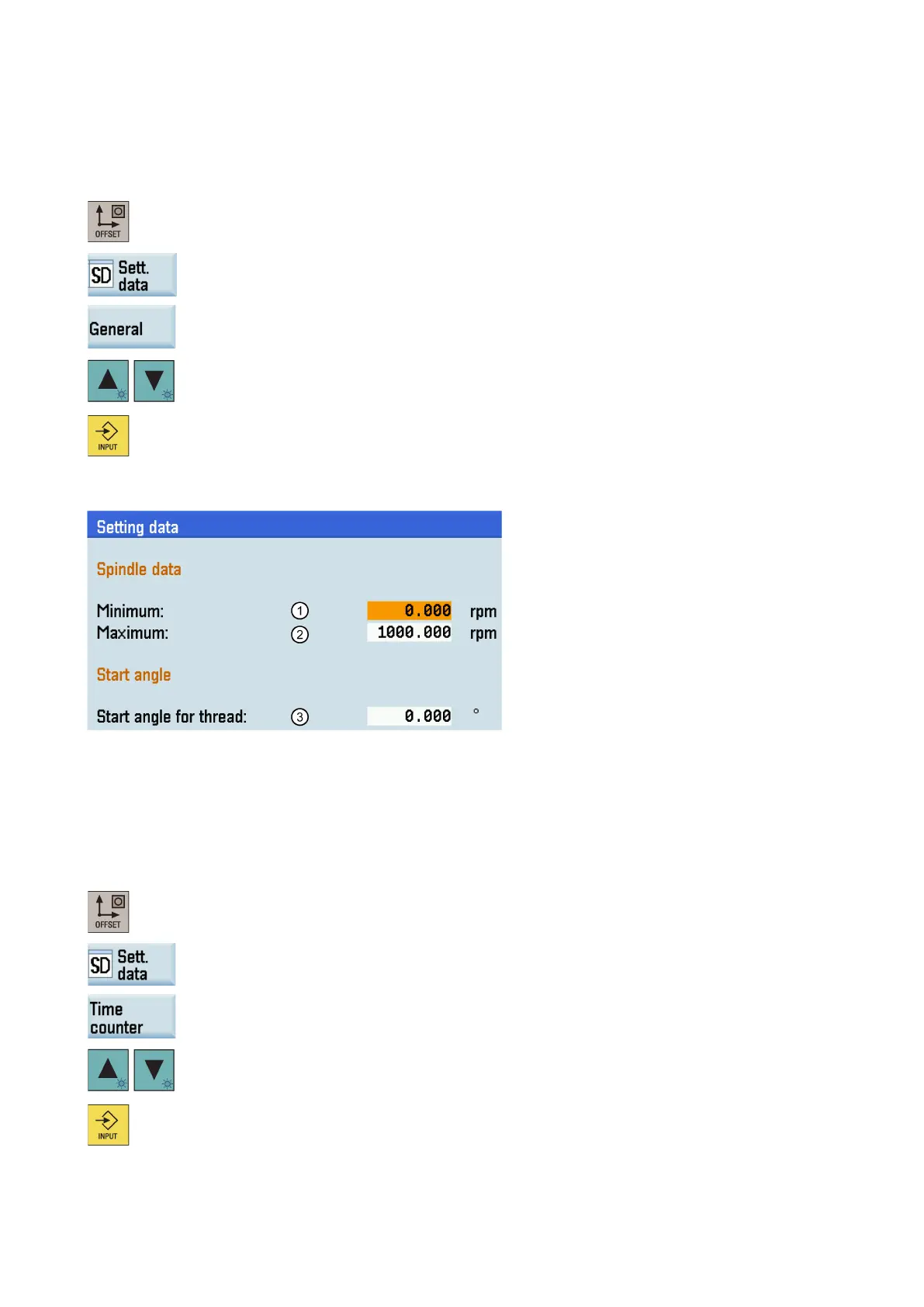

Parameters in the setting data window
①
/②
A limitation of the spindle speed in the maximum (G26)/minimum (G25) fields can only be performed within the
limit values defined in the machine data.
③
For thread cutting, a s
tart position for the spindle is displayed as the start angle. A multiple thread can be cut by
changing the angle when the thread cutting operation is repeated.
Setting the time counter
Operating sequence
1.
Select the offset operating area.
2.
Open the setting data window.
3.
Open the time counter window.
4.
Position the cursor bar in the input fields to be modified and enter the values (see table
below for the parameter descriptions).
5.
Use this key or move the cursor to confirm your en
tries.
