YH4
GRAND
VITARA
1

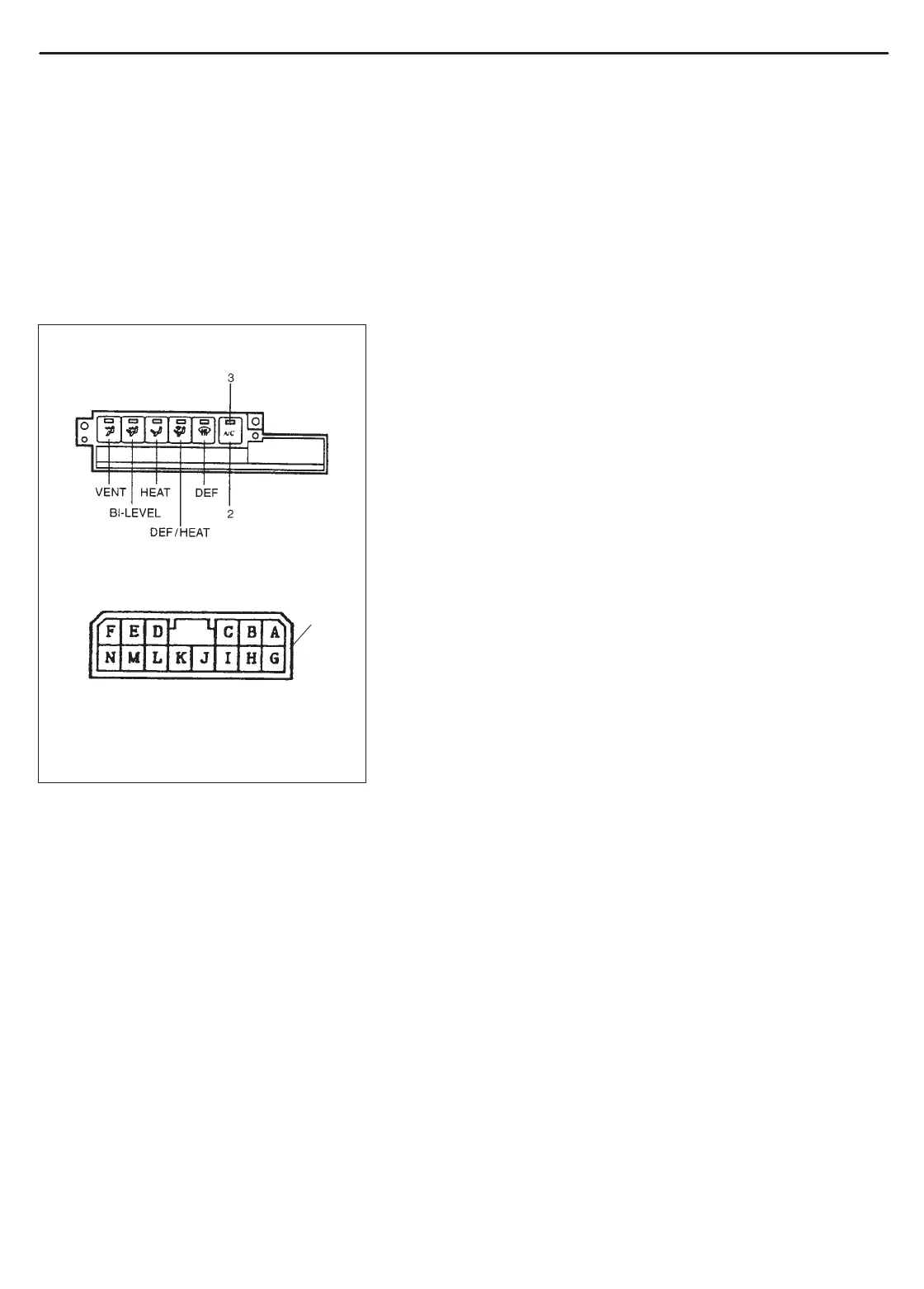

1. Mode control switch coupler
2. A/C switch
3. Indicator lamp
AIR CONDITIONING (OPTIONAL) 1B-45
A/C SWITCH
REMOVAL
1) Disconnect negative (–) cable at battery.
2) If equipped with air bag system, disable air bag system.
Refer to “DISABLING AIR BAG SYSTEM” in Section 10B.
3) Remove mode control switch (Refer to “MODE CONTROL
SWITCH” in Section 1A).
INSPECTION
A/C Switch
Press A/C button and check if there is continuity between termi-
nals “D” and “G”.
With battery voltage (+) connected to terminal “K” and (–) to termi-
nal “D”, press A/C button and check if indicator lamp lights.
INSTALLATION
1) Install in reverse order of removal procedure.
2) If equipped with air bag system, enable air bag system.
Refer to “ENABLING AIR BAG SYSTEM” in Section 10B.
