YH4
GRAND
VITARA
ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL) 5E1-39
1. Rear axle
2. Retainer ring
3. Sensor rotor
4. Vinyl envelope
“A” Grind with grinder
“A”
1. Sensor rotor
4
3
1
2
2
1
3

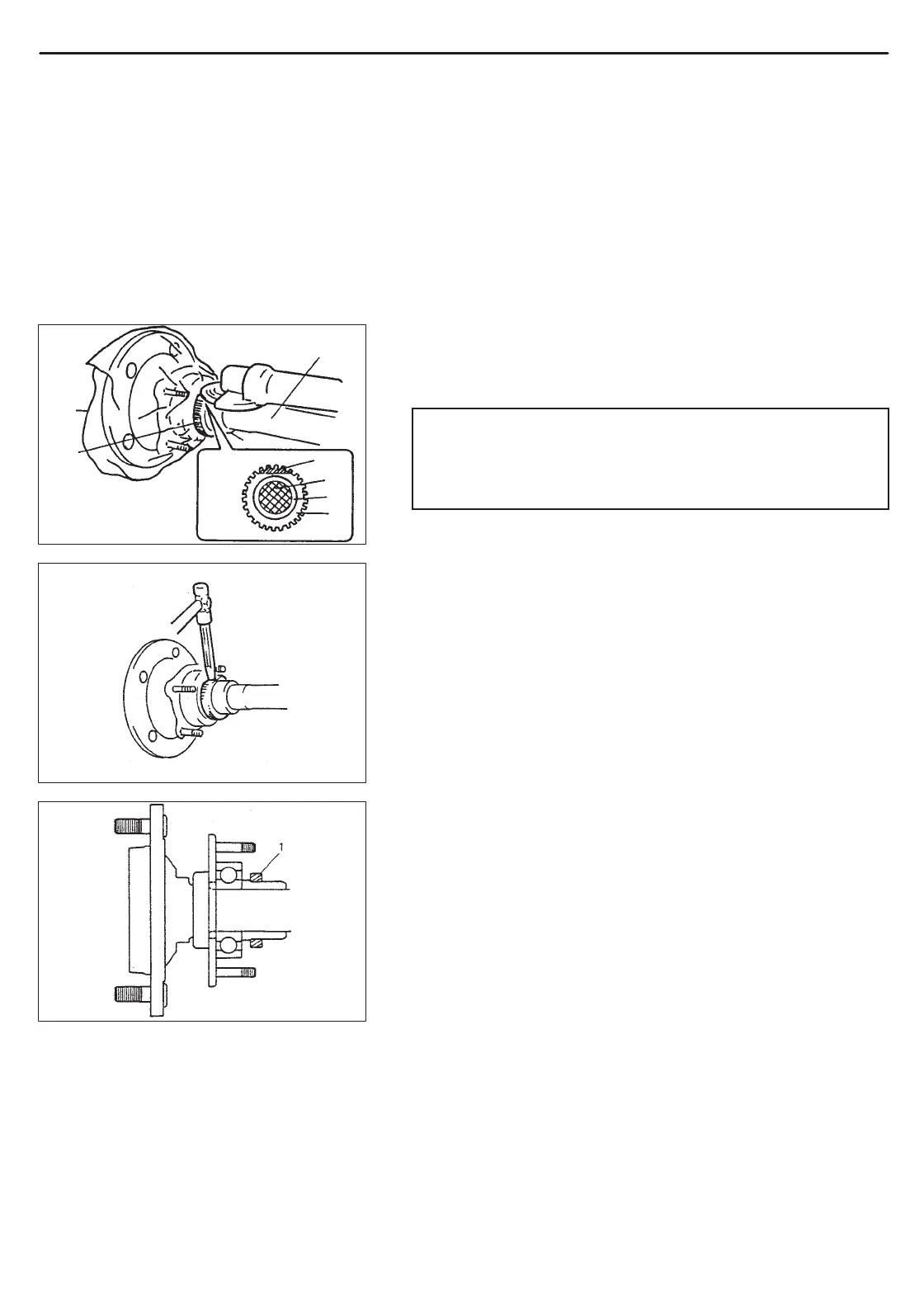

REAR SENSOR ROTOR
REMOVAL
1) Remove rear axle shaft. Refer to REAR AXLE SHAFT RE-
MOVAL in Section 3E.
2) In order to remove sensor rotor from retainer ring, grind with a
grinder one part of the sensor rotor as illustrated till it becomes
thin.
CAUTION:
Cover vinyl sheet or the like over wheel bearing so that
fine grains from grinding will not enter there.
Be careful not to go so far as to grind the retainer ring.
3) Break with a chisel the thin ground sensor rotor, and it can be re-
moved.
INSTALLATION
1) Press-fit sensor rotor as shown.
NOTE:
Use care not to cause any damage to outside of retainer
ring.
2) Install rear axle shaft. Refer to REAR AXLE SHAFT INSTALLA-
TION in Section 3E.
