YH4
GRAND
VITARA
BRAKES PIPE/HOSE/MASTER CYLINDER 5A-7

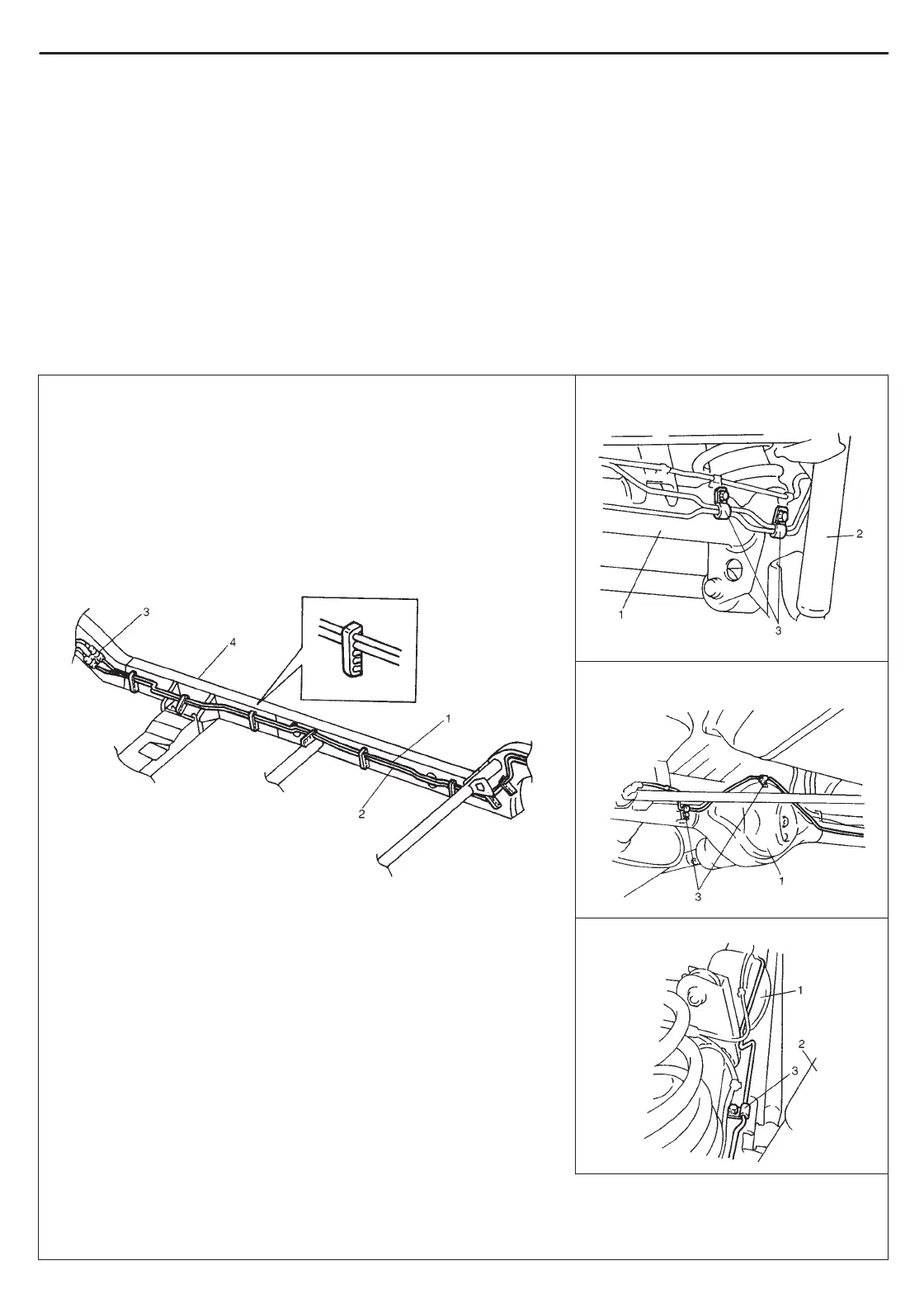

1. Rear axle
2. Shock absorber
3. Clamp
1. Brake pipe (to rear)
2. Brake pipe
(to LSPV, for vehicle without ABS)
3. 4-way (2-way) joint
4. Chassis frame
REAR BRAKE HOSE/PIPE
REMOVAL
1) Raise and suitably support vehicle. Remove tire and wheel.
2) Clean dirt and foreign material from both hose end or pipe end fittings. Remove brake hose or pipe.
INSTALLATION
1) Reverse removal procedure for brake hose or pipe installation procedure.
Be sure to obtain more than 3 mm (0.118 in.) clearance between axle housing and brake pipe.
Install clamps properly referring to figure below and tighten bolts.
When installing hose, make sure that it has no twist or kink.
2) Fill and maintain brake fluid level in reservoir. Bleed brake system.
3) Perform brake test and check each installed part for fluid leakage.
