YH4
GRAND
VITARA
FRONT SUSPENSION 3D-3
DIAGNOSIS
DIAGNOSIS TABLE
Refer to Section 3.

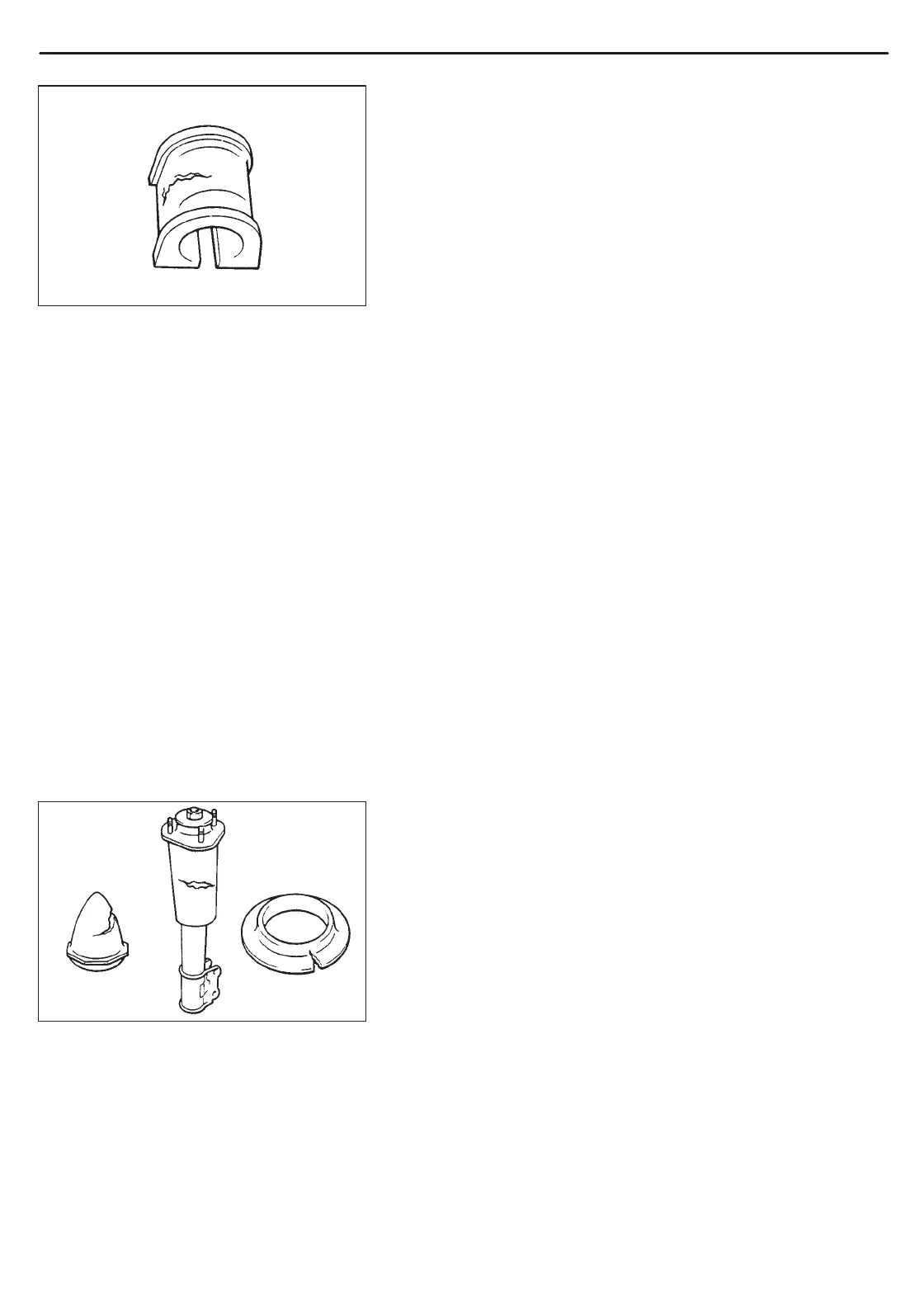

STABILIZER BAR AND BUSHING CHECK
BAR
Inspect for damage or deformation. If defective, replace.
BUSHING
Inspect for damage, wear or deterioration. If defective, replace.
STRUT DAMPER AND/OR COIL SPRING
CHECK
1) Inspect strut for oil leakage. If strut is found faulty, replace it as
an assembly unit, because it can not be disassembled.
2) Strut function check
Check and adjust tire pressures as specified.
Bounce body three or four times continuously by pushing front
end on the side with strut to be checked. Apply the same amount
of force at each push and note strut resistance both when
pushed and rebounding.
Also, note how many times vehicle body rebounds before com-
ing to stop after hands are off. Do the same for strut on the other
side.
Compare strut resistance and number of rebound on the right
with those on the left.
And they must be equal in both. With proper strut, body should
come to stop the moment hands are off or after only one or two
small rebounds. If struts are suspected, compare them with
known good vehicle or strut.
3) Inspect for damage or deformation.
4) Inspect strut boot for damage or crack.
5) Inspect for cracks or deformation in spring seat.
6) Inspect for deterioration of bump stopper.
7) Inspect strut mount for wear, cracks or deformation.
Replace any parts found defective in steps 2) – 7).
SUSPENSION ARM/KNUCKLE CHECK
Inspect for cracks, deformation or damage.
