YH4
GRAND
VITARA
IMMOBILIZER CONTROL SYSTEM (IF EQUIPPED) 8G-25
1
2

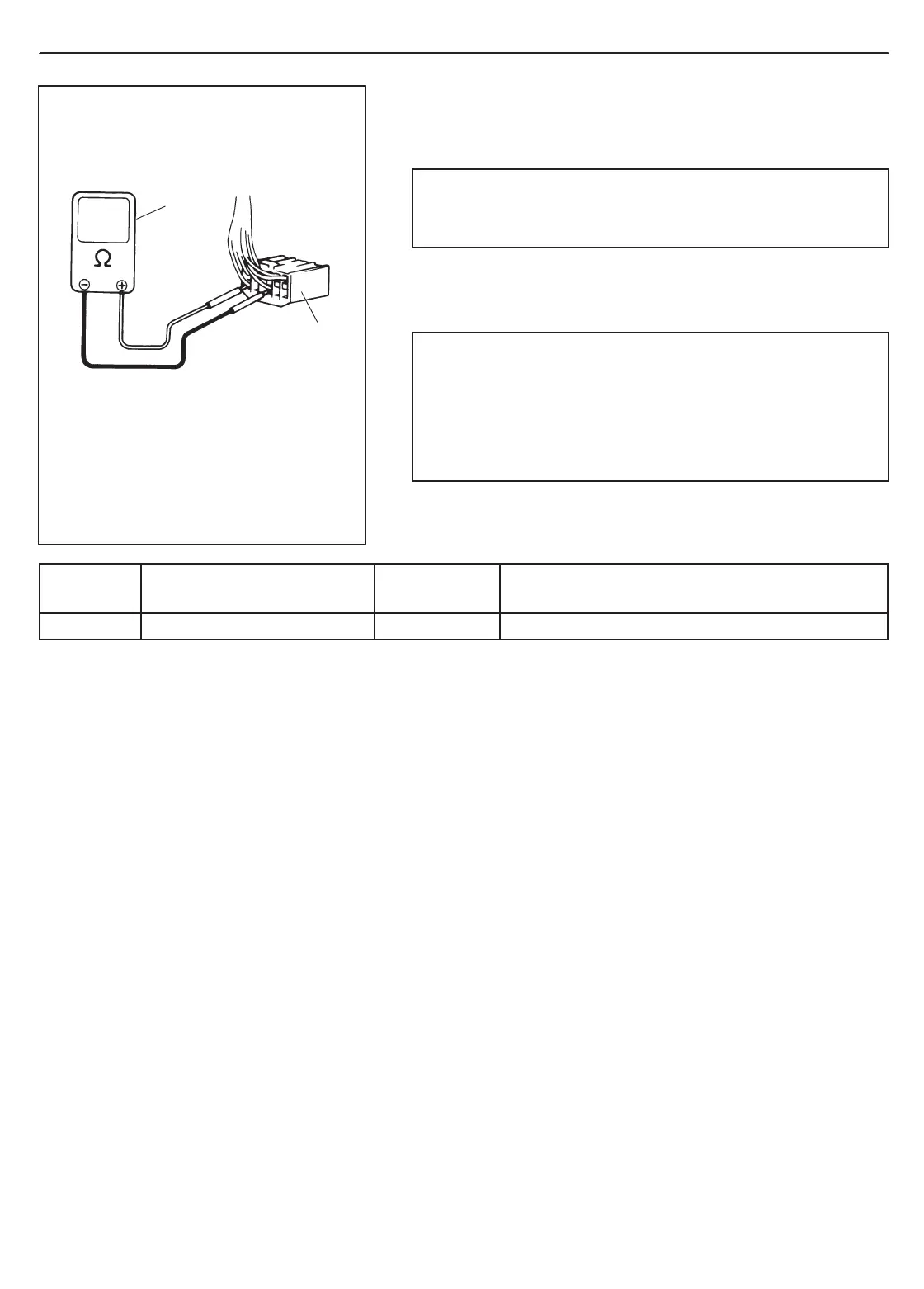

1. Immobilizer Control Module
coupler disconnected
2. Ohmmeter
Resistance Check
1) Disconnect Immobilizer Control Module couplers from Immobi-
lizer Control Module with ignition switch OFF.
CAUTION:
Never touch terminals of Immobilizer Control Module it-
self or connect voltmeter or ohmmeter.
2) Check resistance between each terminal of coupler discon-
nected.
CAUTION:
D Be sure to connect ohmmeter probe from wire harness
side of coupler.
D Be sure to turn OFF ignition switch for this check.
D Resistance in table below represents that when parts
temperature is 20_C (68_F).
TERMINAL CIRCUIT
NORMAL
RESISTANCE
CONDITION
A1 – A2 Coil antenna Continuity –
To Next Page
