YH4
GRAND
VITARA
ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL) 5E1-37

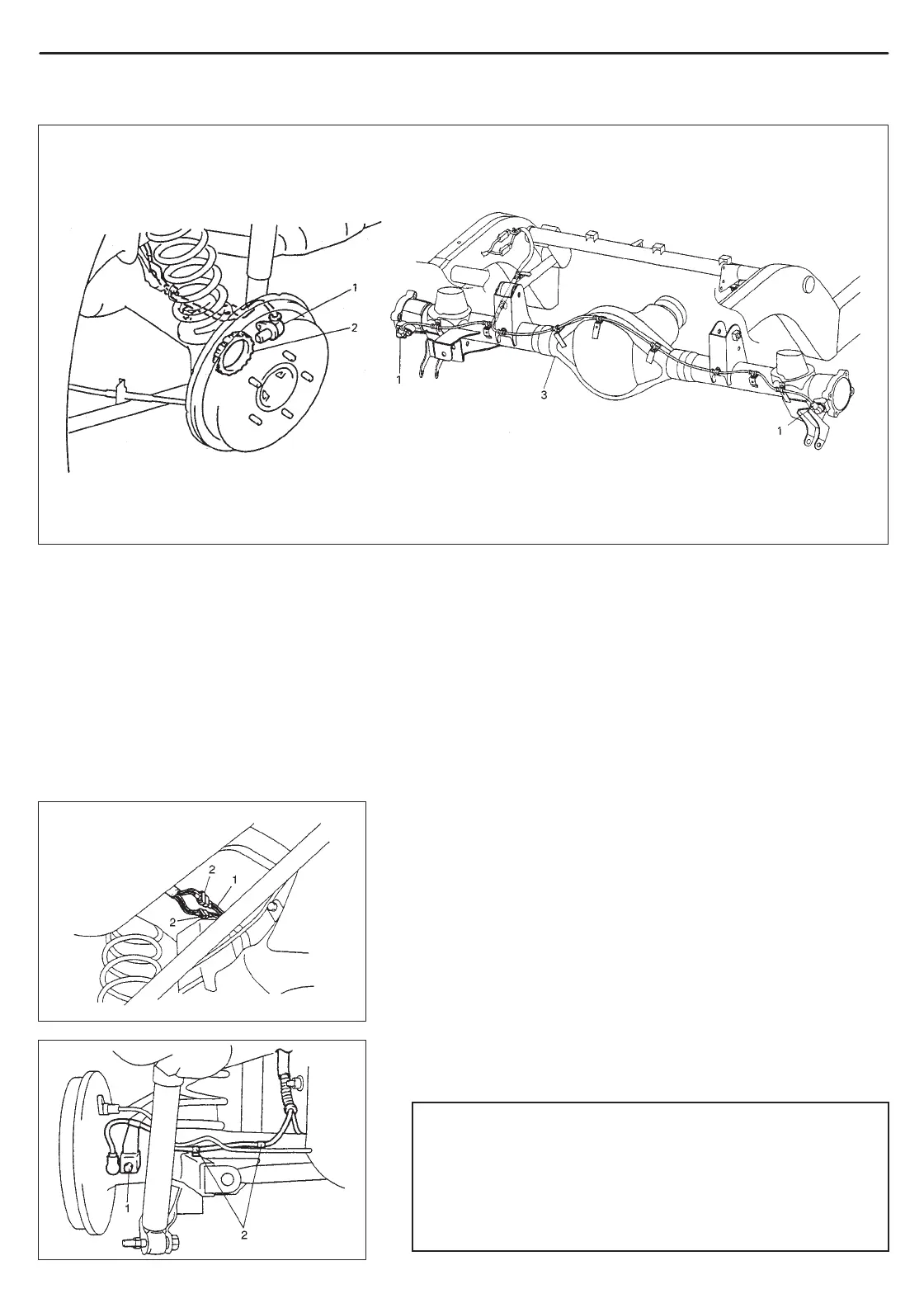

1. Rear wheel speed sensor
2. Sensor rotor
3. Rear axle housing
1. Rear wheel speed
sensor harness
2. Connector
1. Sensor bolt
2. Clamps
REAR WHEEL SPEED SENSOR
OUTPUT VOLTAGE INSPECTION
Check in the same procedure as that used of front wheel speed
sensor check.
Output AC voltage at 2/3 to
one rotation per second (25 – 38 Hz): 106 mV or more
Reference
When using oscilloscope,
peak-to-peak voltage at 2/3 to
one rotation per second (25 – 38 Hz): 150 mV or more
REMOVAL
1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect rear wheel speed sensor connector and detach wire
harness from vehicle body and rear axle.
4) Remove harness clamps and remove rear wheel speed sensor
from rear axle.
CAUTION:
Do not pull wire harness when removing rear wheel
speed sensor.
Do not cause damage to surface of rear wheel speed
sensor and do not allow dust, etc. to enter its installa-
tion hole.
