1. Brake master cylinder ass’y
2. Brake booster ass’y
3. Gasket
4. Push rod clevis
5. Nut
6. Clevis pin
7. Clip
8. Nut
9. Brake vacuum hose
1. Steering column
2. Push rod clevis
3. Brake pedal arm
4. Clevis pin
5. Clip
6. Nut
1. ABS hydraulic
unit
2. Brake pipes
5A-14 BRAKES PIPE/HOSE/MASTER CYLINDER

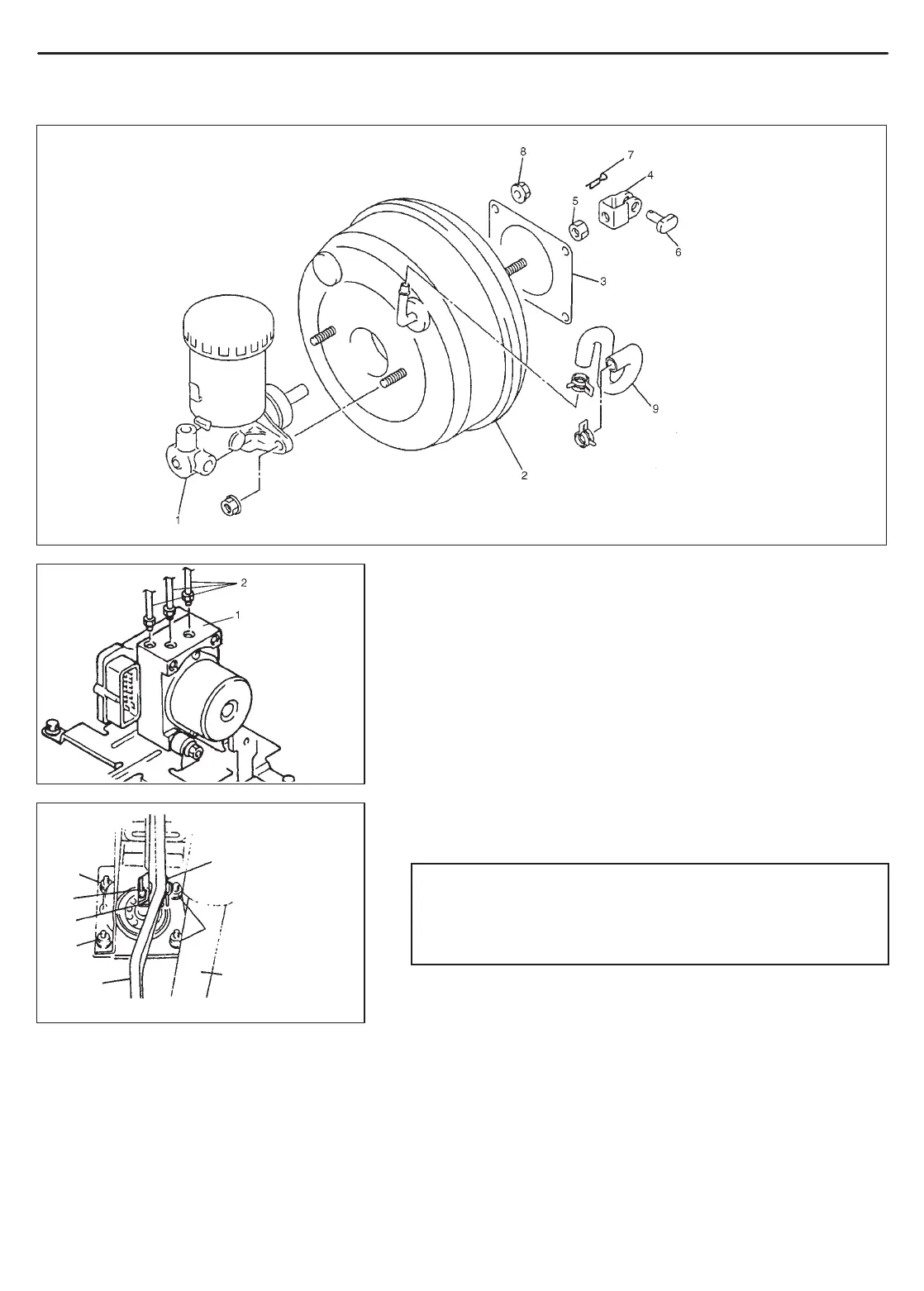

BRAKE BOOSTER
REMOVAL
NOTE:
Do not allow brake fluid to get on painted surfaces.
1) For vehicle equipped with ABS, disconnect brake pipes from
ABS hydraulic unit.
2) Remove master cylinder assembly, referring to MASTER CYL-
INDER ASSEMBLY REMOVAL in this section.
3) Disconnect brake vacuum hose from brake booster.
4) Disconnect push rod clevis from brake pedal arm.
5) Remove attaching nuts and then booster as shown.
CAUTION:
Never disassemble brake booster. Disassembly will spoil
its original function. If it is found faulty, replace it with
new one.
