YH4
GRAND
VITARA
1. Side body
2. Fender
3. Pad
1. Side body
2. Pad
3. Knife
9-22 BODY SERVICE

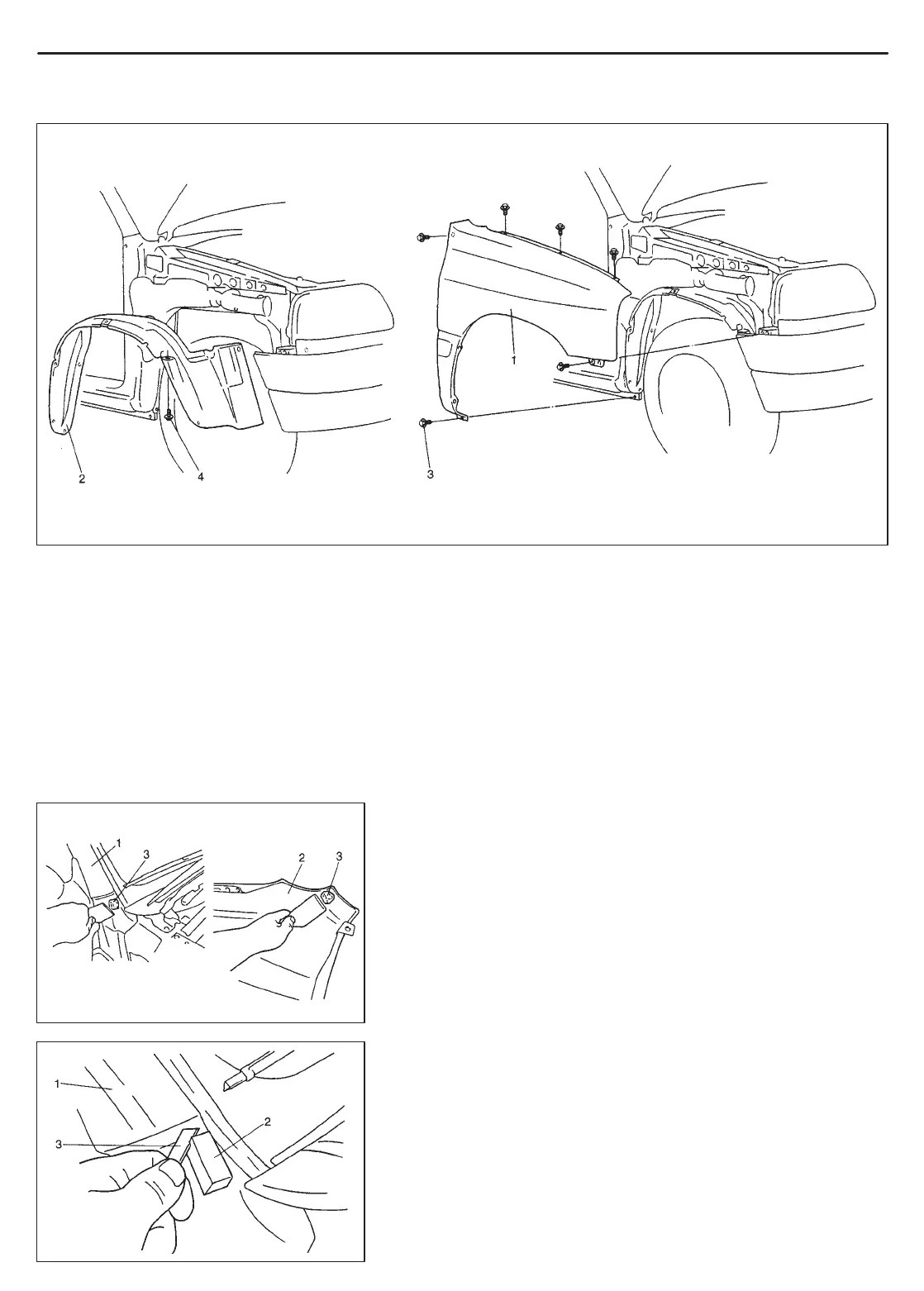

1. Front fender
2. Front fender lining
3. Fender attaching bolts
4. Fender lining attaching screws
FRONT FENDER
REMOVAL
1) Remove front bumper.
2) Remove fender splush guard (H25 engine).
3) Remove front fender lining.
4) Remove front fender.
INSTALLATION
1) Remove pad from side body and (or) fender, using care not to
damage painted surface.
2) Attach new pad cutting appropriately size temporarily and adjust
height with a knife so that fender becomes flush with side body.
3) Reverse removal procedure for installation.
NOTE:
If paint on fender bolt is peeled off, be sure to apply paint
again.
