YH4
GRAND
VITARA

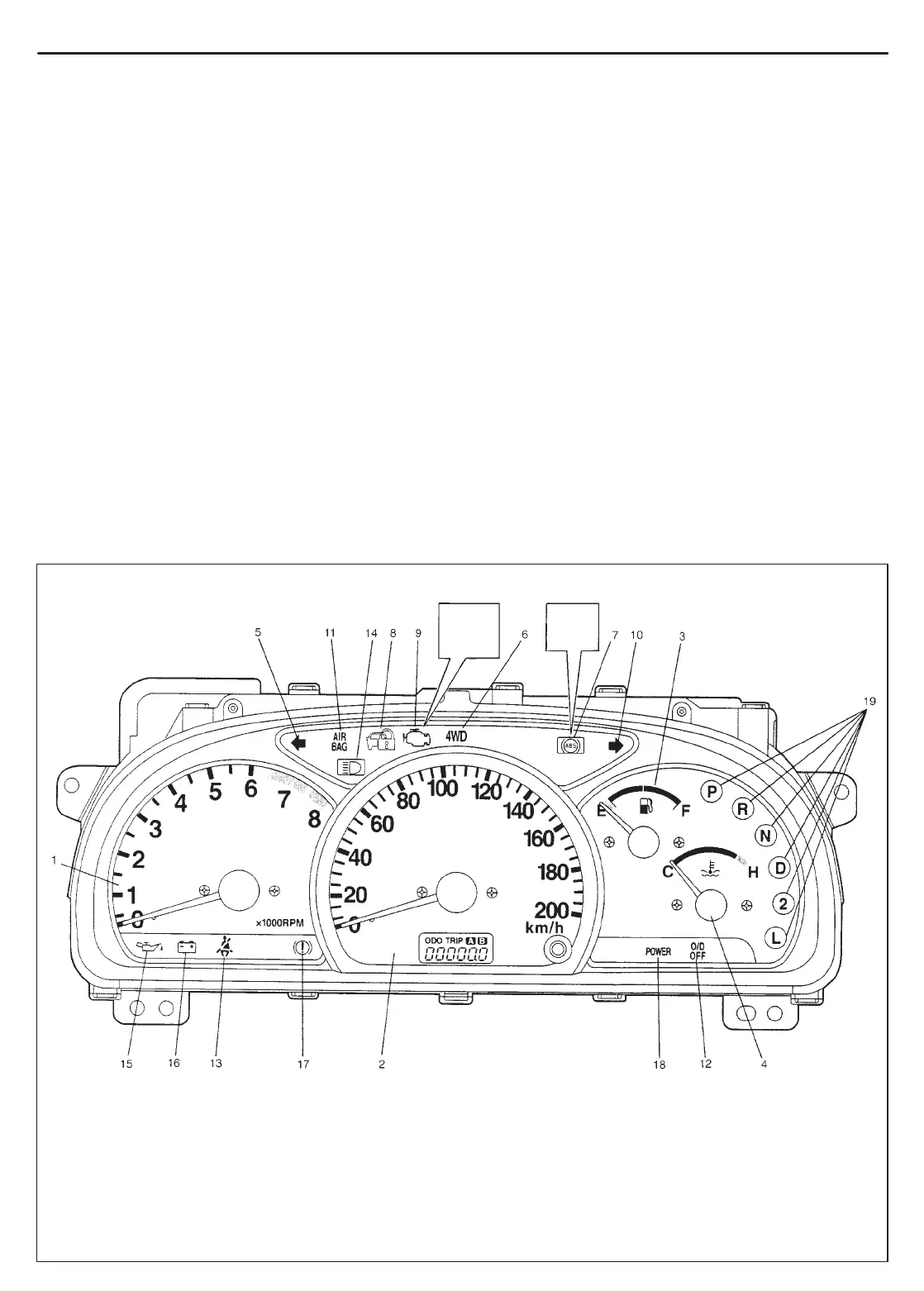

1. Tachometer
2. Speedometer
3. Fuel level meter
4. Water temperature meter
5. Turn signal pilot light (LH)
6. 4WD indicator (if equipped)
7. ABS warning light (if equipped)
8. Immobilizer warning light (if equipped)
9. CHECK ENGINE light
10. Turn signal pilot light (RH)
11. AIR BAG warning light (if equipped)
12. O/D OFF light (A/T vehicle only)
13. Fasten seat belt light (if equipped)
14. High beam light
15. Oil pressure warning light
16. Charge warning light
17. Brake and parking brake warning light
18. POWER indicator light (A/T vehicle only)
19. Shift position indicator (A/T vehicle, if equipped)
or
CHECK
ENGINE
or
ABS
8C-2 INSTRUMENTATION/DRIVER INFORMATION
GENERAL DESCRIPTION
CAUTIONS IN SERVICING
Refer to Section 8.
SYMBOLS AND MARKS
Refer to Section 8.
WIRING COLOR SYMBOLS
Refer to Section 8.
ABBREVIATIONS
Refer to Section 8.
JOINT CONNECTOR
Refer to Section 8.
FUSE BOX AND RELAY
Refer to Section 8.
POWER SUPPLY DIAGRAM
Refer to Section 8.
COMBINATION METER
