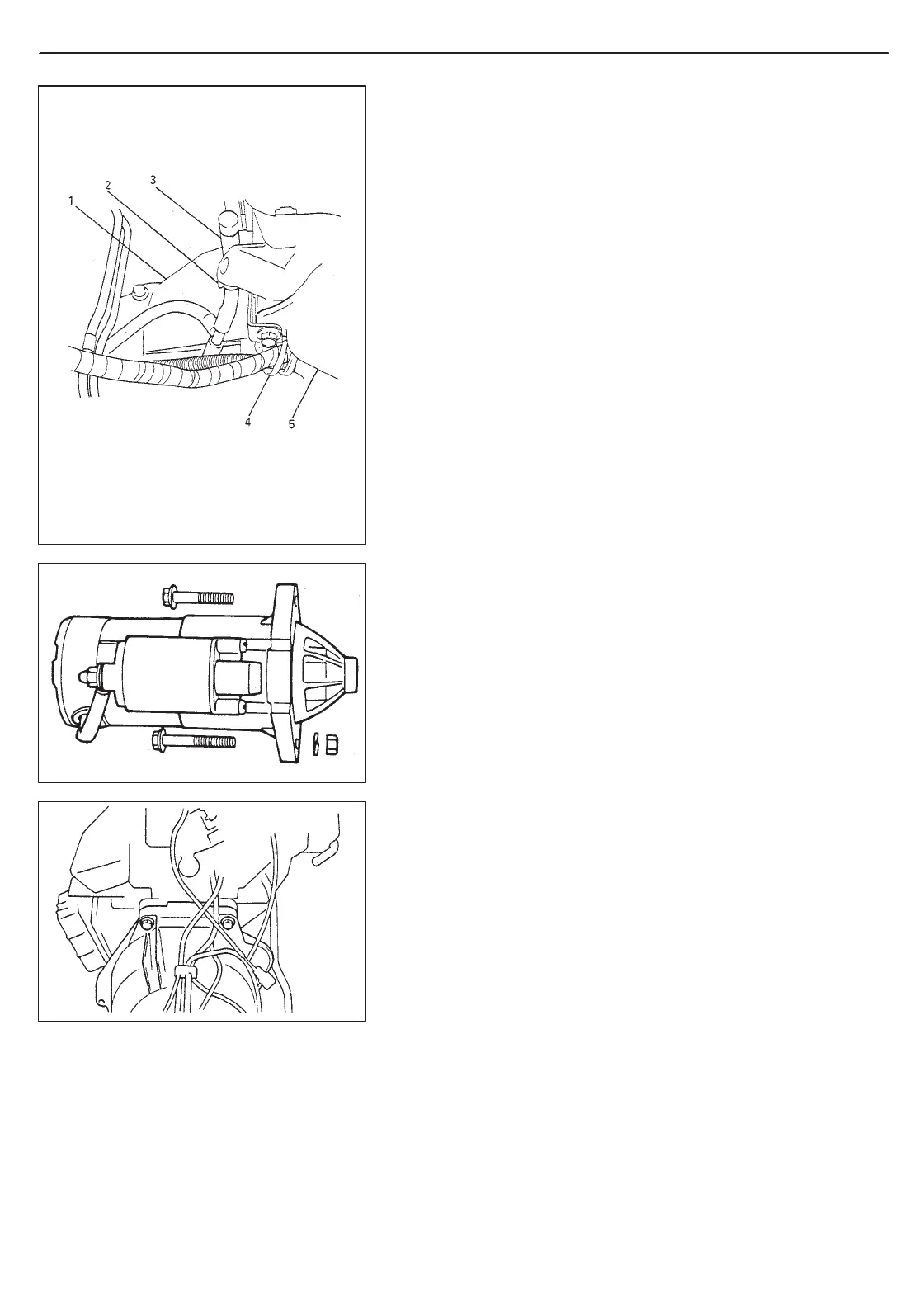

1. Transmission
2. Breather clamp
3. Breather hose
4. Wiring harness clamp
5. Intake manifold
MANUAL TRANSMISSION (TYPE 1) 7A-9
DISMOUNTING OF TRANS. UNIT
IN CABIN
Remove transmission shift control lever (refer to page 7A-4) and
transfer shift control lever knob.
IN ENGINE ROOM
1) Disconnect negative (–) cable of battery.
2) Remove breather hose from clamp at the rear end of cylinder
head.
3) Remove starting motor fixing bolts and nut and then remove
starter.
4) Remove transmission fastening bolts.
