YH4

GRAND

VITARA

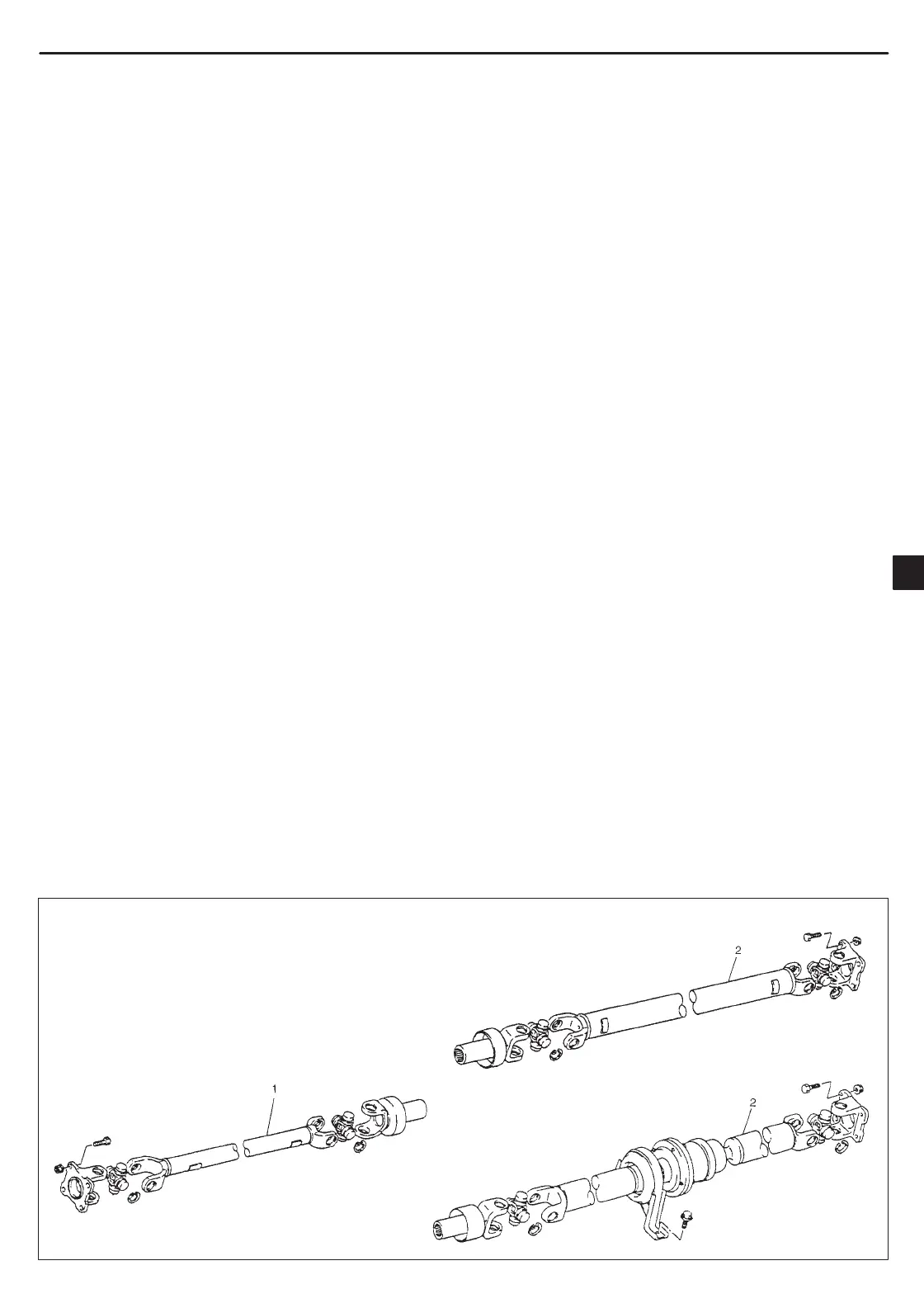

1. Front propeller shaft

(if equipped)

2. Rear propeller shaft

PROPELLER SHAFTS 4B-1

SECTION 4B

PROPELLER SHAFTS

NOTE:

 All propeller shaft fasteners are an important attaching part in that it could affect the performance of vital

parts and systems, and/or could result in major repair expense. They must be replaced with one of the

same part number or with an equivalent part if replacement becomes necessary. Do not use a replace-

ment part of lesser quality or substitute design. Torque values must be used as specified during reas-

sembly to assure proper retention of this part.

 Never attempt to heat, quench or straighten any propeller shaft part. Replace it with a new part, or dam-

age to the part may result.

CONTENTS

GENERAL DESCRIPTION 4B- 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSIS 4B- 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnosis Table 4B- 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Propeller Shaft Joint Check 4B- 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE 4B- 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Propeller Shaft 4B- 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TIGHTENING TORQUE SPECIFICATION 4B- 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

REQUIRED SERVICE MATERIAL 4B- 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS 4B- 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION

Most universal joints require no maintenance. They are lubricated for life and can not be lubricated on the vehicle.

If a universal joint becomes noisy or worn, it must be replaced.

The propeller shaft is a balanced unit. Handle it carefully so that balance can be maintained.
