YH4
GRAND
VITARA
BODY SERVICE 9-79

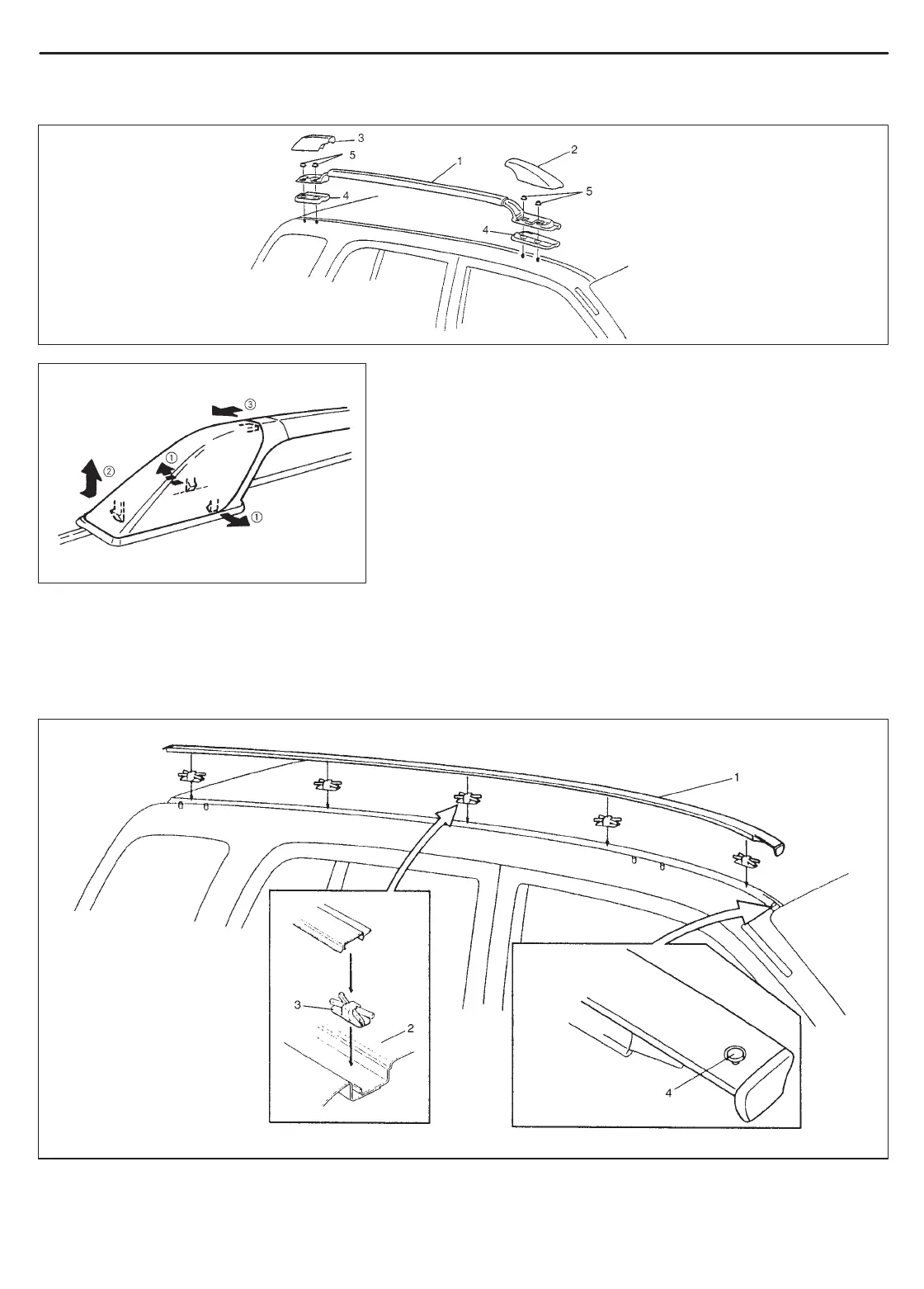

1. Roof rail assembly
2. Front cap
3. Rear cap
4. Base seal
5. Nut
1. Roof molding
2. Roof panel
3. Clip
4. Molding stud
ROOF RAIL (IF EQUIPPED)
Removal
1) Remove roof rail front and rear caps as shown in figure.
2) Remove nuts.
3) Remove roof rail assembly.
Installation
Reverse removal procedure for installation.
Confirm that each roof rail fixing nut is tightened securely.
ROOF MOLDING
REMOVAL AND INSTALLATION
If roof rail is equipped, remove it in advance (refer to “ROOF RAIL” section).
When reusing roof molding, be careful not to make roof molding warped.
To Next Page
