YH4

GRAND

VITARA

BODY SERVICE 9-71

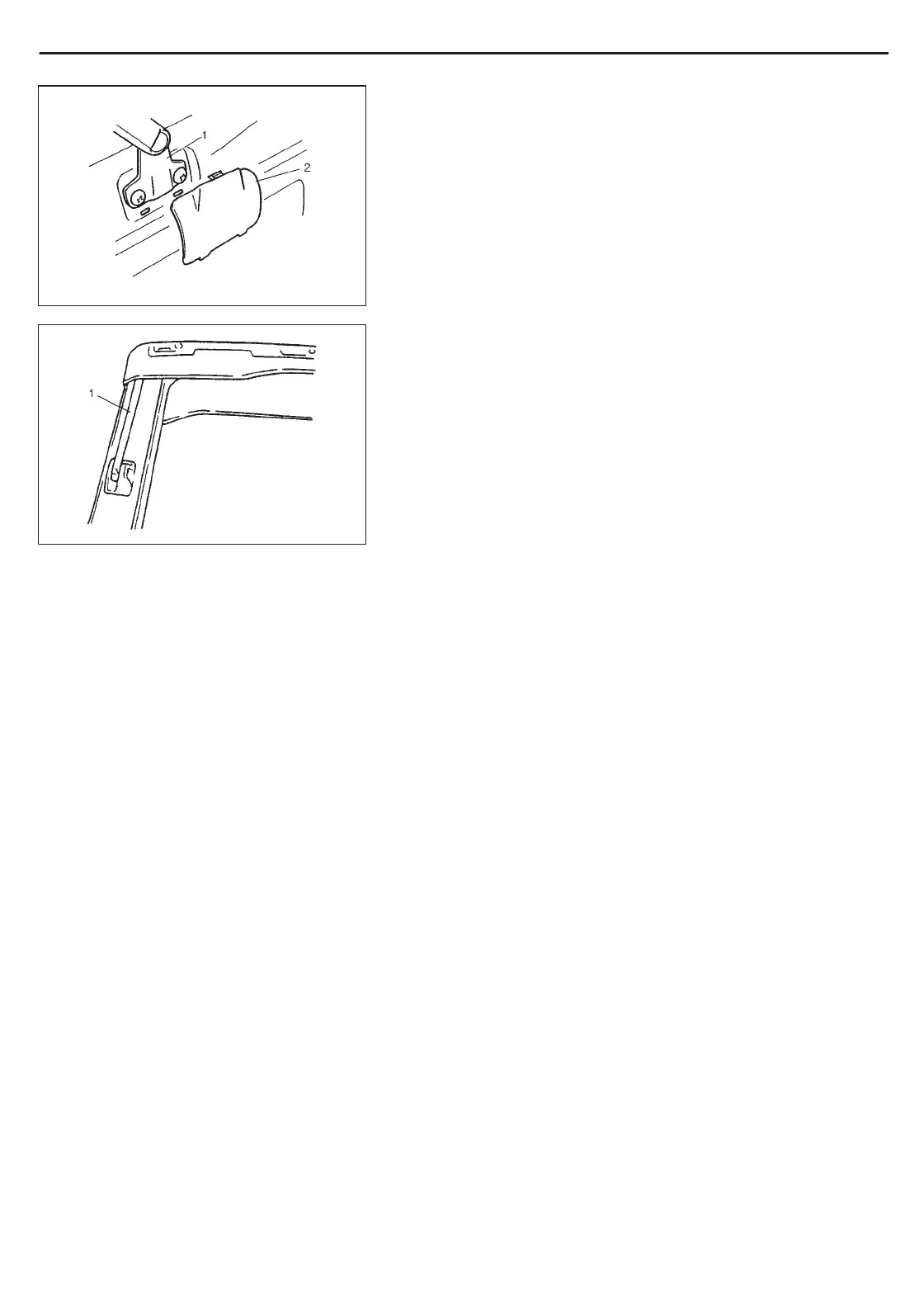

1. Topbow center frame

2. Bracket cover

1. Topbow front frame

CANVAS TOP AND TOPBOW FRAMES

Removal

1) Open canvas to referring to Owner’s Manual.

2) Remove fording top and rear canvas top.

3) Remove topbow bracket cover.

4) Remove topbow center frame.

5) Remove topbow front frame.

Installation

Install in reverse order of removal procedure.
