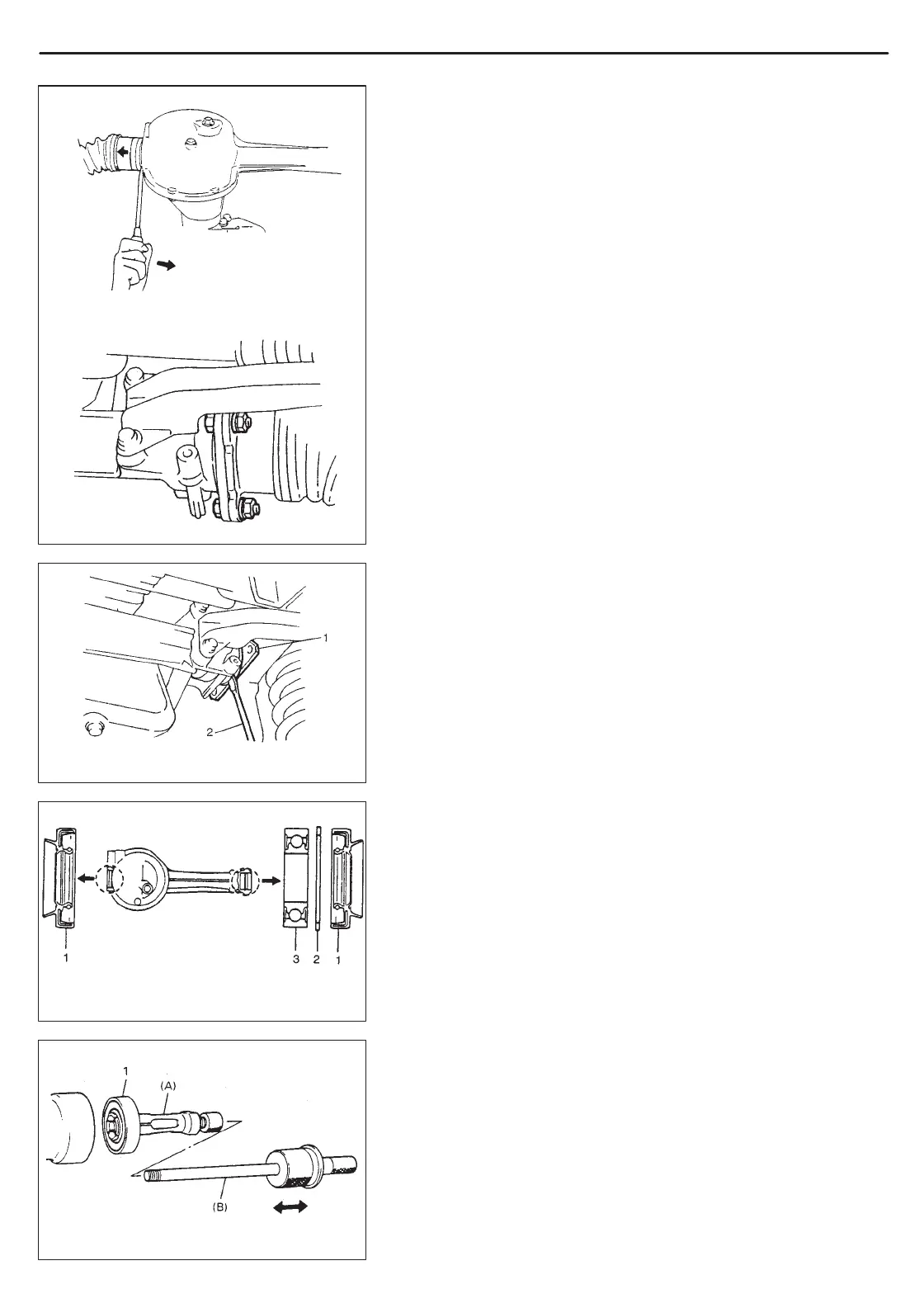

1. Left drive shaft
2. Tire lever
1. Shaft bearing
1. Axle oil seal
2. Circlip
3. Axle bearing
FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL 4A2-9
SHAFT BEARING/OIL SEAL
REMOVAL
1) Remove drive shaft assembly.
Refer to item DRIVE SHAFT REMOVAL (LEFT and RIGHT) in
this section.
For right side shaft bearing/oil seal removal, drain differential
gear oil.
2) Remove left drive shaft by using tire lever.
3) Remove left side strut. Refer to steps 1) and 4) to 8) of item
STRUT DAMPER REMOVAL in Section 3D.
4) Remove oil seal, using plain screw driver.
5) Remove circlip.
6) Remove bearing, using special tools (A) and (B).
Special Tool
(A): 09941-64510
(B): 09930-30102
