YH4

GRAND

VITARA

WINDOWS, MIRRORS, SECURITY AND LOCKS 8D-31

DOOR MIRROR HEATER (IF EQUIPPED)

INSPECTION

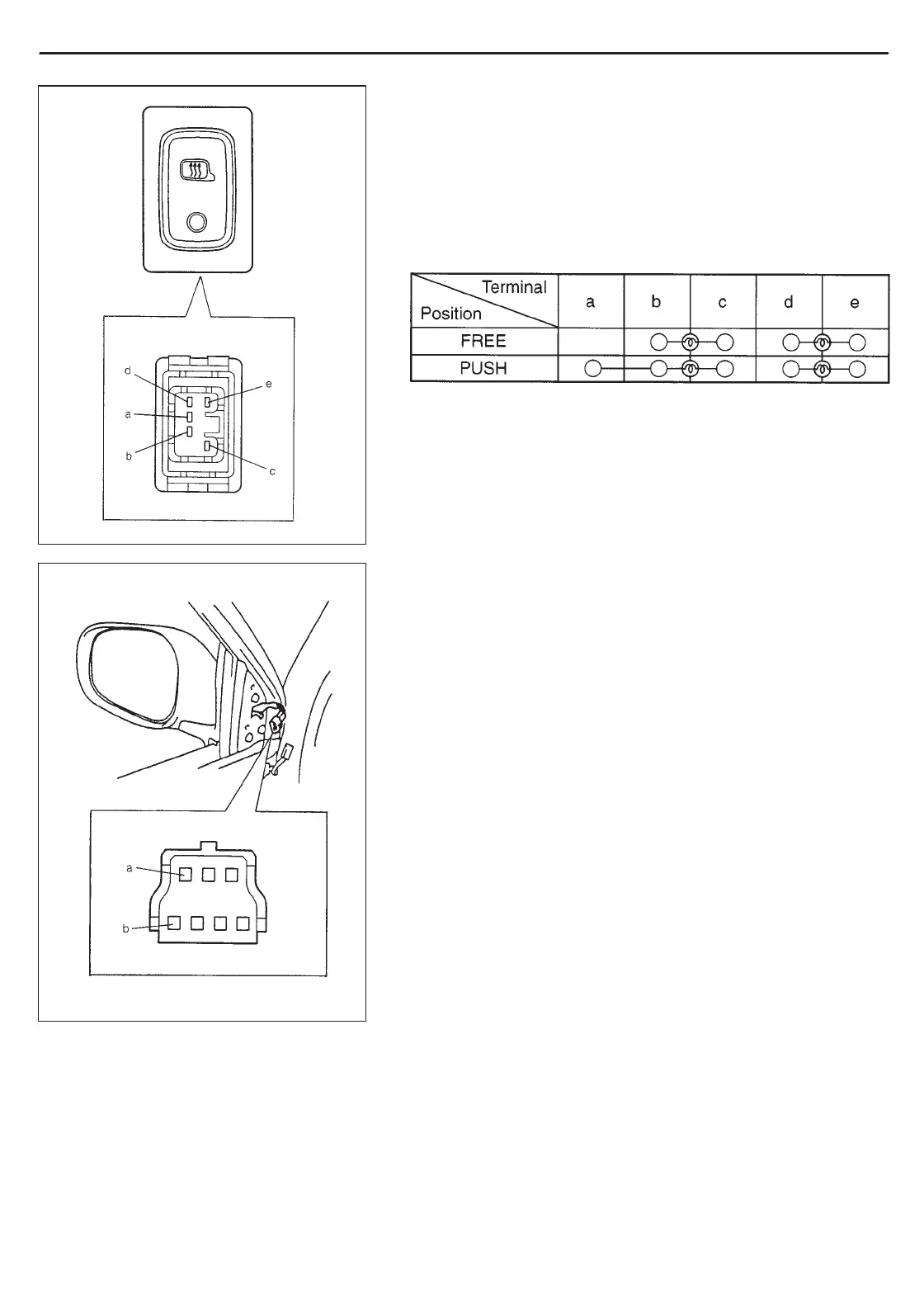

MIRROR HEATER SWITCH

1) Remove mirror heater switch from instrument panel.

2) Check for continuity between terminals at each switch position

as shown below. If check result is not as specified, replace

switch.

MIRROR HEATER (IF EQUIPPED)

1) Remove garnish from door.

2) Disconnect door mirror coupler.

3) Check for continuity between terminals “a” and ”b”.

If not continuity, replace outside mirror.
