YH4

GRAND

VITARA

ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL) 5E1-41

(d)

TRANSFER 4WD SWITCH

For removal, inspection and installation of this switch, refer to

SWITCHES in Section 7A.

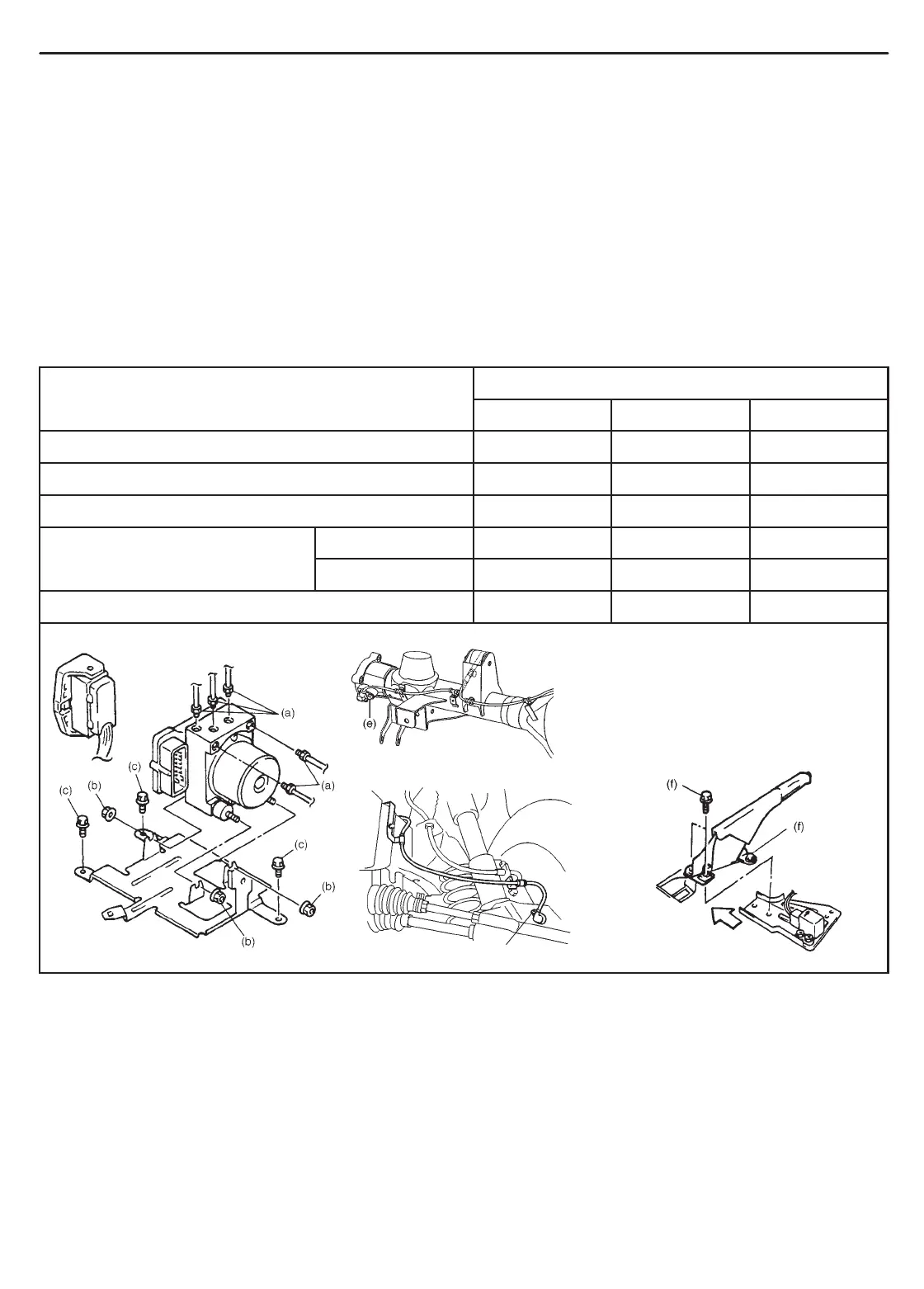

TIGHTENING TORQUE SPECIFICATIONS

Fastening

arts

Tightening torque

Fastening

arts

m kg-m lb-ft

Brake pipe flare nut: (a) 16 1.6 11.5

ABS hydraulic unit nut: (b) 21 2.1 15.5

ABS hydraulic unit bracket bolt: (c) 10 1.0 7.5

Wheel s

eed sensor bolt

(Front): (d) 23 2.3 17.0

Wheel

s eed

sensor

bolt

(Rear): (e) 21 2.1 15.5

Parking lever assy mounting bolt: (f) 23 2.3 17.0
