YH4
GRAND
VITARA
BODY SERVICE 9-61

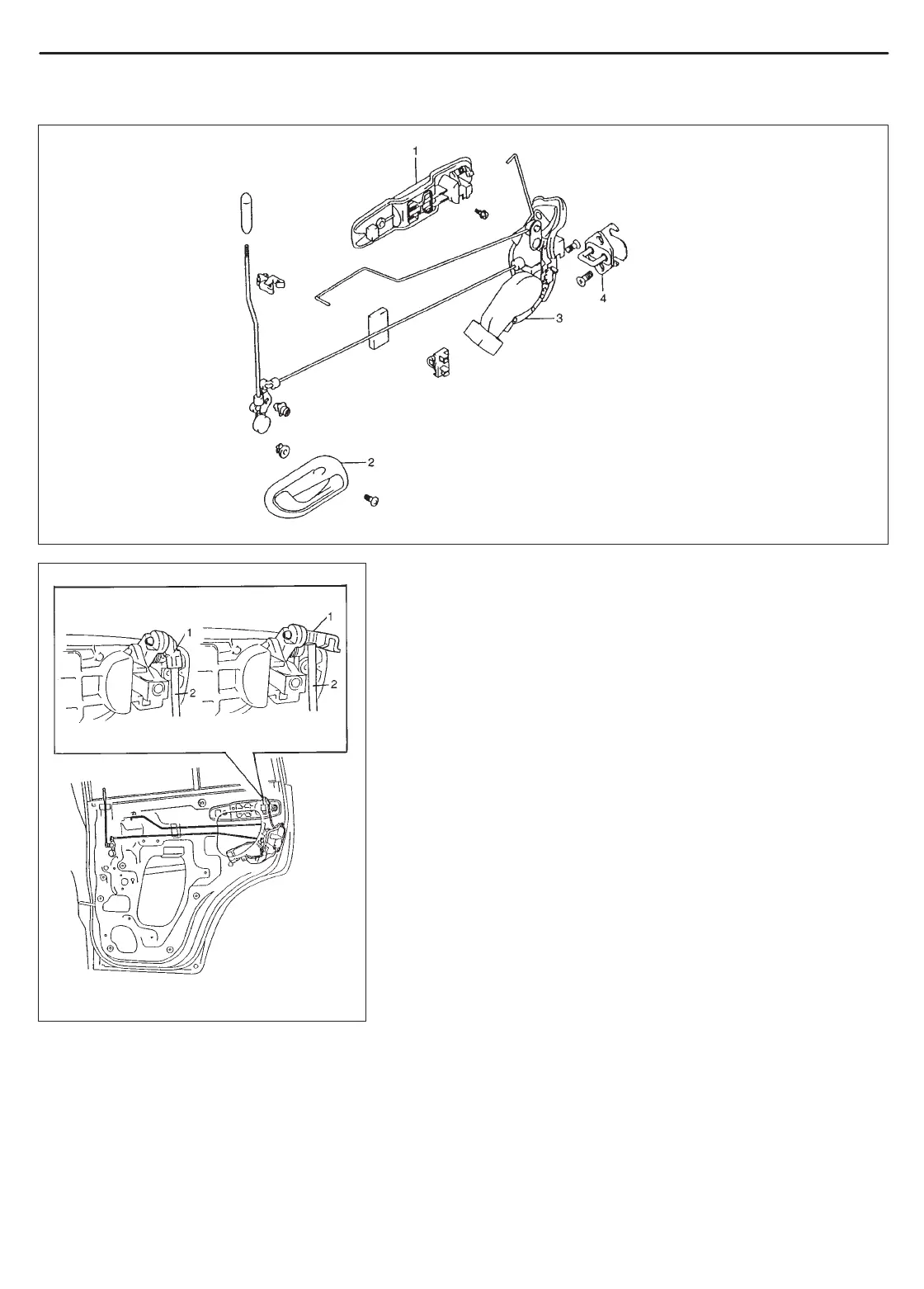

1. Outside handle
2. Inside handle bezel
3. Latch assembly
4. Latch striker
1. Door opening rod pin
2. Door opening control rod
REAR DOOR LOCK ASSEMBLY
REMOVAL
1) Remove door trim and door sealing cover, refer to steps 1) to 4)
of REAR DOOR GLASS REMOVAL in this section.
2) Remove door opening control rod and door lock control rod.
3) Remove lock assembly.
INSTALLATION
Reverse removal sequence to install rear door lock, noting points
mentioned in “FRONT DOOR LOCK ASSEMBLY”.
