YH4
GRAND
VITARA

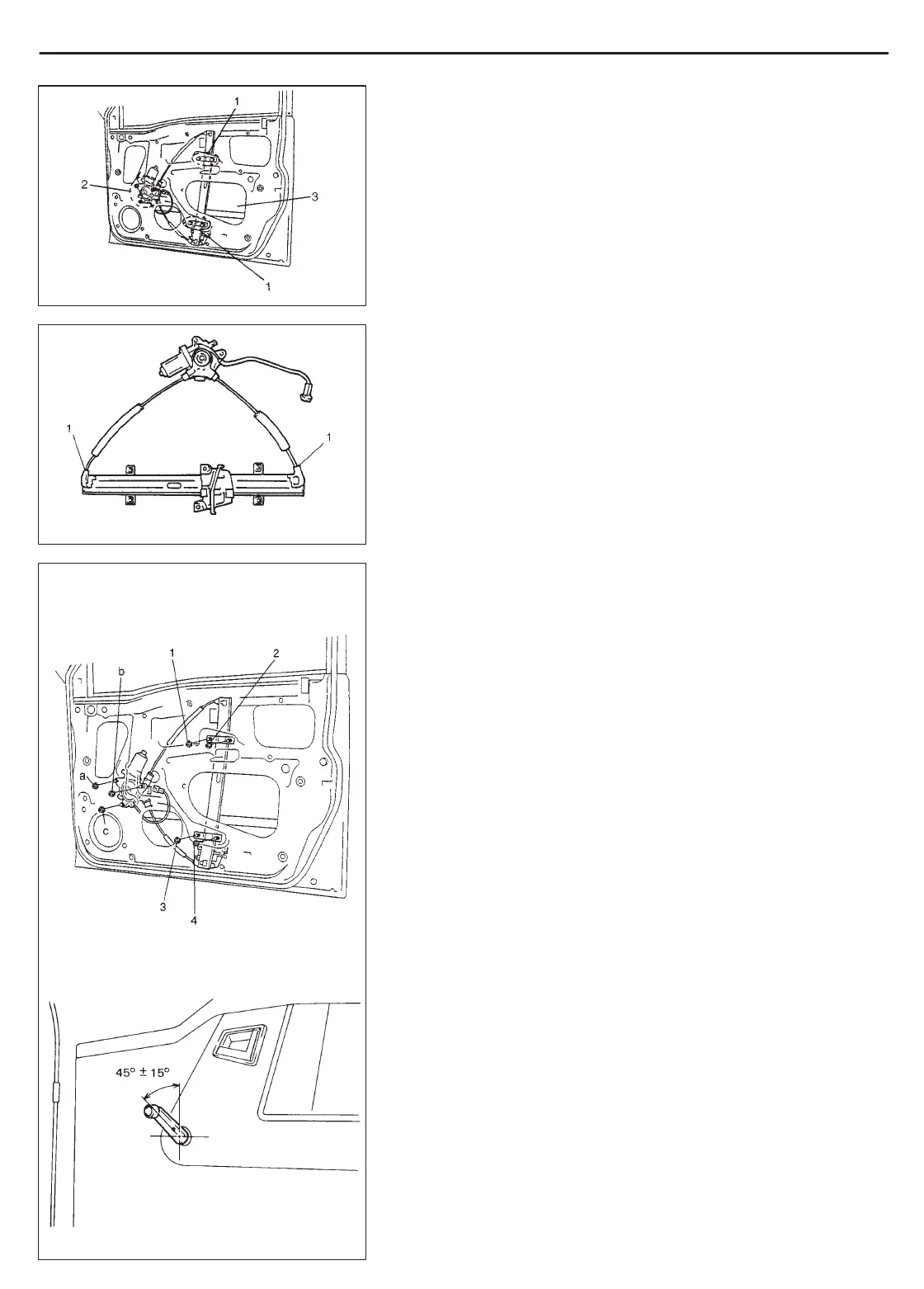

1. Window regulator lubrication point
1. Regulator mounting bolts
2. Regulator motor mounting nuts
3. Hole
BODY SERVICE 9-5
FRONT DOOR WINDOW REGULATOR
REMOVAL
1) Remove door glass, referring to steps 1) to 9) of FRONT DOOR
GLASS REMOVAL in this section.
2) Disconnect power window motor lead wire at coupler and loosen
clamp.
3) Loosen regulator mounting bolts, nuts and take out regulator
through hole as shown in left figure.
INSPECTION
1) Check regulator sliding and rotating parts for greasing.
2) Check rollers for wear and damage.
3) Check wire for damage.
INSTALLATION
Reverse removal procedure to install window regulator noting the
following point.
Tighten bolts and nuts according to the order (a, b, c/1, 2, 3, 4)
shown in left figure.
When installing glass, check that the top part of the glass contacts
the glass run evenly and that the glass moves up and down
smoothly.
If the glass is tilted with respect to the glass run, make a fine ad-
justment with the screws.
Install door window regulator handle (if equipped) so that it has
an angle as shown in figure when glass is fully closed.
