YH4
GRAND
VITARA

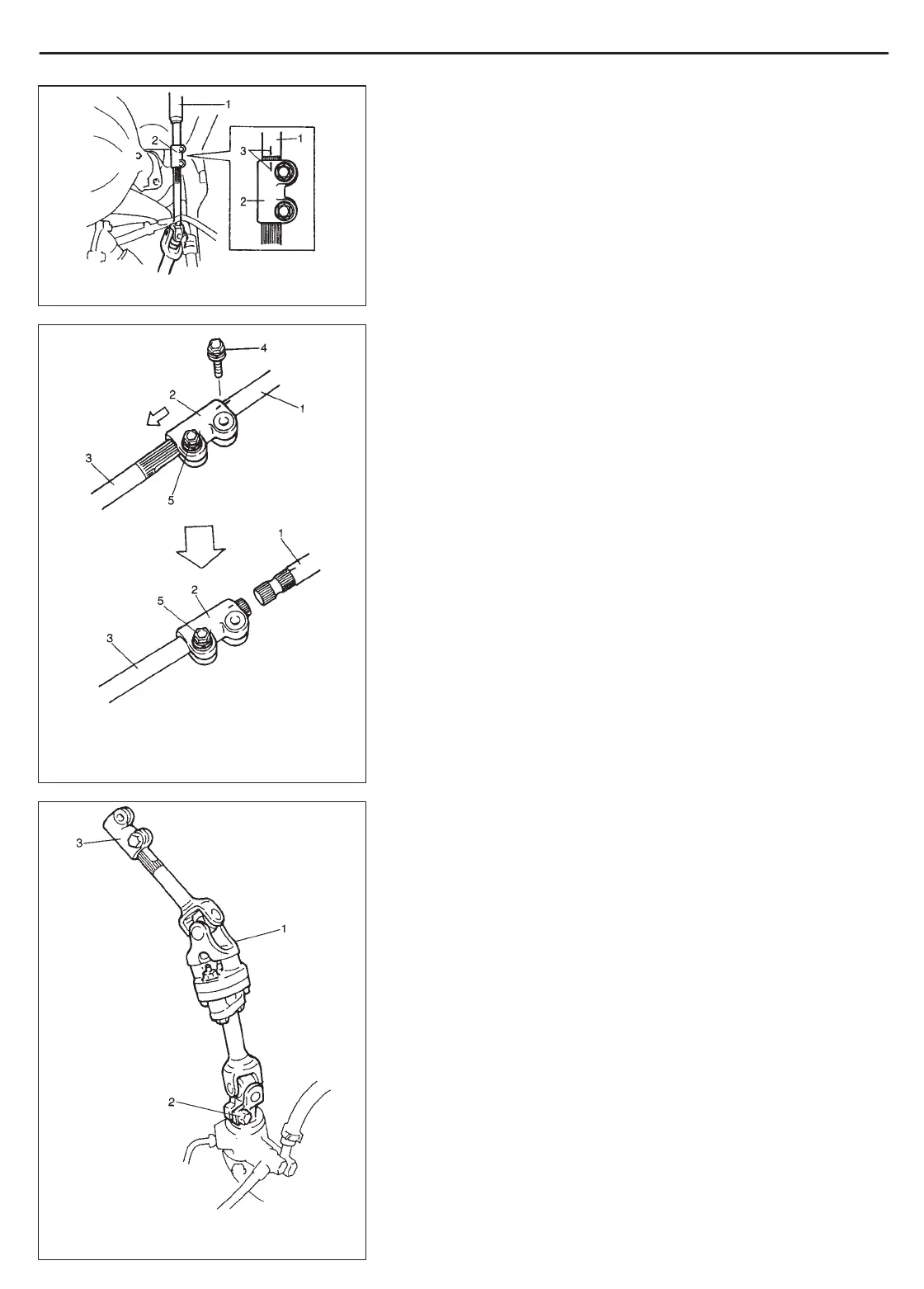

1. Steering column assembly
2. Steering shaft joint
3. Marks
1. Steering column assembly
2. Steering shaft joint
3. Steering lower shaft assembly
4. Bolt (column side)
5. Bolt (lower shaft assembly side)
1. Steering lower shaft assembly
2. Steering lower shaft assembly lower joint bolt
3. Steering shaft joint
STEERING WHEEL AND COLUMN 3C-11
STEERING LOWER SHAFT ASSEMBLY
REMOVAL
1) Turn steering wheel so that vehicle’s front tires are at straight-
ahead position.
2) Turn ignition switch to “LOCK” position and remove key.
3) Make alignment marks on shaft joint and shaft (column side) for
a guide during reinstallation.
4) After removing bolt on column side of shaft joint and loosening
bolt on its lower shaft assembly side, move shaft joint to lower
shaft assembly side (in arrow direction in figure).
5) Make alignment marks on lower shaft assembly lower joint and
pinion shaft for a guide during reinstallation.
6) Remove lower shaft assembly lower joint bolt and then remove
lower shaft assembly.
7) Remove shaft joint bolt (lower shaft assembly side) from shaft
joint and then remove shaft joint from lower shaft assembly.
To Next Page
