YH4
GRAND
VITARA

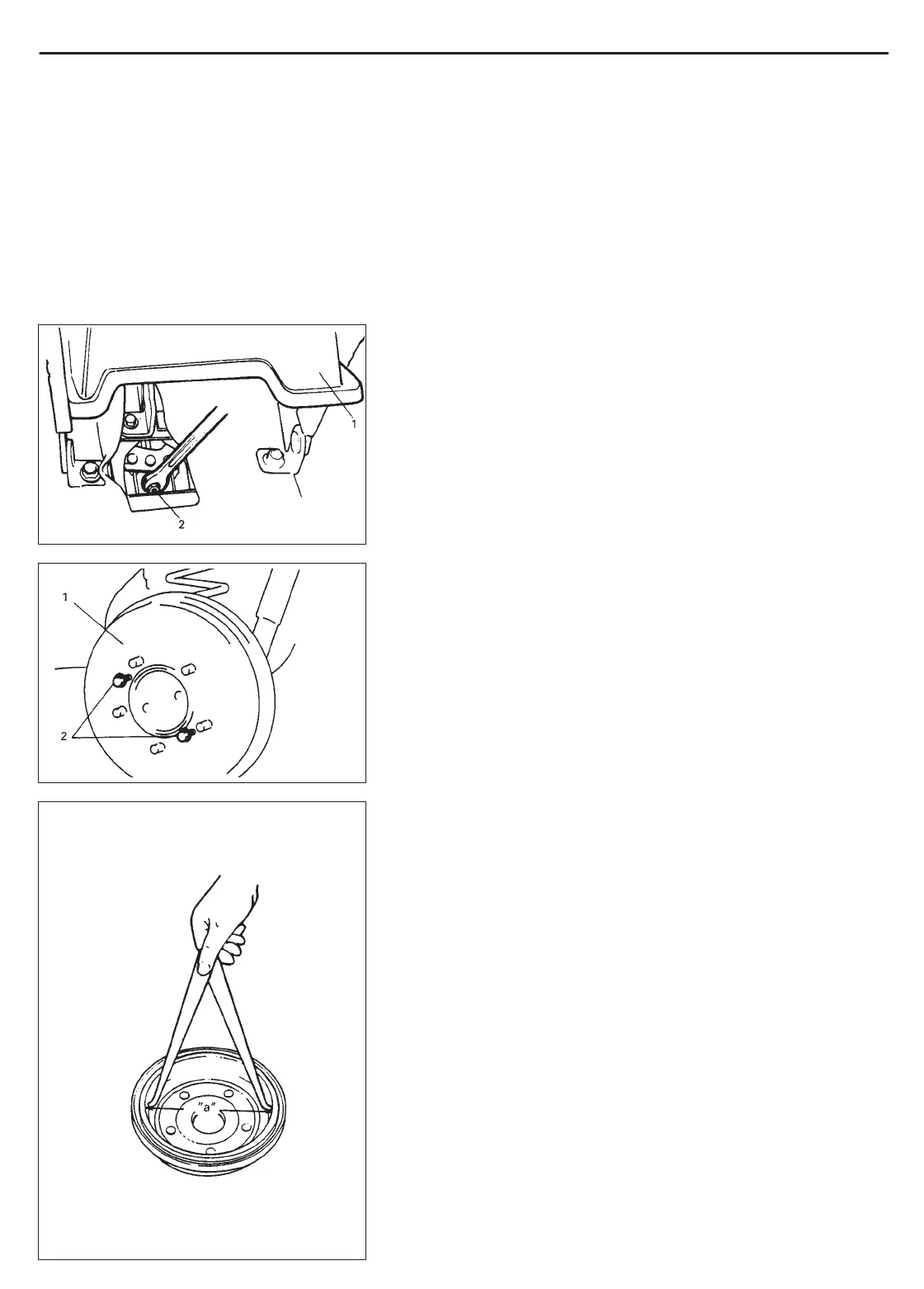

1. Parking brake lever cover
2. Brake cable locking nut
1. Brake drum
2. 8 mm bolts
PARKING AND REAR BRAKE 5C-7
BRAKE DRUM
REMOVAL
1) Hoist vehicle and pull up parking brake lever.
2) Remove wheel.
3) Release parking brake lever.
4) Remove rear center console box screws and with rear part of
rear center console box lifted a little, loosen parking brake cable
locking nut.
5) Remove brake drum by using 8 mm bolts (2 pcs.).
INSPECTION
Brake Drum
Inspect drum for cleanliness. Check wear of its braking surface by
measuring its inside diameter.
Inside diameter “a”
Standard: 220 mm (8.66 in.)
Service Limit: 222 mm (8.74 in.)
Whenever brake drums are removed, they should be thoroughly
cleaned and inspected for cracks, scores, deep grooves.
To Next Page
