YH4
GRAND
VITARA

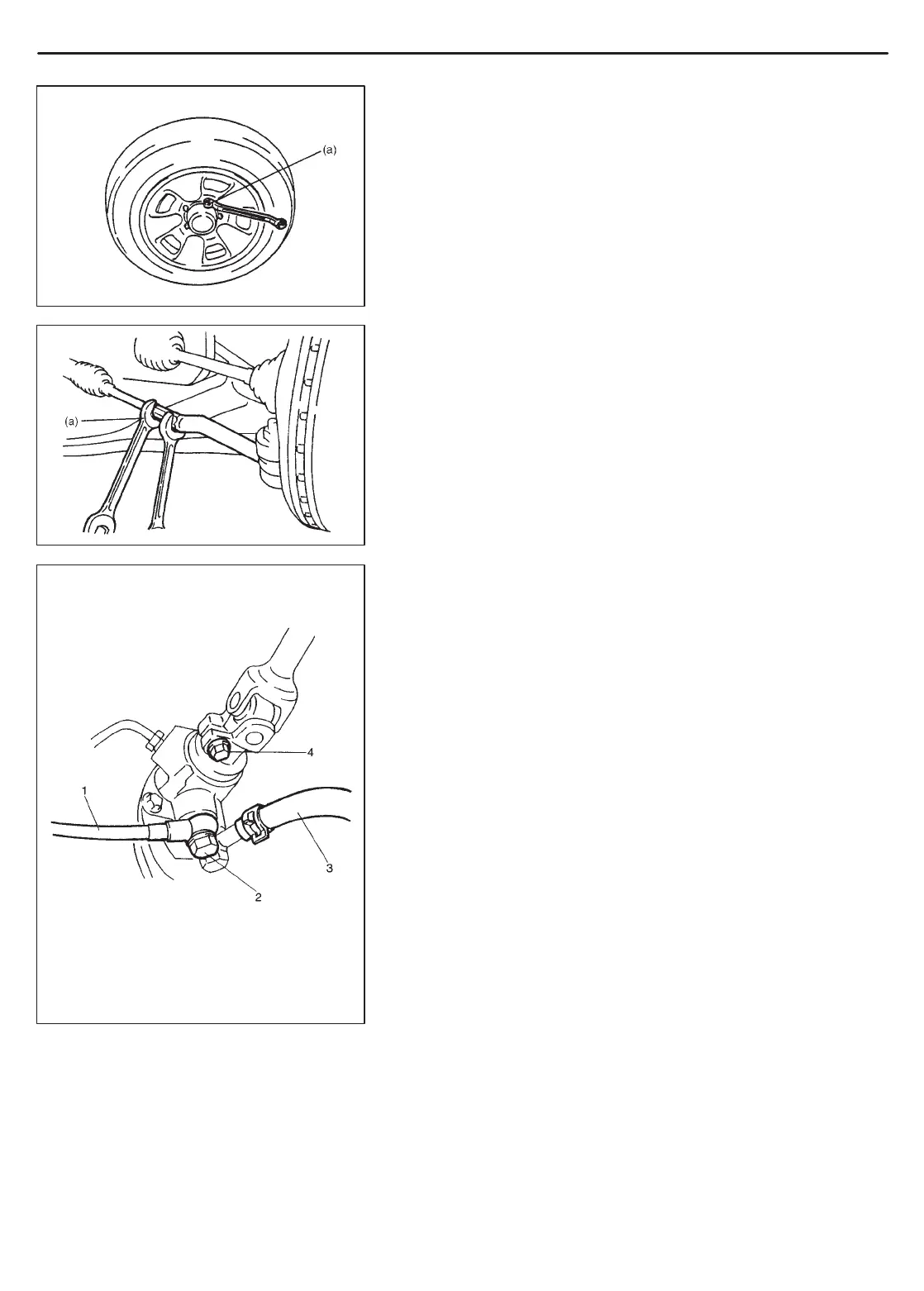

1. High pressure pipe
2. Union bolt
3. Low pressure hose
4. Steering lower shaft bolt
3B1-14 POWER STEERING (P/S) SYSTEM
3) After installing wheels, lower vehicle and tighten wheel nuts to
specified torque.
Tightening Torque
(a): 100 N
.
m (10.0 kg-m, 72.5 lb-ft)
4) Check that proper amount of toe-in is obtained by referring to
“FRONT WHEEL ALIGNMENT”.
5) After confirming proper amount of toe-in, tighten tie-rod end lock
nut to specified torque.
Tightening Torque
(a): 65 N
.
m (6.5 kg-m, 47.0 lb-ft)
POWER STEERING GEAR BOX
ASSEMBLY
REMOVAL
1) Take out fluid in P/S fluid reservoir with syringe or such.
2) Disconnect high pressure pipe from steering gear box by remov-
ing union bolt.
NOTE:
As fluid flows out of disconnected joints, put a receptacle
under joints or a plug to pipe.
3) Disconnect low pressure hose from steering gear box.
NOTE:
As fluid flows out of disconnected joints, put a receptacle
under joints or a plug to hose.
4) Remove steering lower shaft bolt.
5) Hoist vehicle and remove both right and left wheels.
6) Disconnect both right and left tie rod ends from knuckle, refer to
steps 2) to 3) of “TIE-ROD END REMOVAL” in this section.
To Next Page
