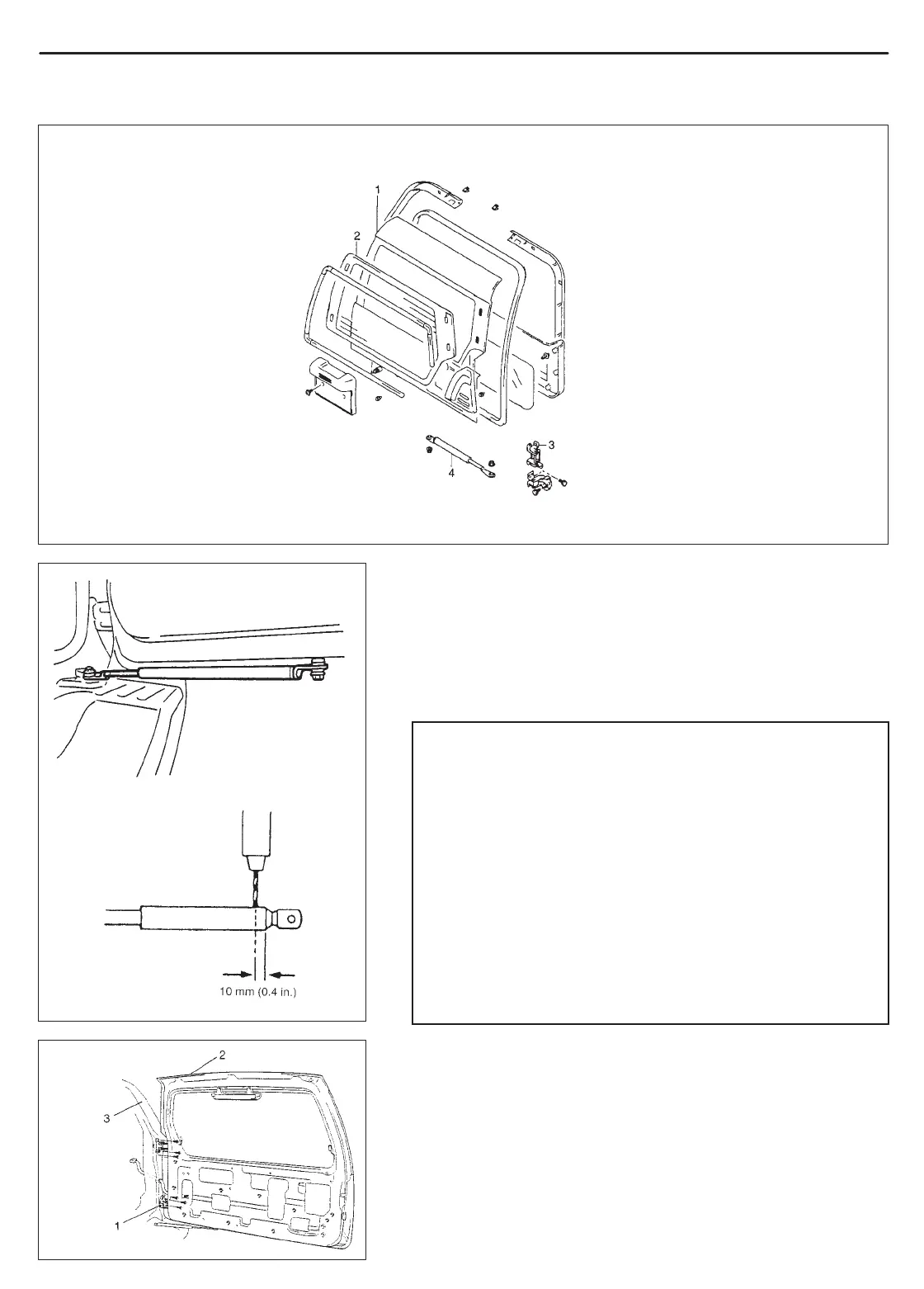

1. Back door panel assy
2. Back door window glass
3. Back door hinge
4. Back door/Rear gate balancer unit
1. Back door hinge
2. Back door
3. Body
BACK DOOR/REAR GATE ASSEMBLY
REMOVAL
1) Remove back door trim, and door/rear gate sealing cover, refer
to steps 1) to 4) of BACK DOOR LOCK ASSEMBLY in this sec-
tion.
2) Remove wire harness connector inside the back door/rear gate.
3) Remove back door/rear gate balancer (first at its door-side and
next at its body-side), as shown.
WARNING:
Handling of Back Door/Rear Gate Balancer (Damper)
Do not disassemble balancer because its cylinder is
filled with gas.
The gas itself is harmless but it may issue out of the
hole together with chips generated by the drill.
Therefore, be sure to wear goggle.
When discarding removed back door/rear gate balanc-
er (damper), use a 2 to 3 mm (0.08 to 0.12 in.) drill to
make a hole as shown.
Handle balancer carefully. Do not scar or scratch ex-
posed surface of its piston rod, and never allow any
paint or oil to stick to its surface.
Do not turn piston rod with balancer fully extended.
5) Remove back door/rear gate hinge bolts and back door/rear
gate.
To Next Page
