YH4
GRAND
VITARA
8G-30 IMMOBILIZER CONTROL SYSTEM (IF EQUIPPED)

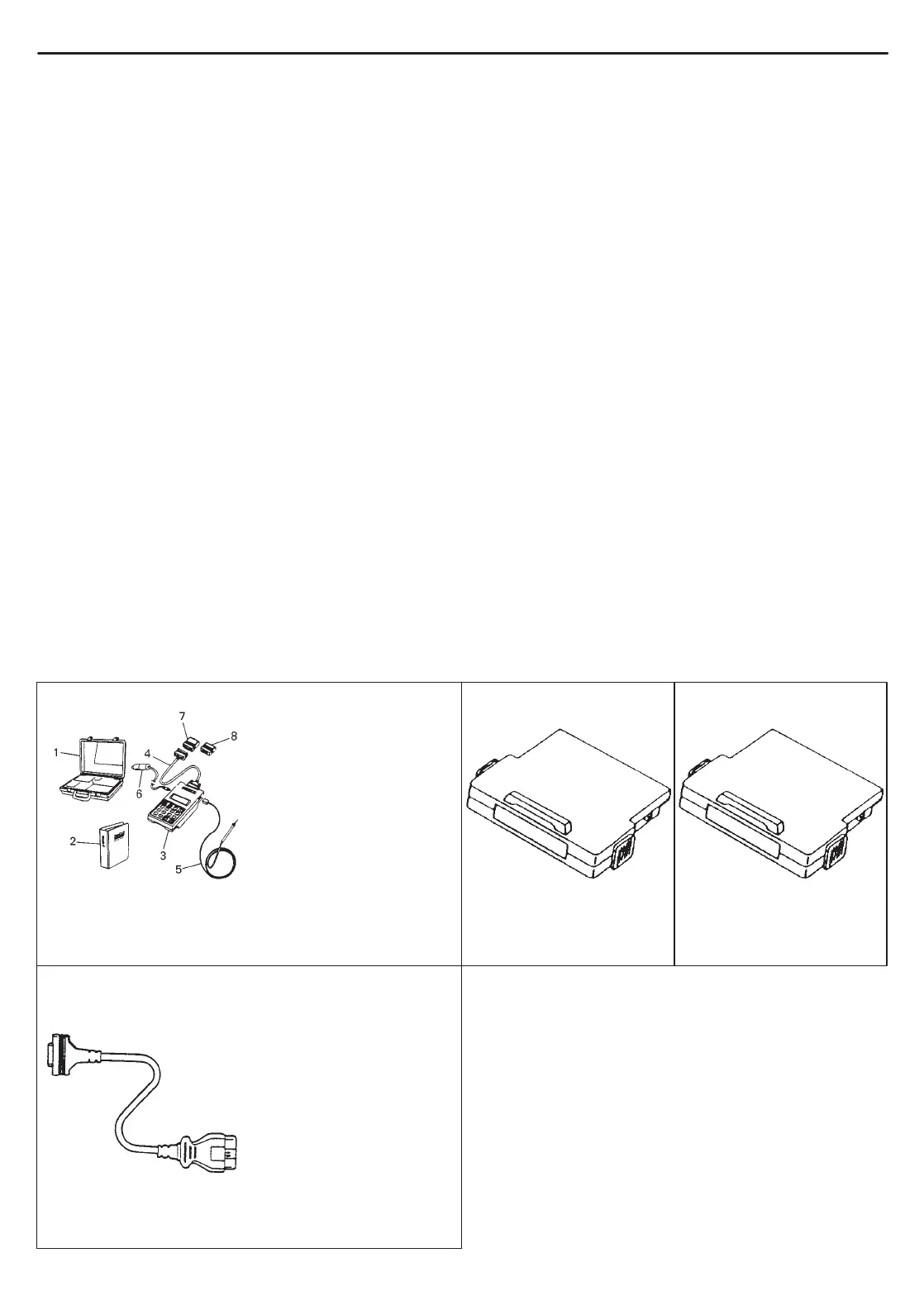

09931-76030
16/14 pin DLC cable
09931-76011
Suzuki scan tool (Tech 1A kit)
1. Storage case
2. Operator’s manual
3. Tech 1A
4. DLC cable
(14/26 pin, 09931-76040)
5. Test lead/probe
6. Power source cable
7. DLC cable adapter
8. Self-test adapter
Immobilizer cartridge of
version 1.1 or more
NOTE:
Use this cable only with im-
mobilizer cartridge of ver-
sion 1.1 or more.
Use of this cable with 96
immobilizer cartridge will
disable 96 immobilizer car-
tridge from operating prop-
erly.
Mass storage cartridge of
version1.5 or more
PROCEDURE AFTER ECM/PCM
REPLACEMENT
When ECM/PCM was replaced, including when replaced because
rechecking by using a known-good ECM/PCM was necessary dur-
ing trouble diagnosis, register ECM/Immobilizer Control Module
code in ECM/PCM by performing following procedure.
1) Perform Steps 1) and 2) described in “How to register ignition
key” section. And then turn ignition switch ON.
2) Using TECH1, register ECM/Immobilizer Control Module code in
ECM/PCM by executing “RECORD ECU (RECORD ECM/PCM/
ICM)” command in SELECT MODE menu.
NOTE:
For operation procedure of Suzuki scan tool, refer to TECH1
operator’s manual.
3) [Vehicle equipped with monitor coupler]
Make sure that malfunction indicator lamp lights when ignition
switch is turned OFF once and then ON.
[Vehicle not equipped with monitor coupler]
Make sure that immobilizer indicator lamp lights when ignition
switch is turned OFF once and then ON.
SPECIAL TOOLS
