YH4
GRAND
VITARA
AIR CONDITIONING (OPTIONAL) 1B-53

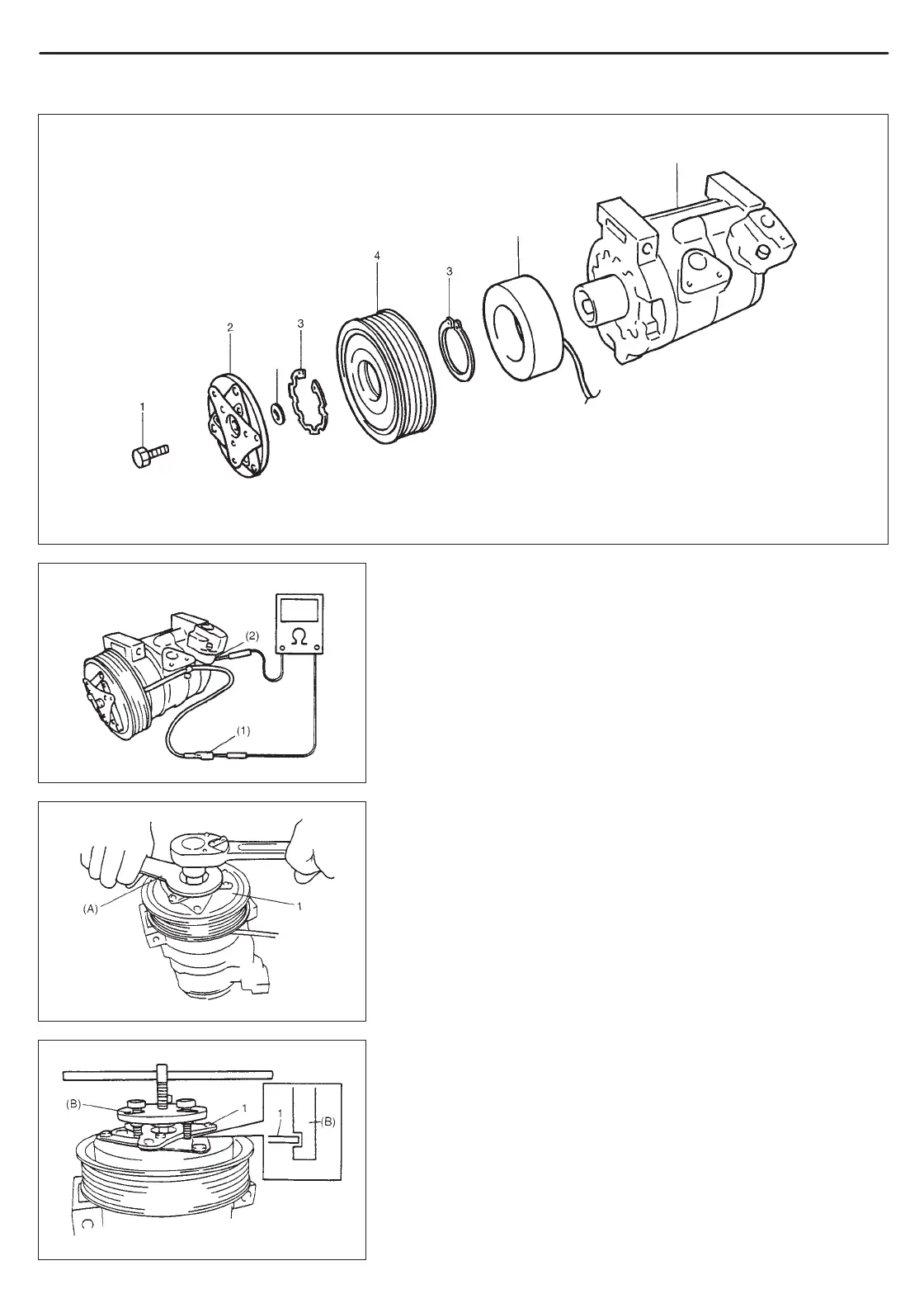

1. Clutch plate bolt
2. Clutch plate
3. Circlip
4. Clutch pulley
5. Shim
6. Clutch coil
7. Compressor
5
6
7
MAGNET CLUTCH ASSEMBLY (FOR DENSO)
INSPECTION
D Inspect clutch plate and clutch pulley for signs of oil.
D Check clutch pulley for noise and grease leakage.
D Using an ohmmeter, measure resistance of clutch coil between
clutch lead wire (1) and compressor body (2).
If measured resistance is not within tolerance, replace magnet
clutch assembly.
Standard resistance: 3.5 – 5.0 at 20_C, 68_F
REMOVAL
1) Remove compressor assembly from vehicle. Refer to “COM-
PRESSOR ASSEMBLY” in this section.
2) Fix clutch plate (1) with special tool (A) and remove clutch plate
bolt.
Special Tool
(A): 09991-06020
NOTE:
Do not reuse clutch plate bolt.
3) Using special tool (B), remove clutch plate (1).
Special Tool
(B): 09991-06030
