YH4

GRAND

VITARA

J20 engine

H25 engine

G16 engine

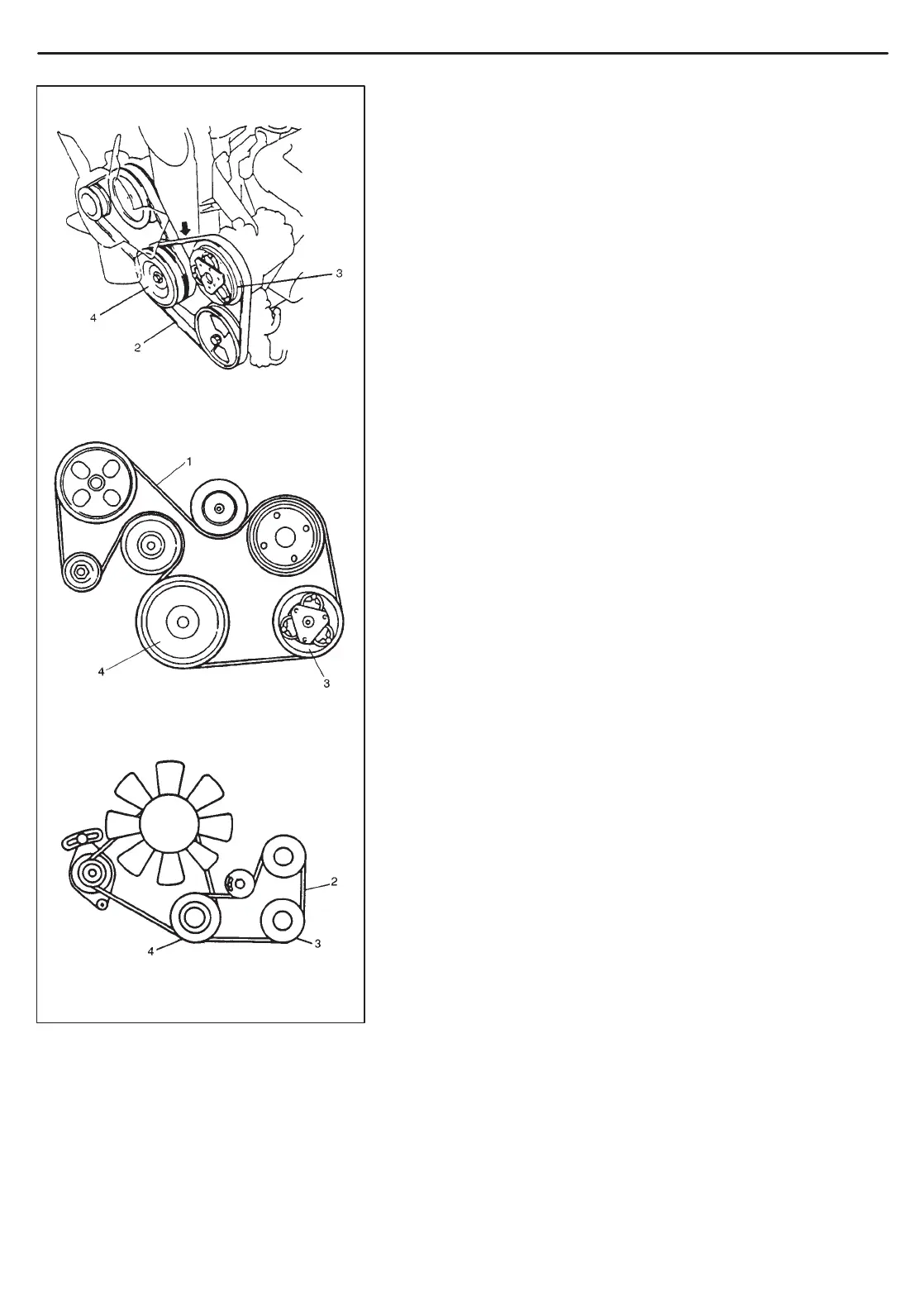

1. Generator belt

2. Compressor drive belt

3. Compressor pulley

4. Crankshaft pulley

1B-22 AIR CONDITIONING (OPTIONAL)

DRIVE BELT

INSPECTION

For G16 and H25 engines

Refer to Section 3B1 for details.

For J20 engine

Refer to Section 6H for details.
