YH4
GRAND
VITARA
7A1
MANUAL TRANSMISSION (TYPE 2) 7A1-1
TYPE 2
GENERAL DESCRIPTION 7A1-1. . . . . . . . . . . . . .
DIAGNOSIS 7A1-2. . . . . . . . . . . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 7A1-3. . . . . . . . . . . . . . . .
Gear Oil 7A1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift Control Levers 7A1-4. . . . . . . . . . . . . . . . . . .
Switches 7A1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Rear Mounting 7A1-4. . . . . . . . . . . . . . . .
Dismounting/Remounting of
Trans. Unit 7A1-4. . . . . . . . . . . . . . . . . . . . . . . . .
UNIT REPAIR 7A1-4. . . . . . . . . . . . . . . . . . . . . . . . .
TIGHTENING TORQUE
SPECIFICATIONS 7A1-5. . . . . . . . . . . . . . . . . . . .
REQUIRED SERVICE MATERIALS 7A1-5. . . . . .

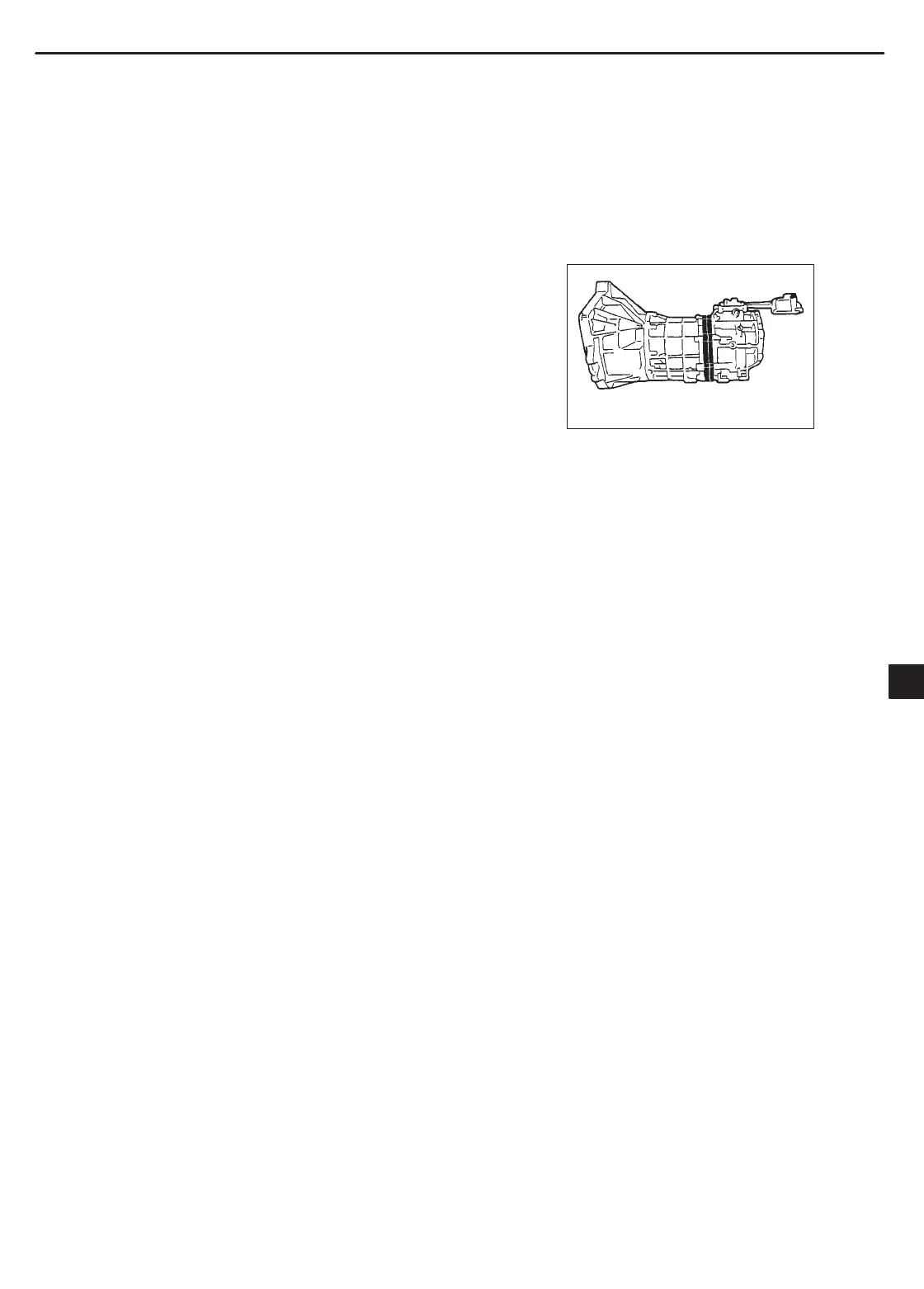

The manual transmission consists of the input shaft,
main shaft, counter shaft and reverse gear which are
installed in the aluminum and castings cases. Its
gears are of forward five speeds in synchro mesh and
reverse one speed in sliding idler gear arrangement
system.
The main shaft gears are held by the needle bear-
ings and on them the synchronizer rings and syn-
chronizer sleeve & hubs are assembled.
The gear shift lever case is located at the upper be-
hind the transmission case and has a cam which pre-
vents direct gear shift from the 5th speed gear to the
reverse gear.
As the aluminum and castings cases are sealed with
liquid type gasket, it is necessary to use genuine seal-
ant or its equivalent on its mating surfaces when reas-
sembling them. Also, the case fastening bolts must be
tightened to specified torque by means of the torque
wrench and tightening over or below the specified
torque should be avoided.
The description under ON-VEHICLE SERVICE in this
section covers the transfer partially which is next to
the transmission as well, but their gear boxes are in-
dependent and each of them has its own drain and
level/filler plugs for the oil change or the level check.
For the repair procedure of the transfer unit, refer to
Section 7D.
SECTION 7A1
MANUAL TRANSMISSION
(TYPE 2)
CONTENTS
GENERAL DESCRIPTION
