1B-56 AIR CONDITIONING (OPTIONAL)

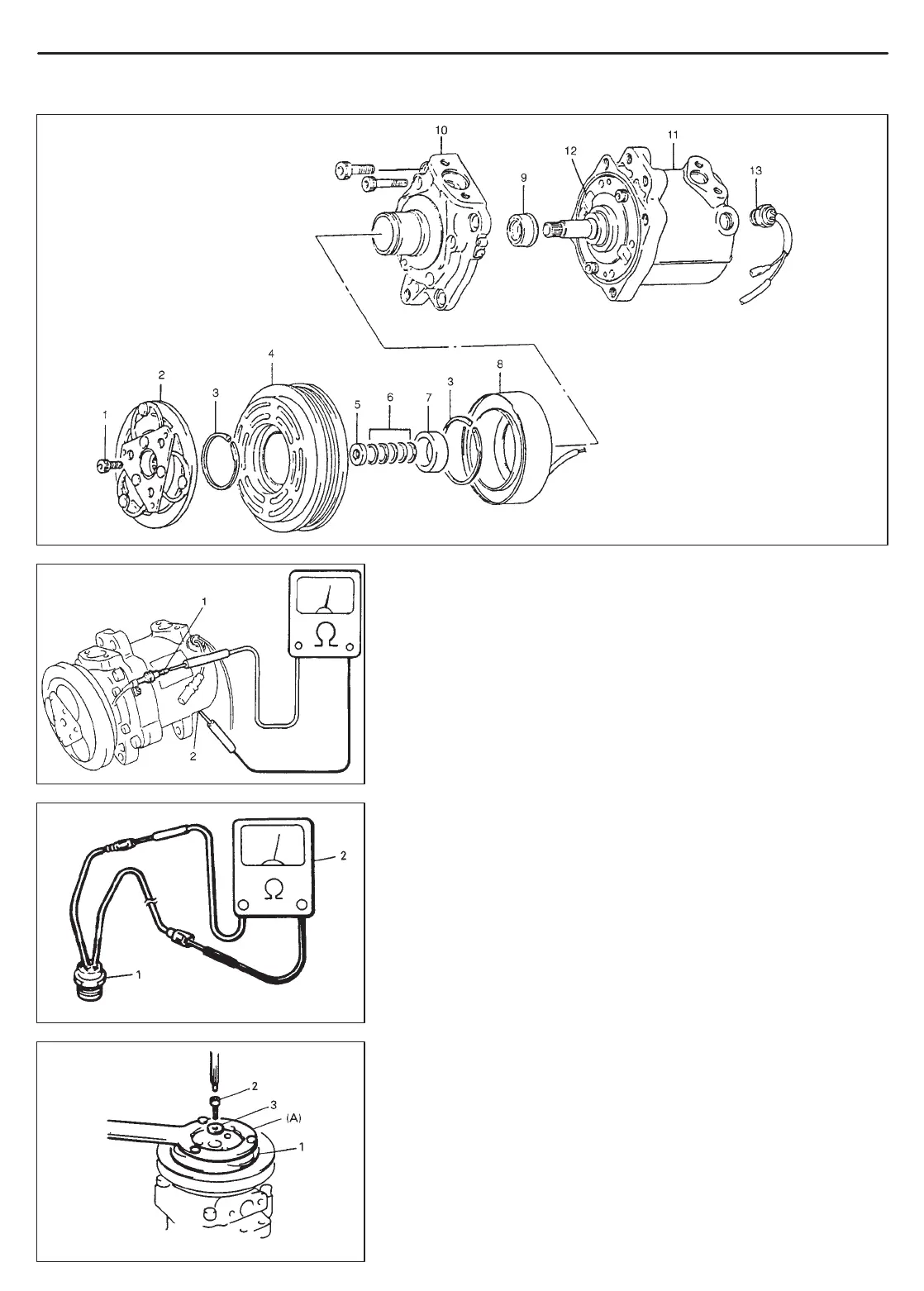

1. Clutch plate bolt
2. Clutch plate
3. Circlip
4. Clutch pulley
5. Washer
6. Shim
7. Oil felt ring
8. Clutch coil
9. Lip type seal
10. Compressor front head
11. Compressor body component
12. O-ring
13. Compressor thermal switch
3. Washer
(if equipped)
1. Thermal switch
2. Ohmmeter
MAGNET CLUTCH ASSEMBLY (FOR SEIKO SEIKI)
INSPECTION
MAGNET CLUTCH
D Inspect clutch plate and clutch pulley for signs of oil.
D Check clutch pulley bearings for noise and grease leakage.
D Using and ohmmeter, measure resistance of clutch coil between
clutch coil lead wire (1) and compressor body.
If measured resistance is not within tolerance, replace coil.
Standard resistance: 2.5 – 4.5 at 20_C, 68_F
COMPRESSOR THERMAL SWITCH
Use an ohmmeter to check thermal switch for continuity. If there is
no continuity, replace it.
REMOVAL
1) Remove compressor assembly from vehicle. Refer to COM-
PRESSOR ASSEMBLY in this section.
2) Fix clutch plate (1) with special tool (A) and remove clutch plate
bolt (2).
Special Tool
(A): 09991-06020
NOTE:
Do not reuse armature plate nut.
