YH4
GRAND
VITARA
ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL) 5E1-33

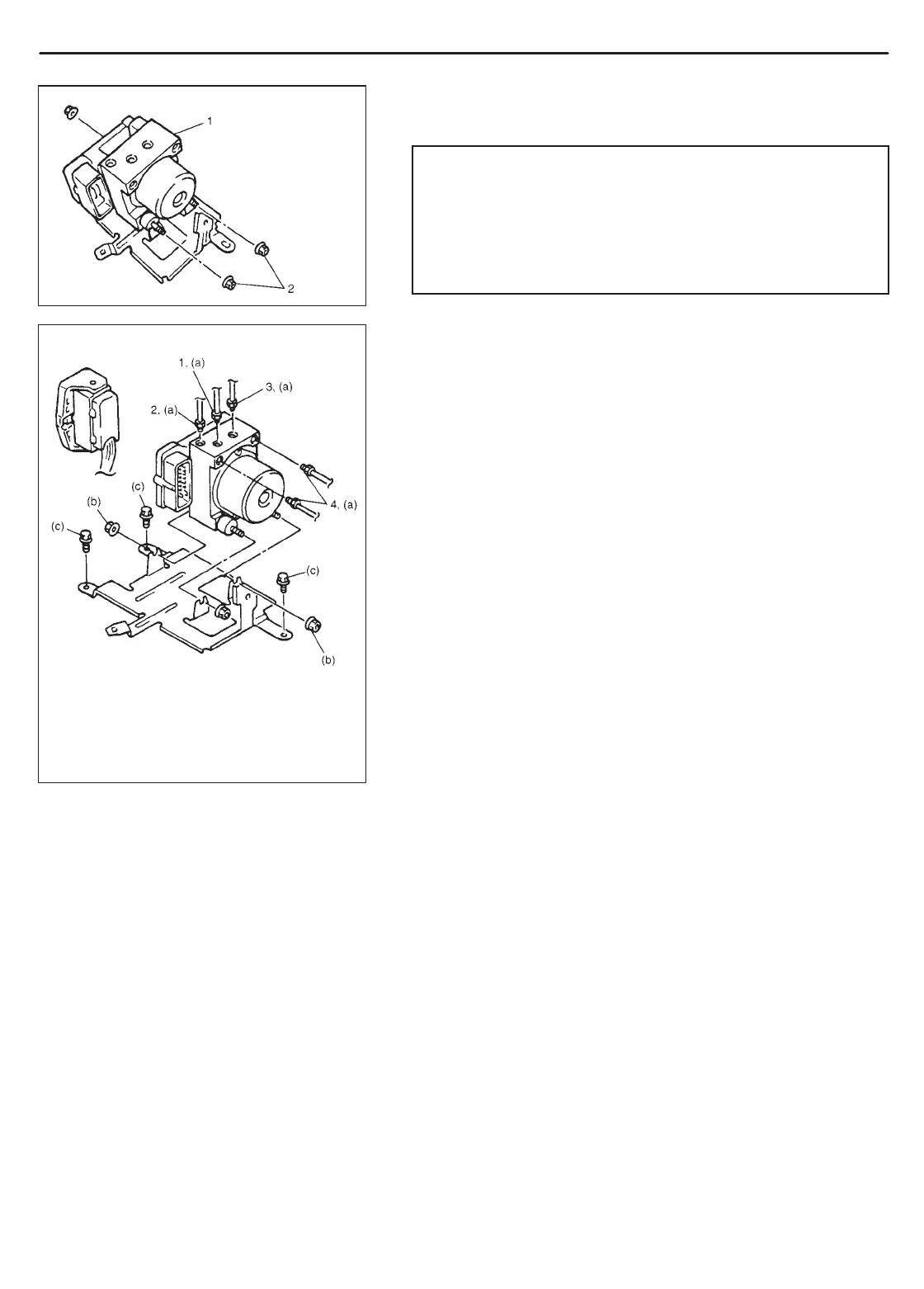

1. ABS hydraulic unit/
control module
assembly
2. Nut
1. To left-front
2. To right-front
3. To rear
4. From master cylinder
4) Remove three nuts and take out ABS hydraulic unit/control
module assembly from bracket.
CAUTION:
Do not give an impact to hydraulic unit.
Use care not to allow dust to enter hydraulic unit.
Do not place hydraulic unit on its side or upside down.
Handling it in inappropriate way will affect its original
performance.
INSTALLATION
1) Install hydraulic unit by reversing removal procedure.
Tightening Torque
(a): 16 N
.
m (1.6 kg-m, 12.0 lb-ft)
(b): 21 N
.
m (2.1 kg-m, 15.5 lb-ft)
(c): 10 N
.
m (1.0 kg-m, 7.5 lb-ft)
2) Bleed air from brake system. Refer to “BLEEDING BRAKES” in
Section 5.
3) Check each installed part for fluid leakage and perform hydraulic
unit operation check.
To Next Page
