YH4
GRAND
VITARA
DIFFERENTIAL (FRONT) 7E-13

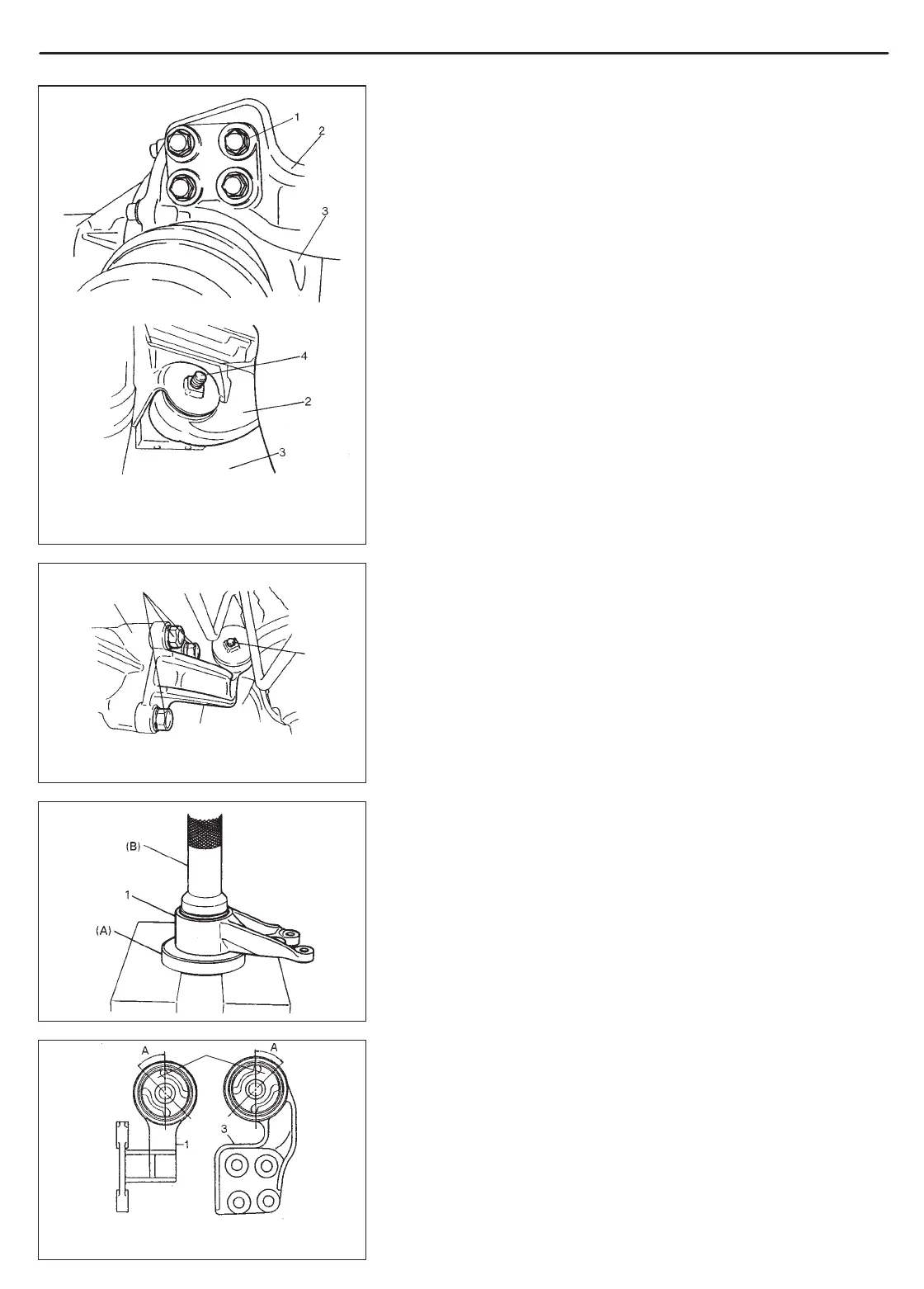

1. Mounting bracket bolt
2. Mounting bracket R
3. Differential housing
4. Mounting front bolt
1. Differential housing
2. Mounting front bolt
3. Mounting bracket L
4. Mounting bracket bolt
1. Mounting bracket
1. Mounting bracket L
2. Bush
3. Mounting bracket R
A: Slit alignment 45_
4
2
3
1
2
REMOVAL AND INSTALLATION
Differential Mountings
1) Lift up vehicle and turn steering wheel all way to the right.
2) Separate mounting bracket R from differential housing by re-
moving bolts from its lower part.
3) Remove mounting bracket R by removing mounting front bolt
from its upper part.
4) Remove mounting bracket L by removing upper and lower fas-
tening bolts.
5) Check conditions of each bush. If it is damaged or deteriorated,
drive it out with special tools and press for replacement.
Special Tool
(A): 09951-26010
(B): 09951-16080
6) Position slit in each bush as shown when press-fitting it.
To Next Page
